Smartly sharp in 4K. Reliably guards with more.

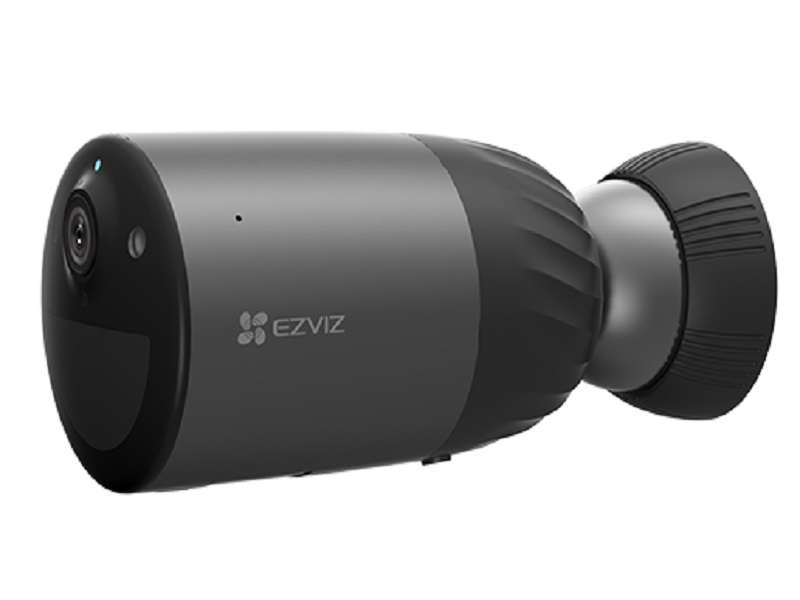

Part of EZVIZ`s next-generation 4K camera family, the new BC1c 4K is ready to elevate the safety of your outdoor space with impressive vision, powerful functionality, great durability and flexible installation. It has enhanced detection capability, along with EZVIZ`s unique Always-On Protection Mode, to keep your property safely watched around the clock. It`s effortless to install and use, and more sustainable in the long term when compared to its hardwired counterparts.
See beyond with 4K Ultra HD

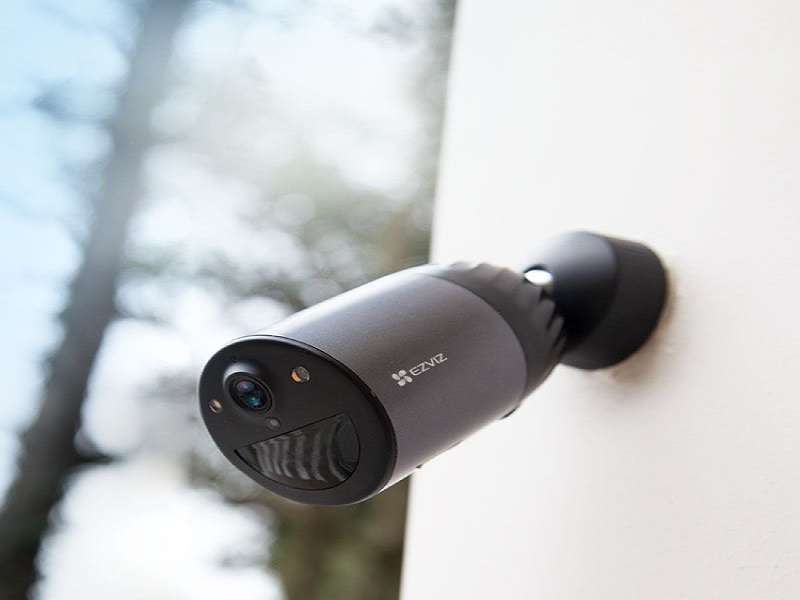

The Ultra HD video is ready to bring even the smallest details to life and better secure what`s important to you. Designed to watch over large outdoor area, the BC1c is powerful to monitor even complex activities in the garden, enhance driveway security or protect your garage.
Colorful details matter, day and night

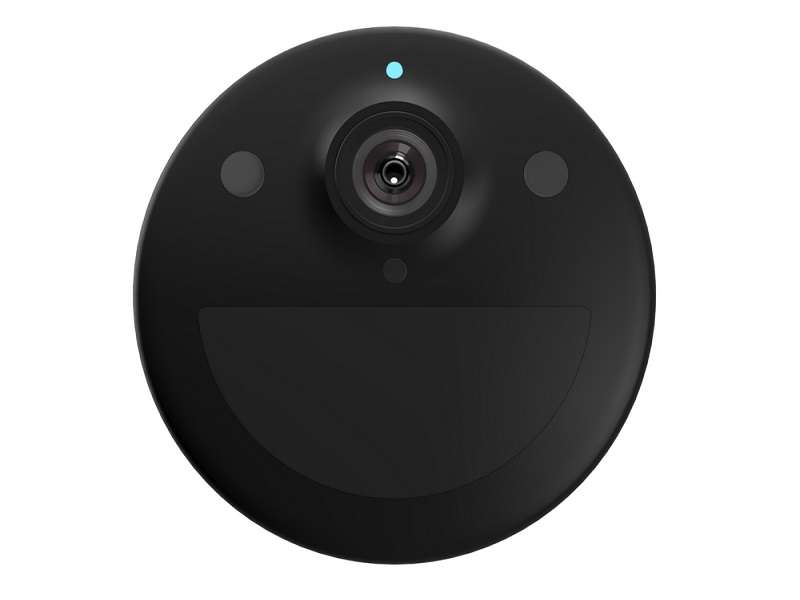

Another addition to make the camera unparalleled in its vision is its F1.6 aperture. It ensures consistently bright, vivid footage in varying lighting conditions. You can also enable the built-in spotlight in the total darkness to enjoy colorful night vision.
Specifications
Model CS-BC1c-R100-2F8WFL
Camera
Image Sensor 1/2.7 8-Megapixel Progressive Scan CMOS Sensor
Minimum Illumination 0.01 Lux @(F1.6, AGC ON), 0 Lux with IR
Shutter Speed Self-adaptive shutter
Lens 2.8mm@ F1.6; 135`b0 (Diagonal), 113`b0 (Horizontal), 60`b0 (Vertical)
Day & Night IR-Cut filter with auto-switching
DNR 3D DNR
Night Vision IR Distance:15m, Color Night Vision Distance:15m
Video & Audio
Max. Resolution 3840*2160/4K/8MP
Frame Rate 15fps. Self-Adaptive during network transmission
Video Compression H.265 / H.264
Video Bit Rate Ultra HD; Quad HD; Full HD; Hi-Def Adaptive bit rate.
Audio Bit Rate Self-Adaptive
Max. Bitrate 4 Mbps
Network
Bluetooth Supports
Wi-Fi Standard IEEE802.11b, 802.11g, 802.11n, 802.11ax
Frequency Range 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth Supports 20 MHz
Security WPA-PSK/WPA2-PSK, WPA3-Personal
Transmission Rate 11b: 11Mbps, 11g: 54Mbps, 11n: 72Mbps, 11ax: 114Mbps
Wi-Fi Pairing AP pairing
Protocol EZVIZ cloud proprietary protocol
Interface Protocol EZVIZ cloud proprietary protocol
Minimum Network Requirement 8Mbps
Function
Smart Alarm AI-Powered Human Shape Detection, AI-Powered Vehicle Detection
Two-way Talk Supports
General Function Anti-Flicker, Heart Beat, Password Protection, Watermark
General
Operating Conditions -20 `b0C to 50 `b0C (-4 `b0F to 122 `b0F ), humidity 95% or less (Non-condensing)
IP Grade IP65
Power Supply DC 5V/2A (Compatible power adapter needs to be purchased separately)

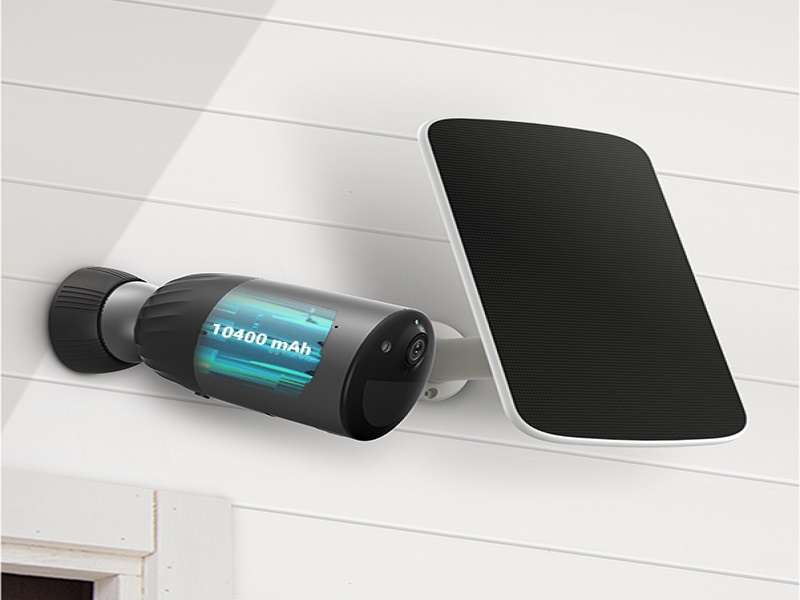

Battery Capacity 10400 mAh
Power Consumption Max. 10W
Product Dimensions 149.33 x 62.95 x 62.95 mm
Packaging Dimensions 103 x 103 x 186 mm
Weight
Net Weight: 348g
With Package: 671g
In the box
In the box - EZVIZ BC1c Camera
- Magnetic Base
- Screw Base
- USB Cable
- Pin
- Drill Template
- Screw Kit
- Regulatory Information
- Quick Start Guide
