Full HD 1080p
Smart Night Vision with Smart IR
Motorized Pan and Tilt
Motion Detection
360 Degrees Visual Coverage

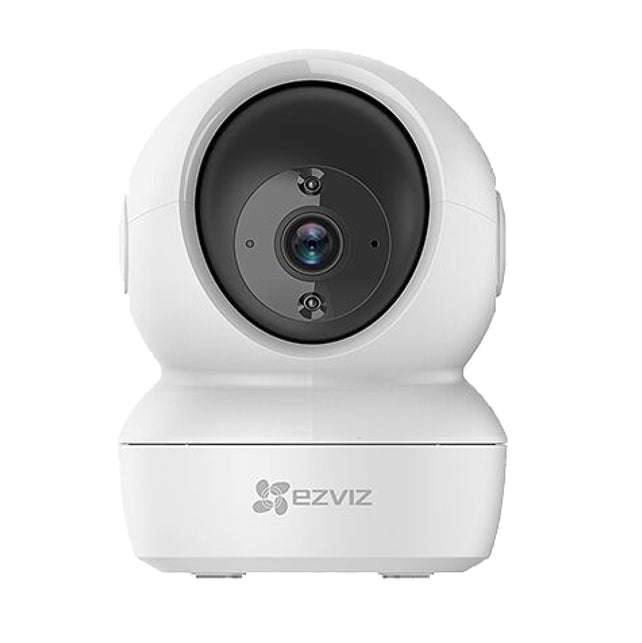

Smart Wi-Fi Pan & Tilt Camera
The C6N from EZVIZ comes equipped with a Smart IR function, which uses advanced infrared (IR) lighting to capture more details in dim light. With its 360-degree ?eld of view and smart tracking function, you won't need to worry about missing a thing.
Smart night vision with Smart IR.
With Smart IR, the intensity of the infrared LEDs automatically adjusts to prevent overexposure in night vision mode, so you will get more details of the object or person captured at night.
Smart tracking.
When it detects a moving object, the C6N is smart enough to automatically track its motion while alerting you with an image in real-time.

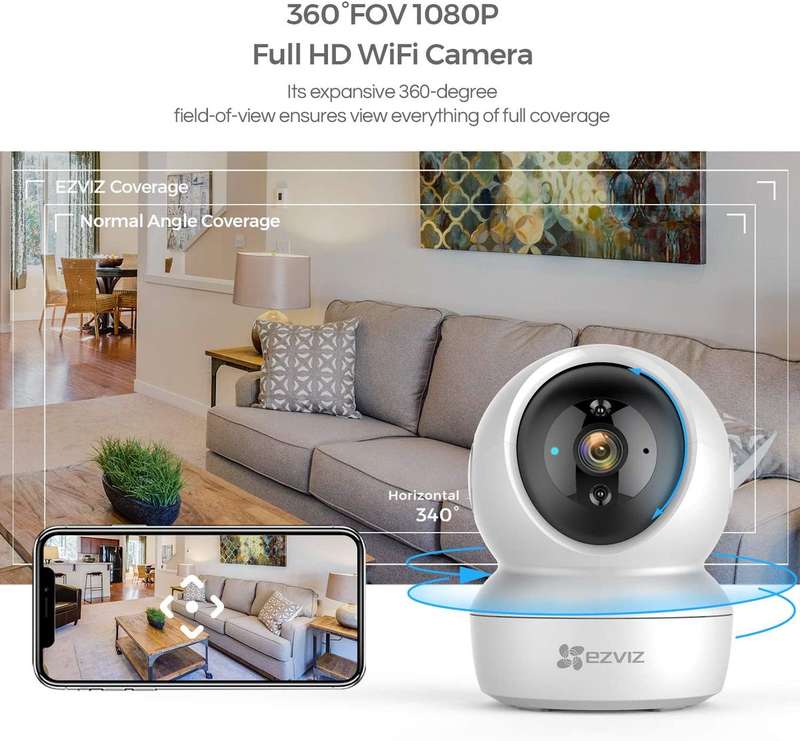

Zero Blind Spots
Keep tabs on every corner with just one C6N. Its expansive 360-degree field-of-view ensures full coverage, so you don't miss a thing.

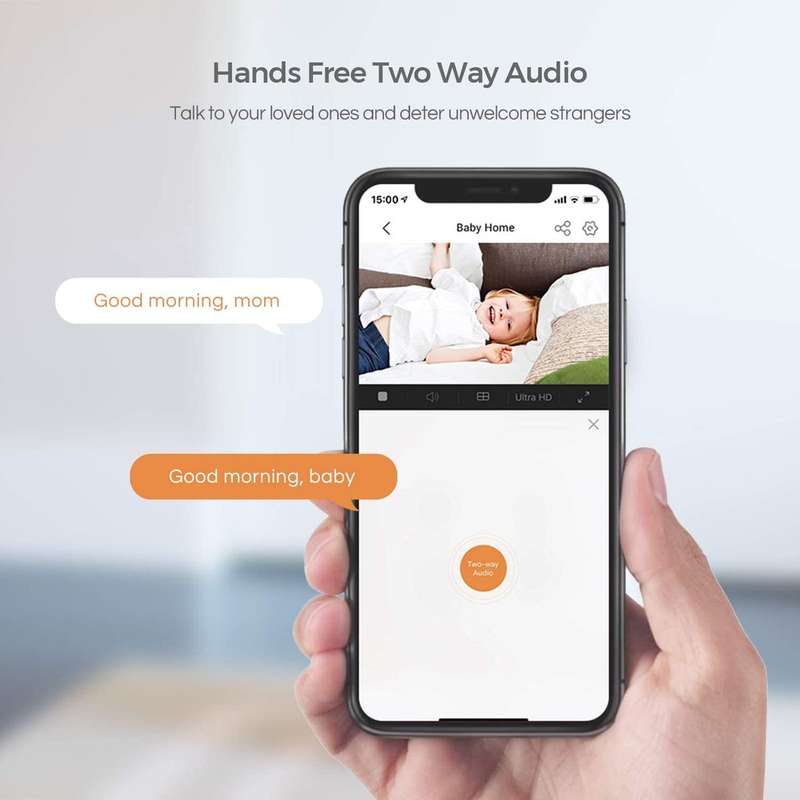

Communication anytime.
Talk to your loved ones and deter unwelcome strangers all by using the C6N's two-way communication feature. Using the EZVIZ App on your mobile device, you can easily and conveniently enjoy communication wherever you might be.
Protects your privacy.
Want a bit more privacy? With one tap of the EZVIZ App on your mobile device, you can enable C6N's sleep mode, giving you privacy when you need it.

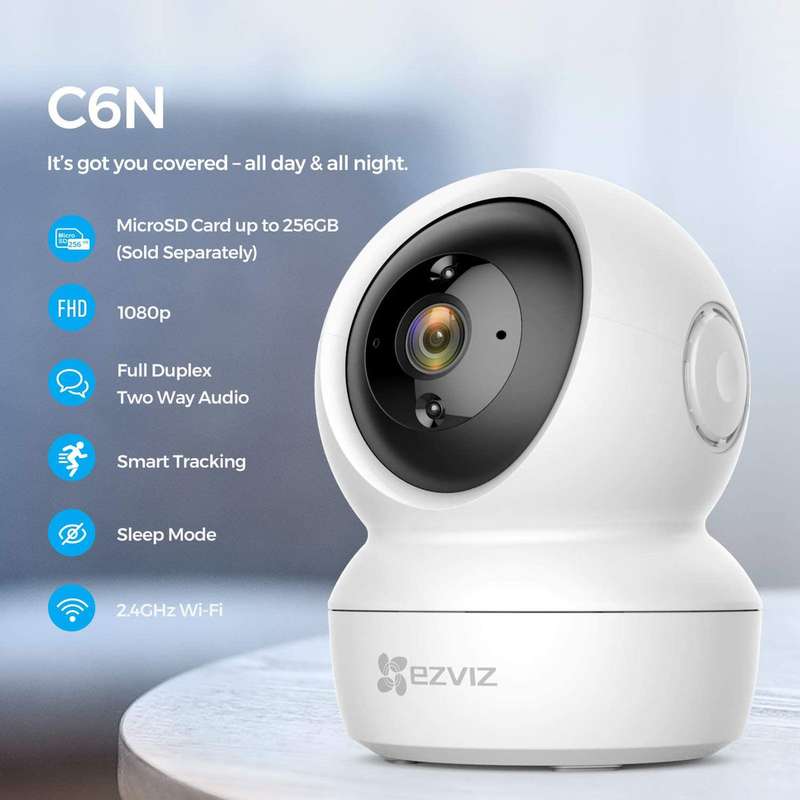

Multiple Storage Solutions
Save your recordings with flexible and secured solutions. The C6CN comes with a built-in MicroSD card slot that can store up to 256 GB of recorded footage. You can also save your images to EZVIZ Cloud* for additional back-up.
Security at Your Fingertips
With the EZVIZ App and EZVIZ Studio Software, you can capture, save, protect, and share what's valuable to you.
Specifications
Model Parameters
Model CS-C6N-A0-1C2WFR
Camera
Image Sensor 1/4" Progressive Scan CMOS
Shutter Speed Self-adaptive shutter
Lens 4mm@ F2.4, view angle: 85 Degrees diagonal, 75 Degrees horizontal, 45 Degrees vertical
Lens Mount M12
Day & Night IR-cut filter with auto-switching
DNR 3D DNR
WDR Digital WDR
Compression
Video Compression H.264
Video Bit Rate Adaptive bit rate.
Max. Resolution 1920 x 1080
Frame Rate Max. 15fps; Self-adaptive during network transmission
Network
Smart Alarm Motion detection
Wi-Fi Pairing AP Pairing
Protocol EZVIZ Cloud Proprietary Protocol
Interface Protocol EZVIZ Cloud Proprietary Protocol
Interface
Storage MicroSD card slot (Max. 256 GB)
Power Micro USB
Wired Network RJ45 X 1 (10M/100M self-adaptive Ethernet port)
Wi-Fi
Standard IEEE802.11 b/g/n
Frequency Range 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth Supports 20MHz
Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate 11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps
General
Power Supply DC 5V/1A
Power Consumption 5W max
IR Range MAX. 10m (32.81 fts)
Dimensions 88 mm x 88.2 mm x 119 mm (3.46" x 3.47" x 4.69")
Packaging Dimensions 103 mm x 103 mm x 168 mm (4.06" x 4.06" x 6.61")
Bare Weight 218g (0.48lb)
Packaging Contents
Packaging Contents C6N camera; Base; Screw Kit; Power Cable 3m (9.8 ft.); Drill Template; Power Adapter; Quick Start Guide
Operating Environment
Temperature -10 Degrees Celsius to 45 Degrees Celsius
Humidity 95% or less (non-condensing)
Certifications
Certifications FCC / UL / CE / WEEE / REACH / RoHS
What's in the box
C6N PT Camera
Mounting kit
Quick Manual
