A versatile choice for simpler protection

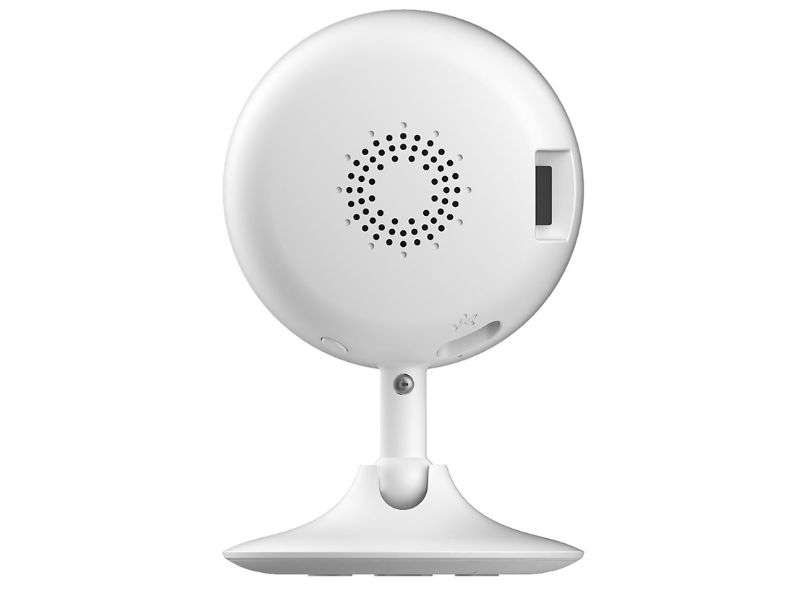

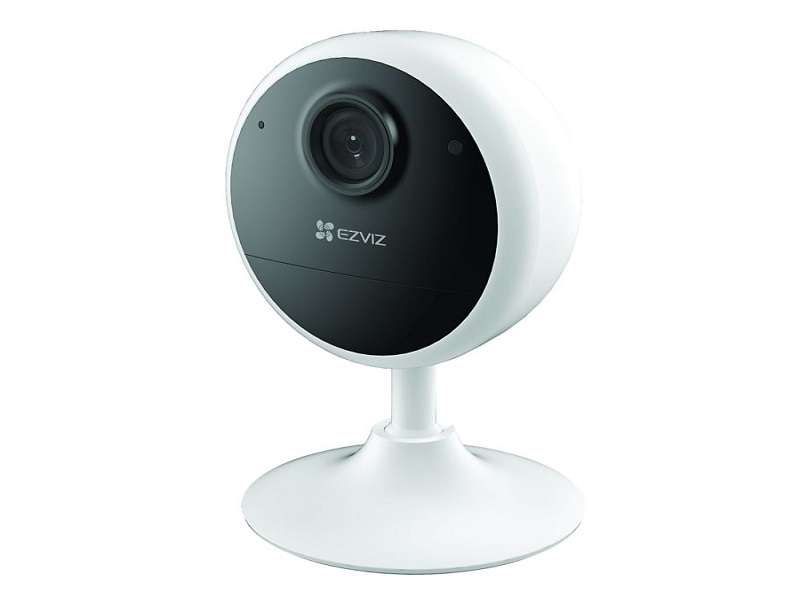

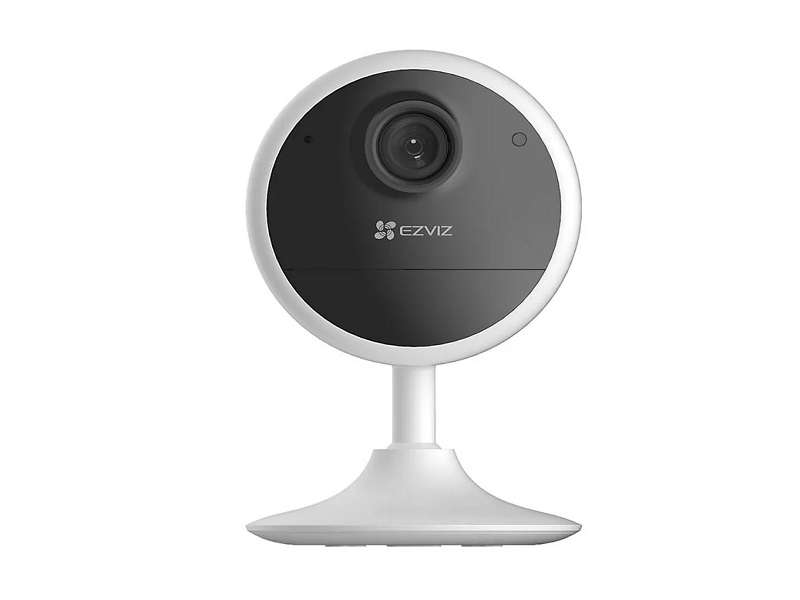

The CB1 is EZVIZ's new flexible and reliable indoor battery camera that can basically go anywhere inside your home. Thanks to its wire-free design and adjustable magnetic stand, you will easily find the perfect spot to get the most areas in your living space. This camera also comes packed with several essential features, including great video quality and night vision, human motion detection, two-way communication, sleep mode, and more.
Specifications
Model CS-CB1-R100-1K2WF
Camera
Image Sensor 1/3 " 2-Megapixel Progressive Scan CMOS Sensor
Shutter Speed Self-Adaptive Shutter
Lens 2.8mm@ F2.2 Viewing angle: 113`b0 (Diagonal), 90`b0 (Horizontal), 50`b0 (Vertical)
Minimum Illumination 0.1 Lux
Lens Mount M12
Day & Night IR-cut Filter with Auto Switch
DNR 3D DNR
Night Vision Up to 5 m / 16 ft
Function
Smart Alarm Supports smart human motion detection
Customized Alert Area Supports
Two-way Talk Supports
Storage
Local Storage Supports microSD card (Up to 512 GB)
Cloud Storage Supports EZVIZ CloudPlay storage (subscription required)
Video & Audio
Max. Resolution 1920 `d7 1080
Frame Rate 15fps. Self-Adaptive during Network Transmission
Video Compression H.265 / H.264
Video Bit Rate Full HD; Hi-Def; Standard
Audio Bit Rate Self-Adaptive
Max. Bitrate 1 Mbps
Network
Wi-Fi Standard IEEE802.11b, 802.11g, 802.11n
Frequency Range 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth Supports 20 MHz
Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps
Wi-Fi Pairing AP pairing
Protocol EZVIZ Cloud Proprietary Protocol
Interface Protocol EZVIZ Cloud Proprietary Protocol
Wired Network Does not support
Minimum Network Requirement 2 Mbps
General
Operating Conditions -10`b0C to 45`b0C (14`b0F to 113 `b0F ), Humidity 95% or Less (Non-condensing)
Power Supply DC 5V/1A (Purchased Separately)
Battery Capacity 1600 mA
Dimensions 67 `d7 63 `d7 105 mm (2.64 `d7 2.48 `d7 4.13 inch)
Packaging Dimensions 91.5 `d7 87.5 `d7 149 mm (3.60 `d7 3.44 `d7 5.87 inch)
Bare Weight 135 g (4.76 oz)
In the box
In the box - CB1 Camera
- Power Cable
- Foam Sticker
- Mounting Metal Plate
- Regulatory Information
- Quick Start Guide
Certifications
Certifications CE / WEEE / RoHS / REACH / UL
