EZVIZ products have been designed for your entertainment, communication and security. EB3 is a 2K wire-free security camera with a long-lasting 5200mAh rechargeable battery and 100% wire-free de-sign.
Main Features:
2K Resolution
Support Micro
SD Card
Two-Way Talk
Customisable Voice Alerts
H.265 Video Com-pression
Up to 120 Days Battery Life 5200mAh)
Colour Night Vision
Smart Human Motion Detection
Works with EZVIZ Solar Panel for battery charging
Wi-Fi 2.4GHz
Active Defence
Works with Google Assistant
Works with Amazon Alexa
Hassle-free home protection supported by extended battery life.
- The CS-EB3 is a 100% wire-free rechargeable camera that delivers well-rounded home protection for days on one single charge. It can be simply installed anywhere for enhanced security, inheriting EZVIZ's core technologies of colour night vision, two-way talk, active defense and more.
Vivid night vision.
- Thanks to two built-in spotlights, the CS-EB3 can render vivid color imaging even in pitch-black darkness. This allows you to see crucial details that would otherwise be lost.
Motion alerts are more accurate than ever.
- Integrating a PIR sensor and the person-shape detection algorithm, the CS-EB3 camera is intelligent enough to distinguish persons from other moving objects, keeping you safe while also reducing unwanted notifications.
We protect your data and privacy.
- Your data security and privacy make up the cornerstone of every product we design. Data transmission between the CS-EB3 and the EZVIZ Cloud is encrypted from end to end. Only you have the keys to decrypt your data.
Security at your fingertips.
- With the EZVIZ App, you can capture, save, protect, and share what's valuable to you.
- Support Live View, Two-Way Communication, Instant Push Alerts, Video History, Up to 8x Zoom, Smart Home (Google Home, Amazone Alexa) supported.
Compatible with EZVIZ Battery Operated Cameras
- This solar panel only works with EZVIZ BC1C/BC1 B1/B2/B3 Sets & C3A. Not compatible with other brands wireless camera

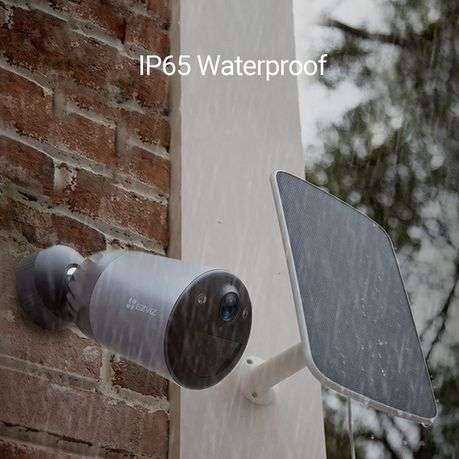

IP65 Waterproof
- Featuring a durable frame and stainless steel screws, the solar panel can easily withstands rain, dust, snow and sun. Just mount it, leave it, and enjoy the sun's continual power.

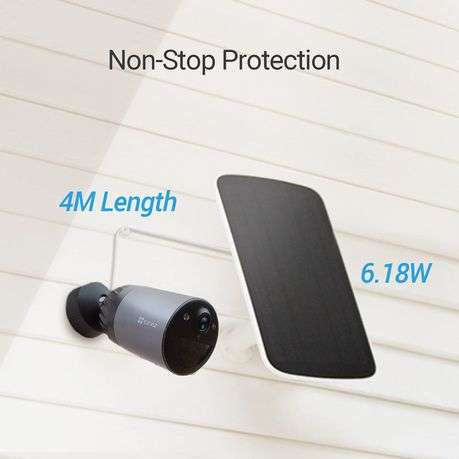

Non-Stop Protection
- Made of single crystalline silicon solar cells, the solar panel delivers up to 6.18 W of power. It will max out on sunny days to make sure the battery camera has enough power to operate all day and night.

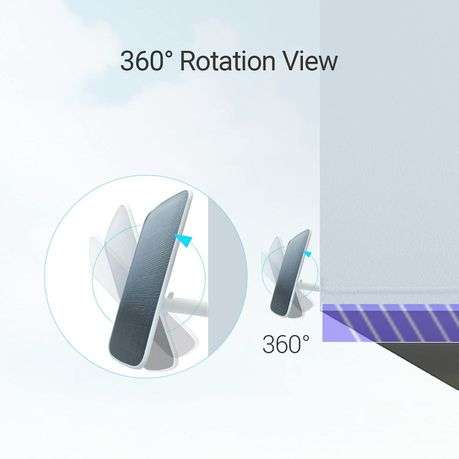

Easy Installation
- With an adjustable bracket that rotates 360 degrees and 4-meter long cable, the solar panel offers incredible flexibility. Mount the eLife security camera where you need it, then find a sunny spot to intall the solar panel and you will get a continuous power supply.
SOLAR PANEL
Specifications
Model CS-CMT-Solar Panel-C
Performance parameter
Power voltage 6V 5%
Max. Power current 1030 mA 5%
Max. Power 6.18 W
Transformation efficiency 0.216
Operation temperature -20 C - 60 C (-4 F - 140 F); Humidity 90% or less (non-condensing)
IP Grade IP65
Manufacturing process
Manufacturing process Monocrystalline solar cells, PET laminated wood
Product Dimensions 292.3 194.3 15.1 mm
Packaging Dimensions 202.5 78.0 299.0 mm
Net Weight 1045 g (36.8 oz)
Specifications
Model CS-EB3 (3MP)
Version
R100-2C3WFL
Camera
Image sensor
1/2.8" 3-Megapixel Progressive Scan SMOS Sensor
Minimum Illumination
0.01 Lux @(F2.0, AGC ON), 0 Lux with IR
Shutter Speed
Self-adaptive shutter
Lens
2.8mm@ F2.0 Diagonal angle: 131 Horizontal angle: 110 Vertical angle: 58
Day & Night
IR-cut filter with auto switch
DNR
3D DNR
Night Vision
IR Distance:15m, Color Night Vision Distance:15m
Video & Audio
Max Resolution
2304 x 1296
Frame Rate
15fps. Self-Adaptive during network transmission
Video Compression
H.265/H.264
Video Bit Rate
Ultra-HD; Full HD; Hi-Def Adaptive bit rate.
Audio Bit Rate
Self-Adaptive
Max. Bitrate
1.5 Mbps
Network
Wi-Fi Standard
IEEE802.11b, 802.11g, 802.11n
Frequency Range
2.4 GHz ~ 2.4835 GHz
Channel Bandwidth
Support 20MHz
Security
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate
11b: 11Mbps,11g :54Mbps,11n :72Mbps
Wi-Fi Pairing
AP pairing
Protocol
EZVIZ cloud proprietary protocol
Interface Protocol
EZVIZ cloud proprietary protocol
Minimum Network Requirement
4Mbps
Function
Smart Alarm
AI Human Detection
Two-way Talk
Supports
General Function
Anti-Flicker, Heart Beat, Password Protection, Watermark
Storage
Local Storage
Support Micro SD slot for local storage (Up to 256G)
Cloud Storage
EZVIZ cloud storage
General
Operating Conditions
-20 C to 50 C (-4 F to 122 F ), Humidity 95% or less (non-condensing)
IP Grade
IP65
Power Supply
DC 5V/2A (Compatible power adapter needs to be purchased separately)
Battery Capacity
5200 mAh
Power Consumption
Max.10W
Product Dimensions
105.9mm x 62.8mm x 62.8mm
Packaging Dimensions
103x103x186mm
Weight
522g (with package)
What's in the box
- CS-EB3 Camera
- Solar Panel
- Magnetic Base
- Screw Base
- Power Adapter
- USB Cable
- Mounting plate
- Drill template
- Screw Kit
- Regulatory Information
- Quick Start Guide
