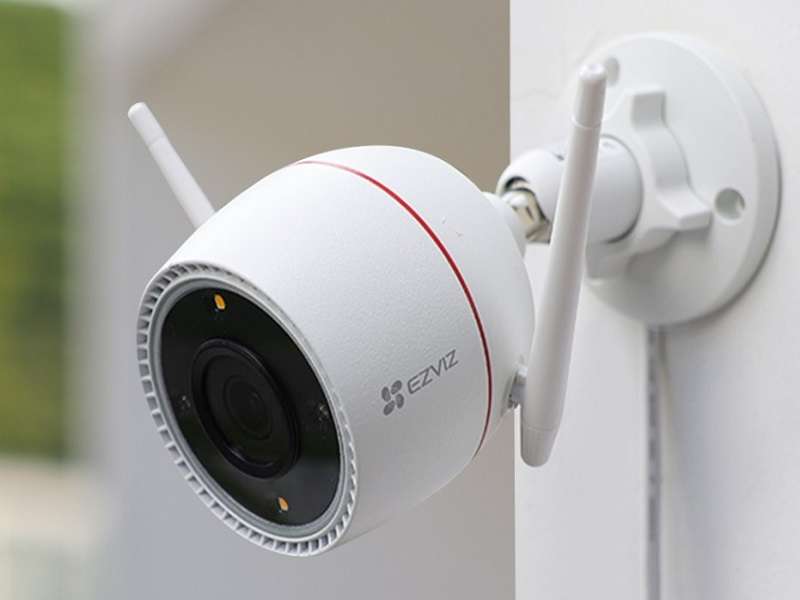

Simply smart outdoor protection with a sharper view
The camera captures everything in 2K clarity and sees color at night. The H3c 2K adds more smartness to an essential camera, it's made to meet all outdoor security requirements, both during the day and at night. Waving hands recognition, two-way conversation, human motion detection, and other incredible yet unique functions are all packed into this device.
Make every detail count with impressive 2K resolution
When it comes to reliable home protection, details always come first. The H3c 2K offers superior video quality in stunning 2K resolution. It ensures that you stay well informed of every important activity happening at home.
Specifications
Model CS-H3c-R100-1J4WKFL
Camera
Image Sensor 1/2.7"Progressive Scan CMOS
Minimum Illumination 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
IR Night Vision Distance Up to 98 ft / 30 m
Shutter Speed Self-adaptive shutter
Lens
4mm @ F2.0, view angle: 82`b0 (Horizontal), 98`b0 (Diagonal)
2.8mm@F2.0`a3`acview angle: 100`b0 (Horizontal), 125`b0(Diagonal)
Lens Mount M12
DNR 3D DNR
WDR Digital WDR
Day / Night Switch IR-Cut filter with auto-switching
Video & Audio
Max. Resolution 4MP, 2560 `d7 1440
Frame Rate Max: 30fps; Self-Adaptive during network transmission
Video Compression H.265 / H.264
Video Bit Rate Quad HD; Hi-Def; Full HD; Standard. Adaptive bit rate
Audio Bit Rate Self-Adaptive
Max. Bitrate 4 Mbps
Network
Wi-Fi Standard IEEE802.11b, 802.11g, 802.11n
Frequency Range 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth Supports 20 MHz
Security 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
Transmission Rate 11b: 11Mbps, 11g: 54Mbps, 11n: 144Mbps
Wi-Fi Pairing AP Pairing
Protocol EZVIZ Cloud Proprietary Protocol
Interface Protocol EZVIZ Cloud Proprietary Protocol
Wired Network RJ45 `d7 1 (10M / 100M Adaptive Ethernet Port)
Function
Detection Human Shape Detection, Motion Detection Waving-Hand Detection
Customized Alert Area Supports
Integration Works with Alexa, Google Assistant, IFTTT
General Function Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark
Storage
Local Storage Supports microSD card (Up to 512 GB)
Cloud Storage Supports EZVIZ CloudPlay storage (Subscription required)
General
Operating Conditions -30 `b0C to 50`b0C ( -22 `b0F to 122 `b0F ), humidity 95% or less (non-condensing)
IP Grade IP67
Power Supply DC 12V / 1A
Power Consumption MAX. 9W
Dimensions 72 `d7 72 `d7 157 mm (2.83 `d7 2.83 `d7 5.98 inch)
Packaging Dimensions 227 `d7 100 `d7 92 mm (8.94 `d7 3.94 `d7 3.62 inch)
Weight(With Package) 539 g (19.01 oz)
Net Weight 330 g (11.64 oz)
In the box
In the box H3c 2K+ Camera
Drill Template
Screw Kit
Waterproof Kit
Power Adapter
Regulatory Information
Quick Start Guide
