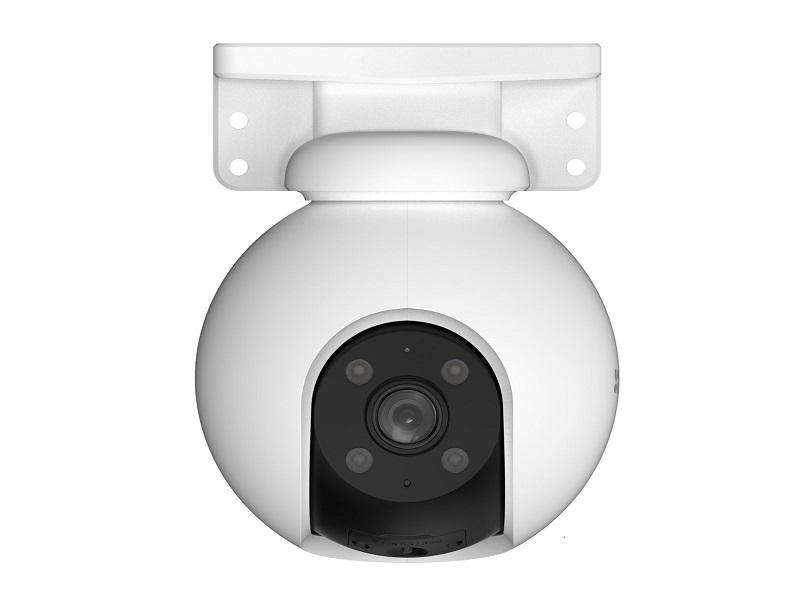

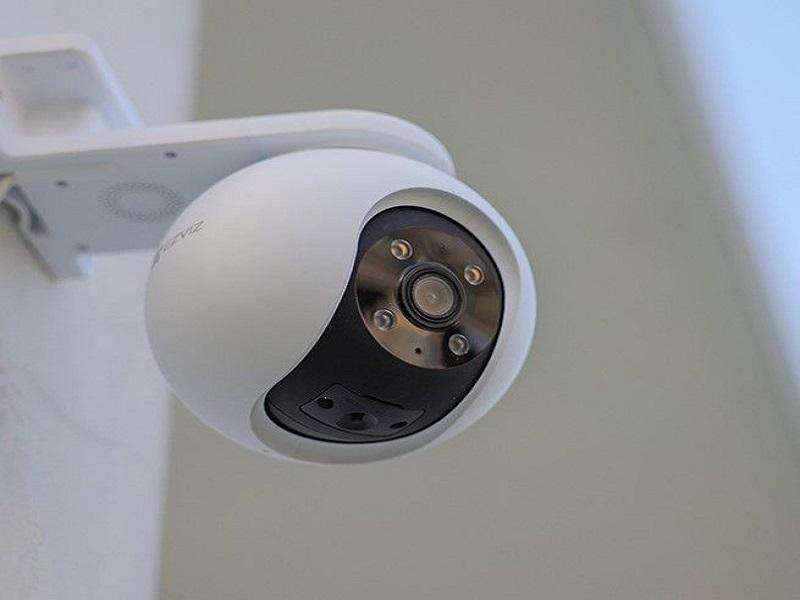

EZVIZ CS-H8-3MP-4MM Pro Smart Camera
Image Sensor 1/2.7" Progressive Scan CMOS
Shutter Speed Self-Adaptive shutter
Lens 4mm @ F1.6, Viewing angle: 46`b0 (Vertical), 89`b0 (Horizontal), 104`b0 (Diagonal) 6mm @ F1.6, Viewing angle:28`b0 (Vertical), 54`b0 (Horizontal), 62`b0 (Diagonal)
PT Angle Pan: 340`b0, Tilt: 80`b0
Minimum Illumination 0.5 Lux @ (F1.6, AGC ON), 0 Lux with IR (Data is obtained from EZVIZ laboratories)
Lens Mount M12
Day & Night IR-cut filter with auto-switching
DNR 3D DNR
WDR Digital WDR
Night Vision Distance Up to 30m / 98ft
Max. Resolution 2304 x 1296
Frame Rate Max: 30fps; Self-Adaptive during network transmission
Video Compression H.265 / H.264
H.265 Type Main Profile
Video Bit Rate Quad HD; Full HD; Hi-Def; Standard. Adaptive bit rate.
Audio Bit Rate Self-Adaptive
Max. Bitrate 2MBPS
Wi-Fi Standard IEEE802.11b, 802.11g, 802.11n
Frequency Range 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth Supports 20 MHz
Security WPA-PSK / WPA2-PSK
Transmission Rate 11b 11 Operating Conditions -30 `b0C to 50`b0C ( -22 `b0F to 122 `b0F ), humidity 95% or less (non-condensing)
IP Grade Weatherproof Design
Power Supply DC 12V / 1A
Power Consumption MAX. 6W
Dimensions 116 `d7 153.2 `d7 163.8 mm (4.57 `d7 6.03 `d7 6.45 inch)
Packaging Dimensions 187 `d7 174 `d7 186.5 mm (7.36 `d7 6.85 `d7 7.34 inch)
Weight Net Weight: 592 g (20.88oz) With Package: 943 g (33.26oz) For EU Standard Version 11g 54 MBPS 11n 72 MBPS
Wi-Fi Pairing AP pairing
Protocol EZVIZ Cloud Propriet ary Protocol
Interface Protocol EZVIZ Cloud Proprietary Protocol
Wired Network RJ45 `d7 1(10M / 100M Adaptive Ethernet Port)
Local Storage Supports Micro SD card (Up to 512GB)
Cloud Storage Supports EZVIZ Cloud Play storage (Subscription required)
Smart Alarm AI-Powered Human / Vehicle Shape Detection, Motion Detection
Auto Tracking Supports
Customized Alert Area Supports
Two-way Talk Supports
General Function Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark
Operating Conditions -30 `b0C to 50`b0C ( -22 `b0F to 122 `b0F ), humidity 95% or less (non-condensing)
IP Grade Weatherproof Design
Power Supply DC 12V / 1A
Power Consumption MAX. 6W
Dimensions 116 `d7 153.2 `d7 163.8 mm (4.57 `d7 6.03 `d7 6.45 inch)
Packaging Dimensions 187 `d7 174 `d7 186.5 mm (7.36 `d7 6.85 `d7 7.34 inch)
Weight Net Weight: 592 g (20.88oz) With Package: 943 g (33.26oz) For EU Standard Version
