360-degree protection that's simply smart
Inheriting the core technologies from EZVIZ's award-winning outdoor pan & tilt camera series, the H8c puts loads of smart features into a compact unit for simply smart home protection. This trusted, accessible camera is reliable in any weather and operates steadily on residential internet platforms.
Crisp, 360-degree vision means no gray areas
Can't get a wide enough picture with your current security camera? Hesitant about the huge investment on a multi-camera security system? The motorized H8c reduces blind spots in monitoring so you see every corner that matters. It renders sharp images in 1080p resolution, too. With only one affordable H8c, you can stay informed with both the bigger picture and the small details.
Specifications
Model Model CS-H8c (1080P)
Camera
Image Sensor 1/2.7" Progressive Scan CMOS
Shutter Speed Self-adaptive shutter
Lens 4mm @ F2.0, viewing angle: 46`b0 (Vertical), 89`b0 (Horizontal), 104`b0 (Diagonal) 6mm @ F2.0, viewing angle: 28`b0 (Vertical), 52`b0 (Horizontal), 60`b0 (Diagonal)
PT Angle Pan: 350`b0, Tilt: 80`b0
Minimum Illumination 0.5 Lux @ (F1.6, AGC ON), 0 Lux with IR (Data is obtained from EZVIZ laboratories)
Lens Mount M12
Day & Night IR-Cut filter with auto-switching
DNR 3D DNR
WDR Digital WDR
Night Vision Distance 30 m / 98 ft
Video & Audio
Max. Resolution 1920 `d7 1080
Frame Rate Max: 30fps; Self-Adaptive during network transmission
Video Compression H.265 / H.264
H.265 Type Main Profile
Video Bit Rate Full HD; Hi-Def; Standard. Adaptive bit rate.
Audio Bit Rate Self-Adaptive
Max. Bitrate 2 Mbps
Network
Wi-Fi Standard IEEE802.11b, 802.11g, 802.11n
Frequency Range 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth Supports 20 MHz
Transmission Rate 11b: 11 Mbps,11g: 54 Mbps,11n: 72 Mbps
Wi-Fi Pairing AP pairing
Protocol EZVIZ Cloud Proprietary Protocol
Interface Protocol EZVIZ Cloud Proprietary Protocol
Wired Network RJ45 `d7 1 (10M / 100M Adaptive Ethernet Port)
Storage
Local Storage MicroSD card slot (Up to 512GB)
Cloud Storage EZVIZ Cloud Storage (Subscription Required)
Function
Smart Alarm AI-Powered Human Shape Detection
Customized Alert Area Supports
Two-way Talk Supports
General Function Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark
General
Operating Conditions -30 `b0C to 50`b0C ( -22 `b0F to 122 `b0F ), humidity 95% or less (non-condensing)
IP Grade Weatherproof Design
Power Supply DC 12V / 1A
Power Consumption MAX. 12W

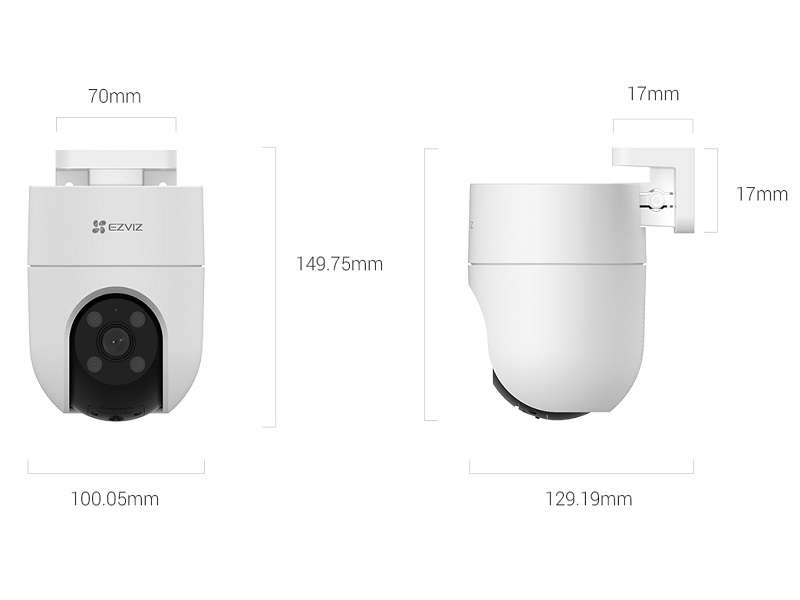

Dimensions 100.05 `d7 129.19 `d7 149.75 mm (3.94 `d7 5.09 `d7 5.9 inch)
Packaging Dimensions 140 `d7 140 `d7 192 mm (5.51 `d7 5.51 `d7 7.56 inch)
Weight (With package) 730 g (25.75 oz)
Net Weight 420 g (14.8 oz)
In the box
In the box - H8c Camera
- Drill Template
- Screw Kit
- Waterproof Kit
- Power Adapter
- Regulatory Information
- Quick Start Guide
