Specification:

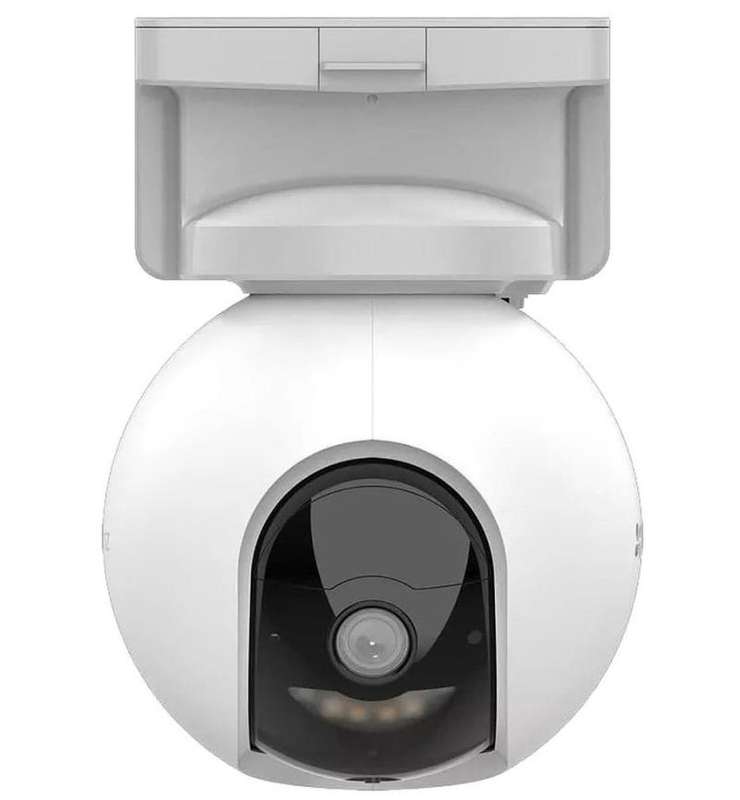

EZVIZ EB8 2K BATTERY-POWER PT 4G CAMERA - E-EB8
EB8 4G 2K
Pan & Tilt 4G Battery Camera
Specifications
Model: CS-EB8 (3MP,4GA)
Camera
Image Sensor: 1/2.8" 3-Megapixel Progressive Scan CMOS Sensor
Minimum Illumination: 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed: Self-Adaptive Shutter
Lens: Viewing Angle: 100° (Diagonal), 83° (Horizontal), 44° (Vertical)
PT Angle: Pan: 340, Tilt: 65°
Day & Night: IR-Cut filter with Auto Switch
DNR: 3D DNR
Night Vision Distance: IR 15 m, Color Night Vision 15 m
Video & Audio
Max Resolution: 2304 x 1296
Frame Rate: Max. 15fps; Self-Adaptive during Network Transmission
Video Compression: H.265 / H.264
Video Bit Rate: Quad-HD; Full- HD; Hi-Def. Adaptive bit rate.
Audio Bit Rate: Self-Adaptive
Max. Bitrate: 1.5 Mbps
Network
Frequency Bands
EU:
LTE FDD: B1/B3/B7/B8/B20/B28
LTE TDD: B38/B40
LA:
LTE FDD:
B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28/B66
LTE TDD: B38/B40
Function
Smart Alarm: Smart human motion detection
GPS: Supports
Two-way Talk: Supports
General Function: Anti-Flicker, Heart Beat, Password Protection, Watermark
Storage
Local Storage: Supports MicroSD Card (Up to 512G)
Cloud Storage: EZVIZ Cloud Storage
General
Operating Conditions: -20 °C to 50 °C (-4 °F to 122 °F ), Humidity 95% or less (non-condensing)
IP Grade: IP65
Power Supply: DC 5V/2A (Adapter needs to be purchased separately)
Battery Capacity: 10400 mAh
Power Consumption: Max. 10W
Product Dimensions: 183 × 116 × 166 mm (7.20 × 4.57 × 6.52 inch)
Packaging Dimensions: 216 × 145 × 203 mm (8.50 × 5.71 × 7.99 inch)
Weight Net Weight: 835 g (26.8 Oz) With package: 1072 g (34.4 Oz)
In The Box
EB8 4G Camera
Drilling Template
Type C Cable
SIM Card Adapter
Screw Kit
Quick Installation Guide
Regulatory Information
Quick Start Guide
Certifications
Certifications: CE / WEEE / RoHS / UKCA/ REACH
