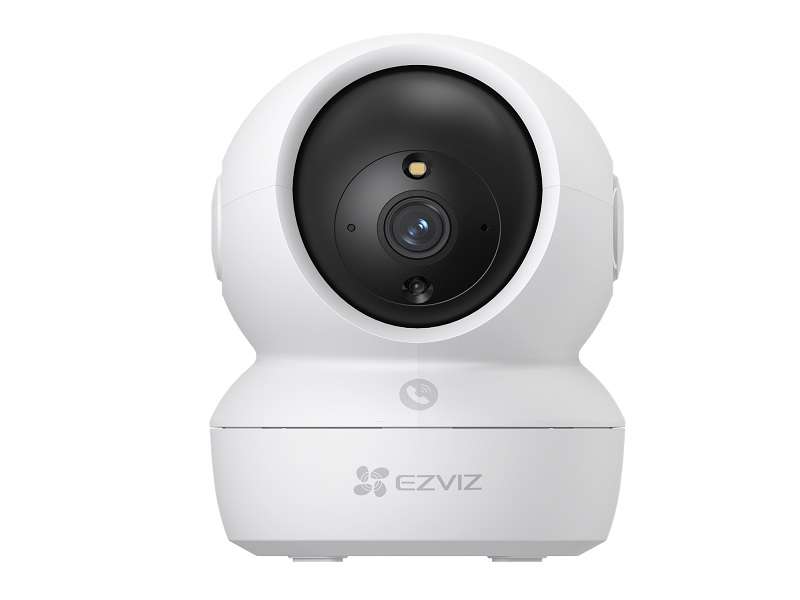

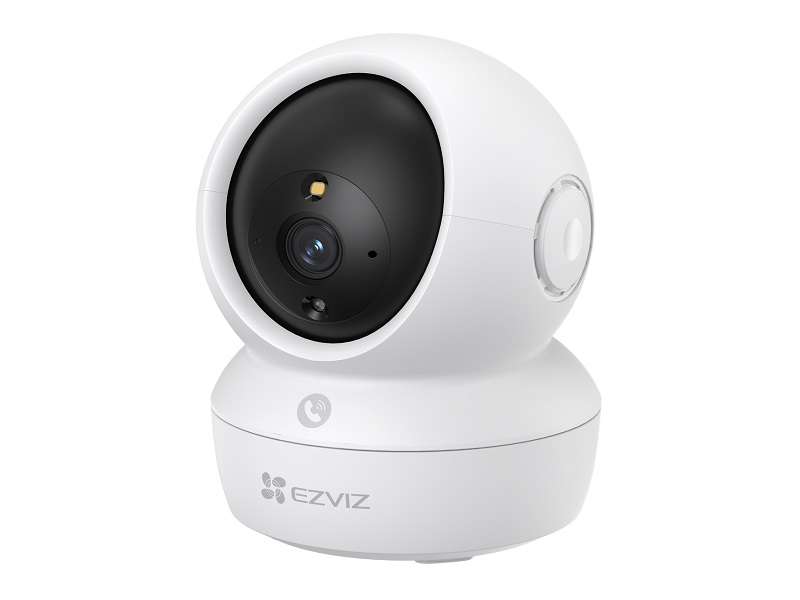

360-degree protection made sharp and smart
Its time to upgrade your essential security camera to be sharper in vision and smarter in action. This new version from EZVIZs best-selling indoor camera range takes video quality to the impressive 2K level and enhances the detection feature with on-board AI. As a simple plug-in camera, the H6c 2K can be your trusted home camera or make it your pet or baby monitor in any room.
Protect and care with stunning vision, at all times
Whole-room coverage is a breeze. The H6c 2K helps you keep eyes-open-wide on your indoor space. And when your cat starts playing hide-and-seek, you can rotate the camera to find where it is. It also renders evenly exposed, clear black-and-white night vision, thanks to its built-in infrared LEDs, so you can enjoy peace of mind while you sleep.
Specifications
Model CS-H6c-R100-8B4WF
Camera
Image Sensor F2.4 @ 1/3" Progressive Scan CMOS
Shutter Speed Self-adaptive shutter
IR Night Vision Distance Up to 10 m (33 ft)
Lens 4 mm, viewing angle: 85`b0 (Diagonal), 75`b0 (Horizontal), 45`b0 (Vertical)
Lens Mount M12
DNR 3D DNR
WDR Digital WDR
Day & Night Switch IR-cut filter with auto-switching
Video & Audio
Max. Resolution 4MP, 2560 `d7 1440
Frame Rate Max: 20 fps; Self-Adaptive during network transmission
Video Compression H.265 / H.264
Video Bit Rate Quad HD, Full HD, HD, Standard. Adaptive bit rate.
Storage
Local Storage Supports microSD card (Up to 256 GB)
Cloud Storage Supports EZVIZ CloudPlay storage (subscription required)
Network
Wi-Fi Standard IEEE 802.11 b, 802.11 g, 802.11 n
Frequency Range 2.4 ~ 2.4835 GHz
Channel Bandwidth Supports 20 MHz
Security 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
Transmission Rate 11b 11 Mbps, 11g 54 Mbps, 11n: 72 Mbps
Wi-Fi Pairing AP paring
Protocol EZVIZ Cloud Proprietary Protocol
Interface Protocol EZVIZ Cloud Proprietary Protocol
Wired Network RJ45 `d7 1 (10M / 100M Adaptive Ethernet Port)
General
Dimensions 88 `d7 88.2 `d7 119 mm (3.46 `d7 3.47 `d7 4.69 in)
Packaging 103 `d7 103 `d7 186 mm (4.06 `d7 4.06 `d7 7.30 in)
Net Weight 218 g (7.69 oz)
Operating Conditions -10`b0 to 45`b0 C (14`b0 to 113`b0 F) Humidity 95% or less (non-condensing)
Power
Power Supply DC 5V / 1A
Power Consumption Max. 5 W
In the box
In the box - H6c 2K Camera
- Base
- Screw Kit
- Power Cable
- Drill Template
- Power Adapter
- Quick Start Guide
