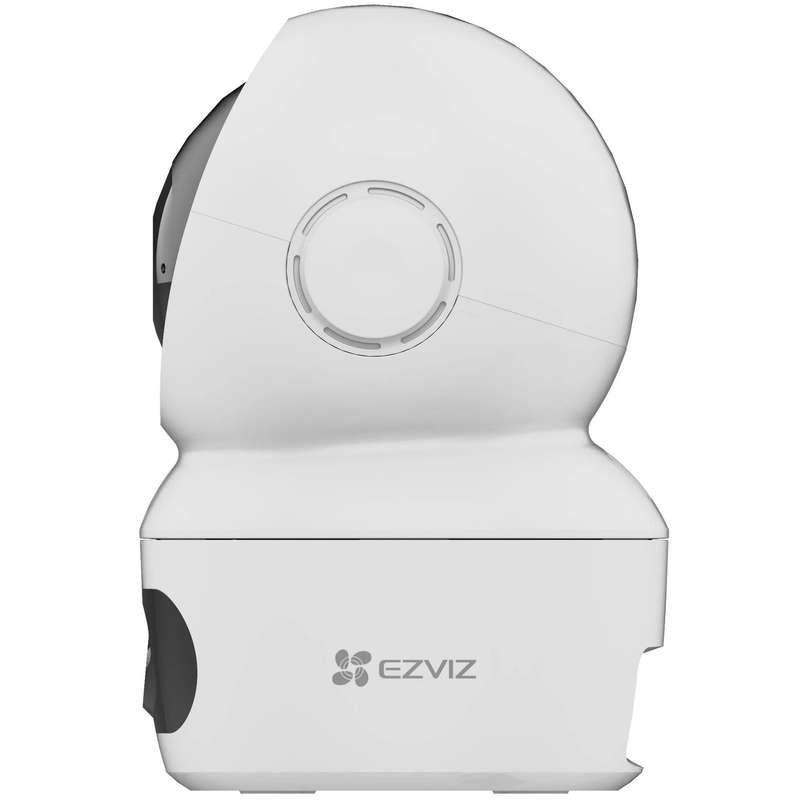

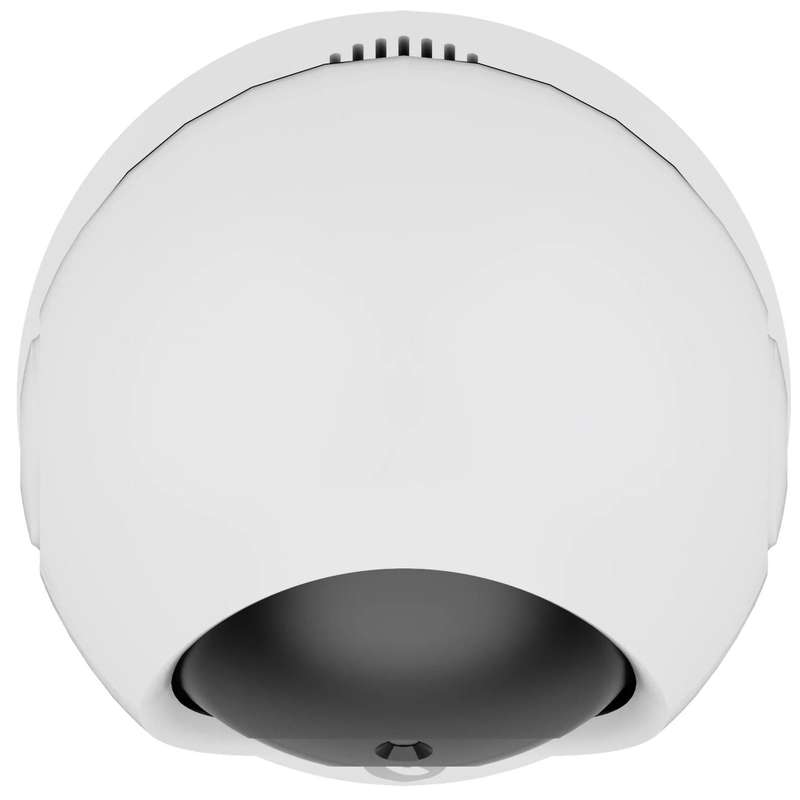

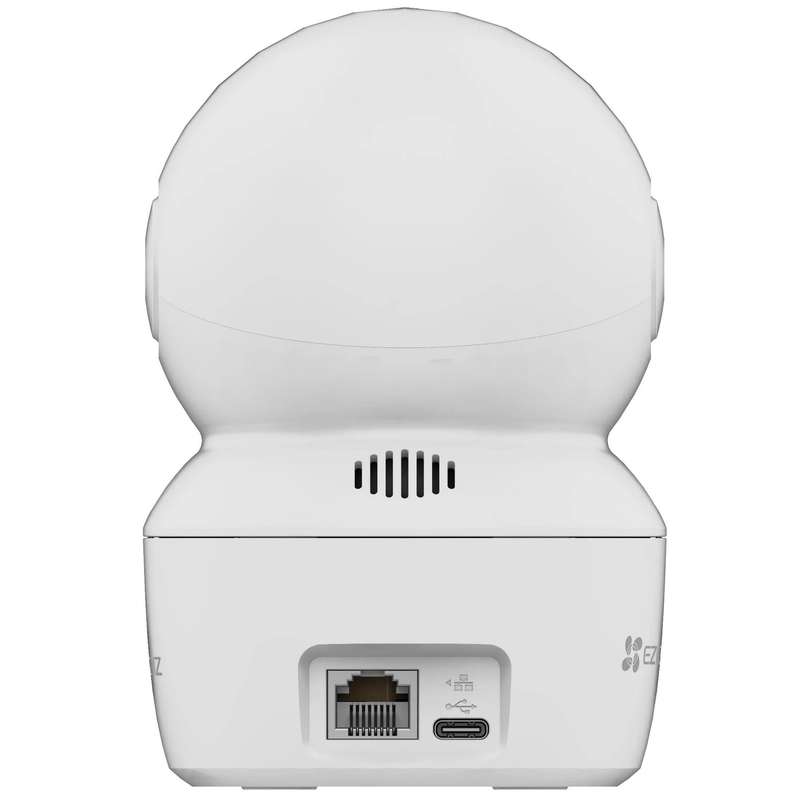

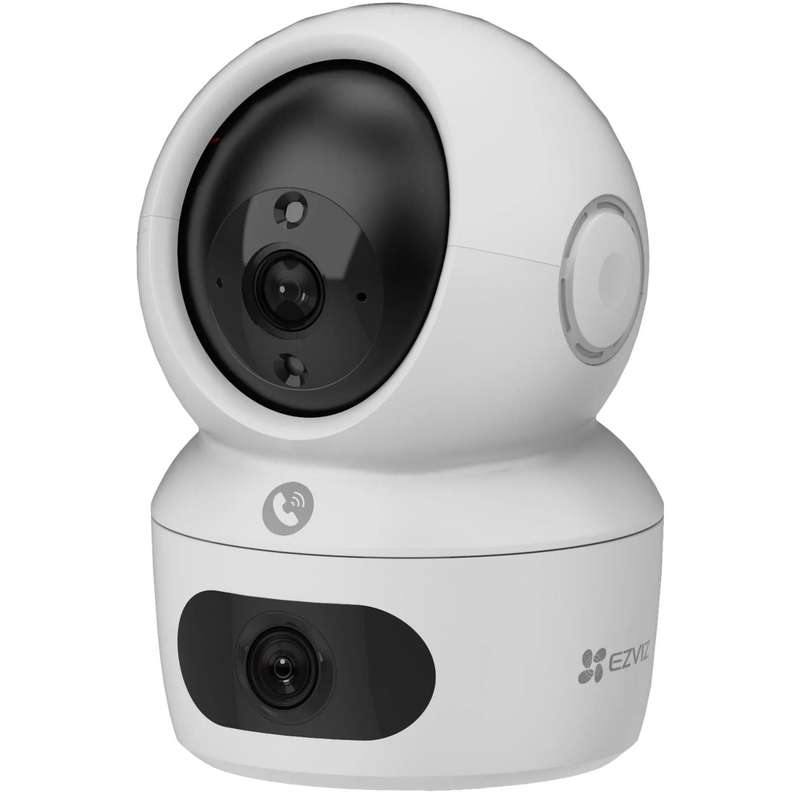

EZVIZ H7C 2K DUAL LENS CAMERA - AI - E-H7C
Type - C
H7C Dual 2K+ & 2K+
Dual - Lens Pan & Tilt Wi - Fi Camera
Specifications
Model: CS-H7c-R100-8G44WF
Camera
Resolution: Dual 2K+ Resolution
Image Sensor_ 1/3" Progressive Scan CMOS
Shutter Speed_ Self-Adaptive Shutter
Fixed Lens_ 2.8mm@F1.6, View Angle_ 108°(Diagonal), 92° (Horizontal), 50°(Vertical)
PT Lens : 6mm@F1.6 , View Angle_ 60°(Diagonal), 51° (Horizontal), 28°(Vertical)
Lens Mount_ M12
Day & Night_ IR-Cut Filter with Auto-Switching
DNR: 3D DNR
WDR: Digital WDR
Compression
Video Compression_ H.264/H.265
Video Bit Rate_ Adaptive bit rate.
Network
Smart Alarm_ Motion Detection, Human Shape Detection, Loud Noise Detection, Patrol Mode Detection
Wi-Fi Pairing_ AP Paring
Protocol: EZVIZ Cloud Proprietary Protocol
Interface Protocol_ EZVIZ Cloud Proprietary Protocol
Max. Resolution_ 2560 × 1440
Frame Rate_ Max:30fps; Self-Adaptive during Network Transmission
Interface
Storage: Micro SD Card Slot (Max. 512G)
Power: TYPE-C
Wired Network_ RJ45 X 1 (10M/100M Self-Adaptive Ethernet Port)
Wi-Fi
Standard: IEEE802.11a, IEEE802.11b, 802.11g, 802.11n,802.11ac 802.11ax
Frequency Range_ 2.4GHz: 2.4 GHz - 2.4835 GHz 5GHz_ 5.15GHz~5.25GHz
Channel Bandwidth_ 2.4GHz Supports 20MHz 5GHz Supports 80MHz
Security: WPA-PSK, WPA2-PSK, WPA3-Personal
Transmission Rate_ 2.4GHz Max. Rate Support_ 11b_11M,11g_54M, 11n_MCS7_20M
11ax_MCS11_20M 5.15-5.25GHz Max. Rate Support_ 11a_54M, 11n_MCS7_20-40M
11ac_MCS9_20-40-80M, 11ax_MCS11_20-40-80M
Output Power(EIRP): 20 dBm
Antenna Gain_ 2.56dBi@2.48GHz, 3.18dBi@5.22GHz
General
Operating Conditions_ -10°C to 45°C ( -14 °F to 113 °F ) Humidity 95% or less (non-condensing)
Power Consumption_ 8W max
Power Supply_ DC 5V/2A
IR Range_ MAX. 10 meters (32.81ft)

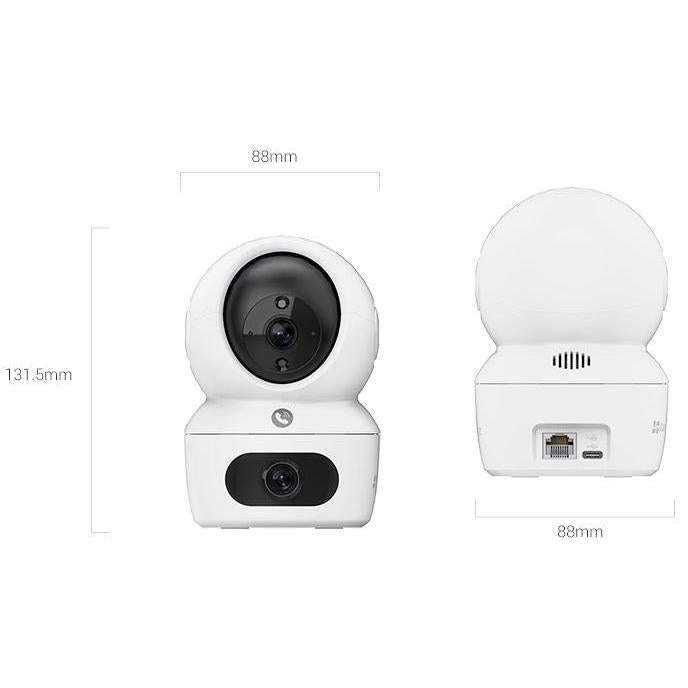

Dimensions: 88 × 88 × 131.5 mm (3.46 × 3.47 ×4.69 in)
Package Dimensions_ 200 × 105 ×105 mm (7.87 × 4.13 × 4.13 in)
Net Weight_ 270 g (9.52 oz)
Bare Weight_ 499 g (17.60 oz)
In The Box
Camera (x1)
Power Adapter (x1)
Power Cable (x1)
Drill Template (x1)
Mounting Plate (x1)
Screw Kit (x1)
Regulatory Information (x1)
Quick Start Guide (x1)
Certifications
Certifications: CE / UKCA / WEEE / RoHS / REACH / UL
