EZVIZ H8 PRO PAN & TILT 2K CAMERA - E-H8PRO
H8 Pro 2K
Pan & Tilt Wi - Fi Camera
Specifications
Model: CS-H8-R100-1H3WKFL
Camera
Image Sensor: 1/2.7" Progressive Scan CMOS
Shutter Speed: Self-Adaptive Shutter
Lens: 4mm @ F1.6, Viewing angle_ 46° (Vertical)
89° (Horizontal), 104° (Diagonal) 6mm @ F1.6, Viewing angle_28° (Vertical), 54° (Horizontal), 62° (Diagonal)
PT Angle: Pan_ 340°, Tilt_ 80°
Minimum Illumination: 0.5 Lux @ (F1.6, AGC ON), 0 Lux with IR (Data is obtained from EZVIZ Laboratories)
Lens Mount: M12
Day & Night: IR-Cut Filter with Auto-Switching
DNR: 3D DNR
WDR: Digital WDR
Night Vision Distance: Up to 30m / 98ft
Video & Audio
Max. Resolution: 2304 x 1296
Frame Rate_ Max: 30fps; Self-Adaptive during network transmission
Video Compression_ H.265 / H.264
H.265 Type: Main Profile
Video Bit Rate: Quad HD; Full HD; Hi-Def; Standard. Adaptive bit rate.
Audio Bit Rate: Self-Adaptive
Max. Bitrate_ 2 Mbps
Network
Wi-Fi Standard_ IEEE802.11b, 802.11g, 802.11n
Frequency Range: 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth: Supports 20 MHz
Security: WPA-PSK / WPA2-PSK
Transmission Rate: 11b 11 Mbps, 11g 54 Mbps, 11n 72 Mbps
Wi-Fi Pairing_ AP pairing
Protocol: EZVIZ Cloud Propriety ary Protocol
Interface Protocol: EZVIZ Cloud Proprietary Protocol
Wired Network: RJ45 × 1(10M / 100M Adaptive Ethernet Port)
Storage
Local Storage: Supports Micro SD Card (Up to 512GB)
Cloud Storage: Supports EZVIZ CloudPlay Storage (Subscription required)
Function
Smart Alarm: AI-Powered Human / Vehicle Shape Detection, Motion Detection
Auto Tracking: Supports
Customized Alert Area: Supports
Two-Way Talk: Supports
General Function: Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark
General
Operating Conditions_ -30 °C to 50°C ( -22 °F to 122 °F ), humidity 95% or less (non-condensing)
IP Grade: Weatherproof Design
Power Supply_ DC 12V / 1A
Power Consumption_ MAX. 6W

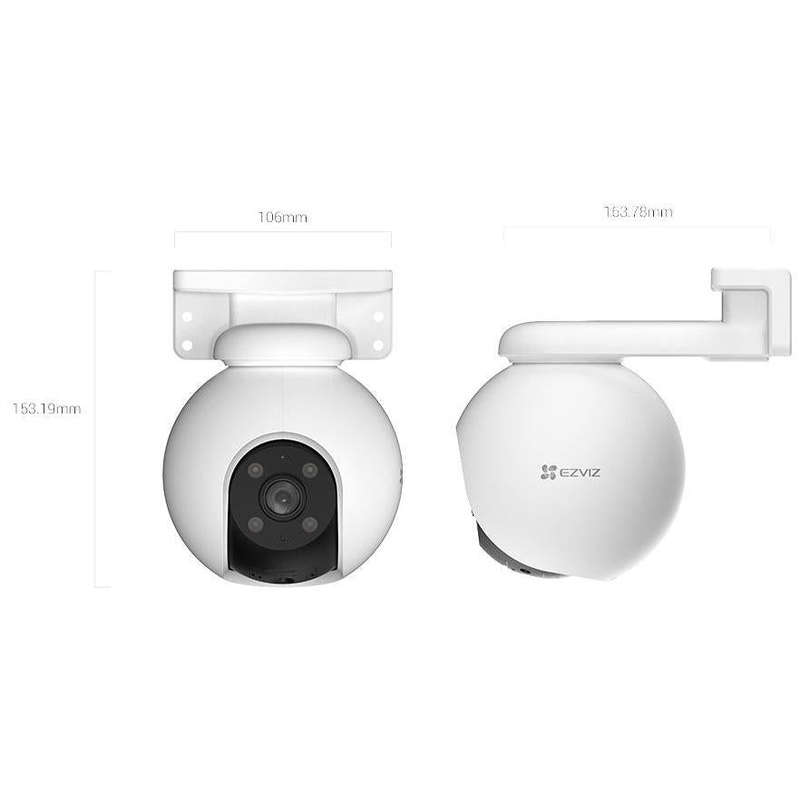

Dimensions: 116 × 153.2 × 163.8 mm (4.57 × 6.03 × 6.45 inch)
Packaging Dimensions: 187 × 174 × 186.5 mm (7.36 × 6.85 × 7.34 inch)
Weight Net Weight_ 592 g (20.88 oz) With Package_ 943 g (33.26 oz) For EU Standard Version
In The Box_ H8 Pro 2K Camera
Power Adapter
Screw Kit
Waterproof Kit
Drilling Template
Regulatory Information
Quick Start Guide
Certifications
Certifications: UL / FCC / CE / WEEE / RoHS / UKCA
