EZVIZ H8C PRO 3K - 5MP - E-H8CP3K
H8C Pro 3K
Pan & Tilt Wi-Fi Camera
Specifications
Model: CS-H8c Pro (3K)
Camera
Image Sensor: 1/2.7 Progressive Scan CMOS
Shutter Speed: Self-Adaptive Shutter
Lens: 4mm@ F1.6, Viewing Angle: 48ￂﾰ (Vertical), 91ￂﾰ (Horizontal)
108ￂﾰ (Diagonal) 6mm@ F1.6, Viewing Angle: 30ￂﾰ (Vertical), 56ￂﾰ (Horizontal), 66ￂﾰ (Diagonal)
PT Angle: Pan: 350ￂﾰ, Tilt: 80ￂﾰ
Minimum Illumination: 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories)
Lens Mount: M12
DNR: 3D DNR
WDR: Digital WDR
Black & White Night: 30m / 98ft
Video & Audio
Max Resolution: 2880 x 1620
Frame Rate: Max:30fps; Self-Adaptive during network transmission
Video Compression: H.265 / H.264
H.265 Type: Main Profile
Video Bit Rate: Ultra-HD; Hi-Def; Standard. Adaptive bit rate.
Audio Bit Rate: Self-Adaptive
Network
Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n
Frequency Range: 2.4 GHz - 2.4835 GHz
Channel Bandwidth: Supports 20MHz
Security: WPA-PSK/WPA2-PSK
Transmission Rate: 11b 11 Mbps, 11g 54 Mbps, 11n: 72 Mbps
Wi-Fi Pairing: AP paring
Protocol: EZVIZ Cloud Proprietary Protocol
Interface Protocol: EZVIZ Cloud Proprietary Protocol
Wired Network: RJ45 ￃﾗ 1 (10M / 100M Adaptive Ethernet Port)
Functions
Smart Alarm: AI-Powered Human / Vehicle Shape Detection
Auto Tracking: Supports
Customized Alert Area: Supports
Two-Way Talk: Supports
General Function: Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark
Storage
Local Storage: Supports MicroSD Card (Up to 512 GB)
Cloud Storage: Supports EZVIZ CloudPlay Storage (Subscription required)
General
Operating Conditions: -30ￂﾰC to 50ￂﾰC ( -22 ￂﾰF to 122 ￂﾰF ) Humidity 95% or less (non-condensing)
IP Grade: Weatherproof Design
Power Supply: DC 12V/1A

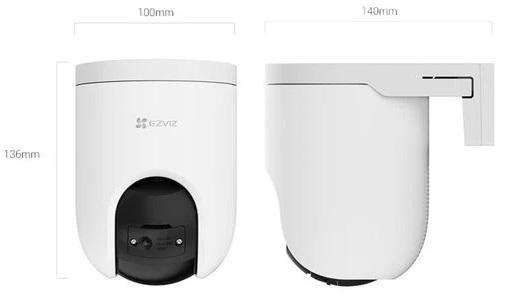

Dimensions: 100 ￃﾗ 136 ￃﾗ 140mm (3.94 ￃﾗ 5.35 ￃﾗ 5.51 inch)
Packaging Dimensions 140 ￃﾗ 140 ￃﾗ 192mm (5.51 ￃﾗ 5.51 ￃﾗ 7.56 inch)
Weight Net Weight: 539.7g; With Package: 823.6g For EU Standard Version
In The Box
H8c Pro 3K Camera
Drill Template
Screw Kit
Waterproof Kit
Power Adapter
Regulatory Information
Quick Start Guide
Certifications
Certifications: CE / UL / RoHS / WEEE / REACH
