Stunning. Streamlined. Sustainable

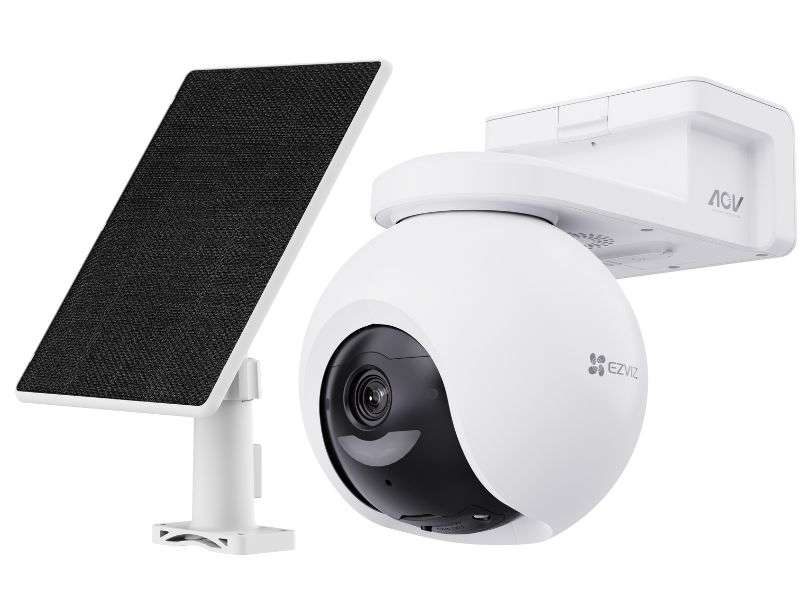

Ideal for any property where power supply is unreliable, the HB8 Pro Kit excels at a perfect combination of smartness and reliability, catering to diverse needs with unparalleled ease. Monitoring of larger areas is now clearer than ever thanks to the camera's amazing 4K video quality and 360-degree coverage. The kit also has a 5W solar panel that offers an eco-friendly power backup for extended durability and boosts EZVIZ's AOV technology, making all-day recording accessible for all.
Specifications
Model CS-HB8-R200-1M8WFL
Camera
Image Sensor 1/2.8`` 8-Megapixel Progressive Scan CMOS Sensor
Minimum Illumination 0.01 Lux @(F1.2, AGC ON), 0 Lux with IR
Shutter Speed Self-adaptive shutter
Lens 4mm@ F1.2 Diagonal angle: 104`b0 Horizontal angle: 83`b0 Vertical angle:44`b0
PT Angle Pan: 340`b0, Tilt: 75`b0
Day & Night IR-cut filter with auto switch
DNR 3D DNR
Night Vision 15 m
Video & Audio
Max Resolution 4K (3840 `d7 2160`a3`a9
Frame Rate Max. 15fps; Self-adaptive during network transmission
Video Compression H.265 / H.264
Video Bit Rate Ultra-HD; Quad HD; Full HD; Hi-Def; Adaptive bit rate
Audio Bit Rate Self-adaptive
Max. Bitrate 4 Mbps
Network
Wi-Fi Standard IEEE802.11b, 802.11g, 802.11n, 802.11ax
Frequency Range 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth Supports 20 MHz
Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate 11b: 11Mbps, 11g: 54Mbps, 11n: 72Mbps, 11ax: 114Mbps
Wi-Fi Pairing AP pairing
Protocol EZVIZ Cloud Proprietary Protocol
Interface Protocol EZVIZ Cloud Proprietary Protocol
Minimum Network Requirement 8 Mbps
Function
Smart Alarm AI-powered human shape detection AI-powered vehicle shape detection
Two-Way Talk Supports
General Function Anti-Flicker, Heart Beat, Password Protection, Watermark
Storage
Local Storage Supports microSD card (max. 512 GB)
Cloud Storage Supports EZVIZ CloudPlay storage (Subscription required)
General
Operating Conditions -20 `b0C to 50 `b0C (-4 `b0F to 122 `b0F), Humidity 95% or less (non-condensing)
IP Grade IP65
Power Supply DC 5 V / 2 A (Adapter needs to be purchased separately)
Battery Capacity 10,400 mAh
Power Consumption Max.10 W
Product Dimensions 184 `d7 102 `d7 168 mm (7.24 `d7 4.02 `d7 6.61 inch )
Packaging Dimensions 205 `d7 145 `d7 194 mm (8.07 `d7 5.70 `d7 7.64 inch)
Product Weight 780 g (21.51 oz)
Weight with Package 1312 g (46.61 oz)
Specifications
Model CS-PSP5-R100-3M
Performance Parameter
Power Voltage 5.7 V
Power Current 877 mA
Open Circuit Voltage 6.9 V
Short Circuit Current 0.92 A
Max. Power 5 W
Interface Type-C
Solar Cell Efficiency 23.5%
Operating Conditions -20 `b0C to 60 `b0C (-4 `b0F to 140 `b0F), Humidity 90% or less (non-condensing)
IP Grade IP65
Mechanical Data
Solar Cell Type Monocrystalline solar cells
Power Cable Length 3 meter
Product Dimensions 202.7 `d7 148 `d7 2.5 mm (7.98 `d7 5.83 `d7 0.10 inch)
Packaging Dimensions 225 `d7 170 `d7 70 mm (8.86 `d7 6.69 `d7 2.76 inch)
Weight 656 g (23.14 oz)
In the box
In the box - HB8 Pro Camera
- Solar Panel 5W
- Drilling Template
- Adjustable Mounting Bracket
- Screw Kit `d7 2
- Type-C Cable
- Regulatory Information `d7 4
- Quick Start Guide `d7 2
Certifications
Certifications CE / REACH / WEEE / RoHS
