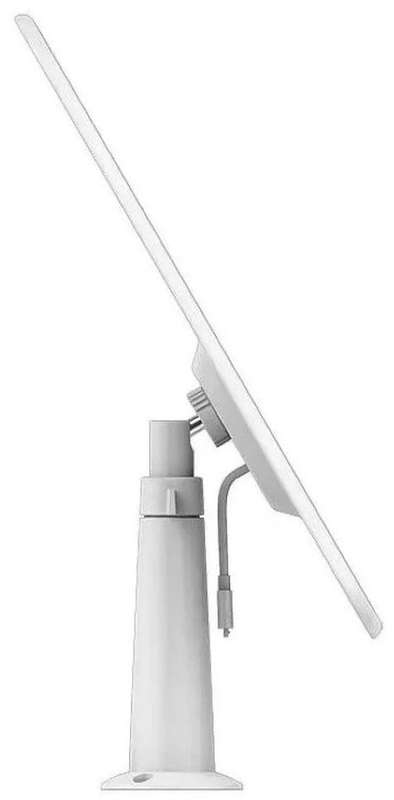

EZVIZ SOLAR PANEL E BATTERY CAMERAS (C) - E-CESP
Solar Charging Panel
Specifications
Model: CS-CMT-Solar Panel-E
Performance Parameter
Data from EZVIZ Labᅡメs test results under standard testing conditions (STC): 1000W/m2, AM1.5,25?, (38000-40000 LUX)
Power Voltage: 6V ᅡᄆ 5%
Max. Power Current: 1030 mA ᅡᄆ 5%
Max. Power: 6.18 W
Transformation Efficiency: 21.6%
Operation Temperature: -20ᅡᄚC - 60ᅡᄚC (-4ᅡᄚF - 140ᅡᄚF); Humidity 90% or less (non-condensing)
(The working environment temperature range for battery camera charging should be maintained at 0-45ᅡᄚC )
IP Grade: IP65
Mechanical Data
Manufacturing Process : Monocrystalline Solar Cells, PET Laminated Wood
Product Dimensions: 283.7 ᅢラ 185.7 ᅢラ 2.4 mm (11.17 ᅢラ 7.31 ᅢラ 0.09 inch)
Packaging Dimensions: 300 ᅢラ 202.5 ᅢラ 78 mm (11.81 ᅢラ 7.97 ᅢラ 3.07 inch)
Net Weight: 484g (17.07 oz)
With Package: 854g (30.12 oz)
In The Box
EZVIZ Solar Panel-E
Adjustable Mounting Bracket
Screw Kit
Drill Template
Quick Start Guide
Certifications
Certifications: CE / FCC / UKCA / WEEE / REACH / RoHS
