EZVIZ SOLAR PANEL E BATTERY CAMERAS (C)

Please note: 1 or more of the same item/s are shipped within a day or 2 - adding different items may mean delays in shipping due to items being from multiple suppliers/warehouses.

EZVIZ SOLAR PANEL E BATTERY CAMERAS (C) - E-CESP

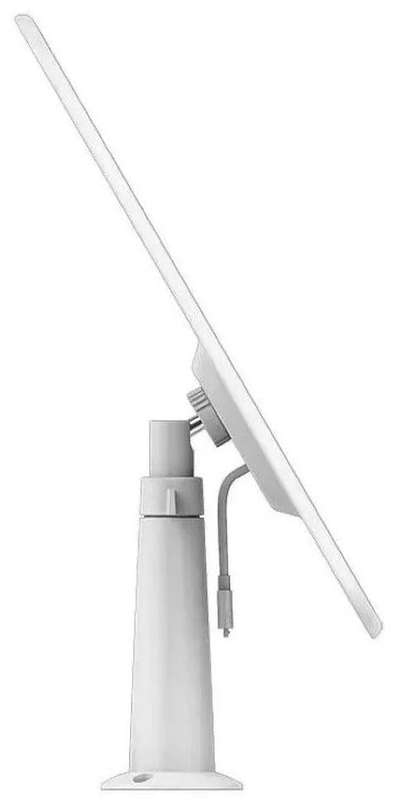

Solar Charging Panel

Specifications

Model: CS-CMT-Solar Panel-E

Performance Parameter

Data from EZVIZ Lab’s test results under standard testing conditions (STC): 1000W/m2, AM1.5,25?, (38000-40000 LUX)

Power Voltage: 6V ± 5%

Max. Power Current: 1030 mA ± 5%

Max. Power: 6.18 W

Transformation Efficiency: 21.6%

Operation Temperature: -20°C - 60°C (-4°F - 140°F); Humidity 90% or less (non-condensing)

(The working environment temperature range for battery camera charging should be maintained at 0-45°C )

IP Grade: IP65

Mechanical Data

Manufacturing Process : Monocrystalline Solar Cells, PET Laminated Wood

Product Dimensions: 283.7 × 185.7 × 2.4 mm (11.17 × 7.31 × 0.09 inch)

Packaging Dimensions: 300 × 202.5 × 78 mm (11.81 × 7.97 × 3.07 inch)

Net Weight: 484g (17.07 oz)

With Package: 854g (30.12 oz)

In The Box

EZVIZ Solar Panel-E

Adjustable Mounting Bracket

Screw Kit

Drill Template

Quick Start Guide

Certifications

Certifications: CE / FCC / UKCA / WEEE / REACH / RoHS
