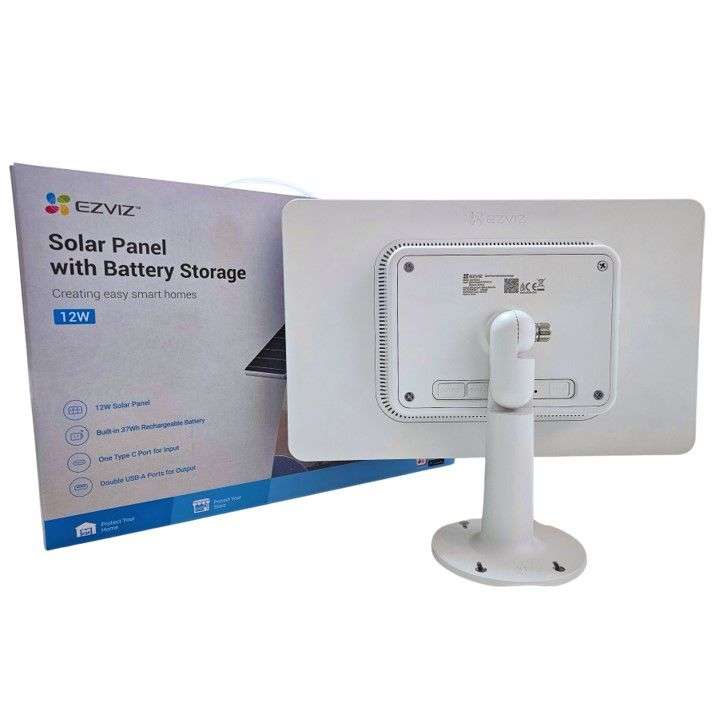

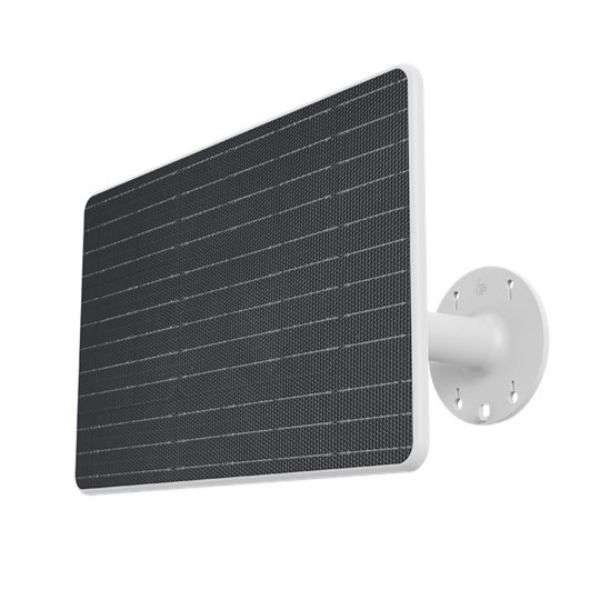

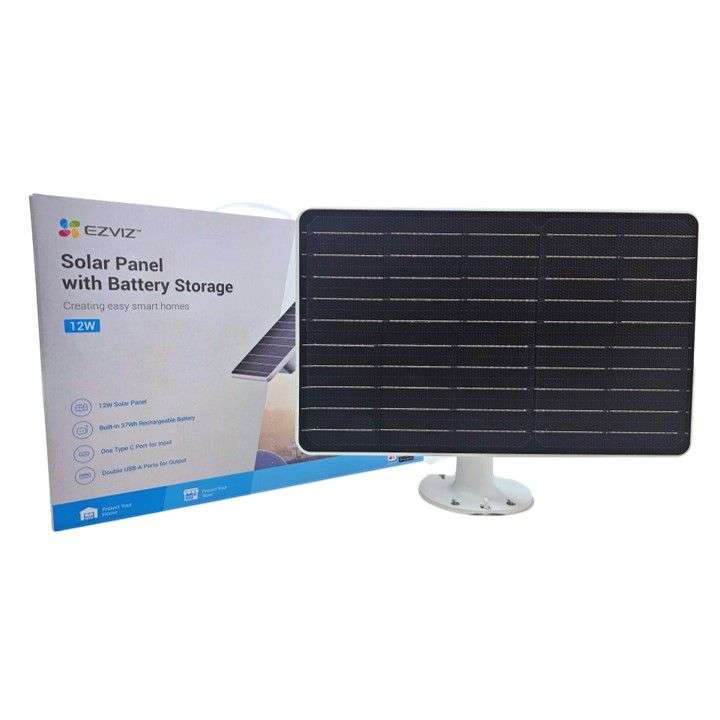

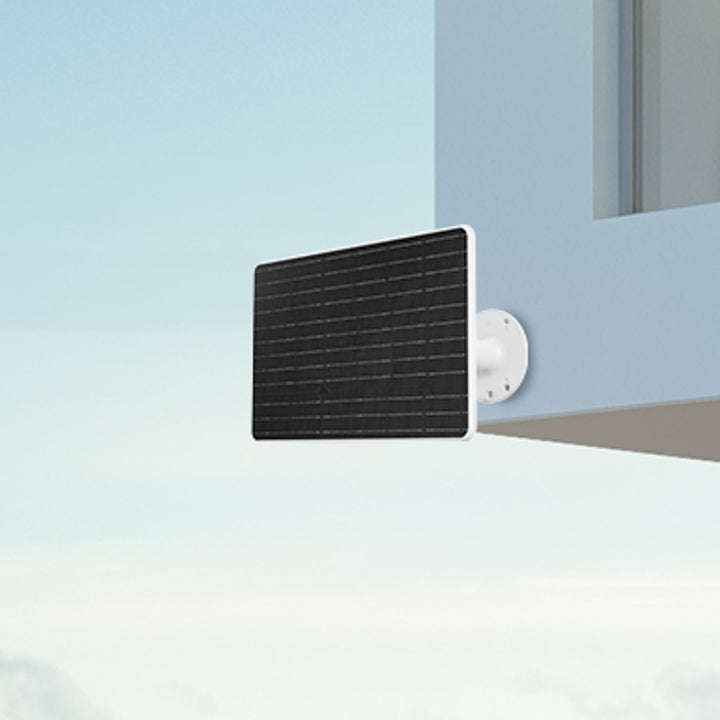

PBC12 Solar Panel with Battery Storage - 12W - Harness sunlight to generate and store clean energy
Model Capacity: Designed to Charge All EZVIZ Outdoor Battery Cameras with type C.

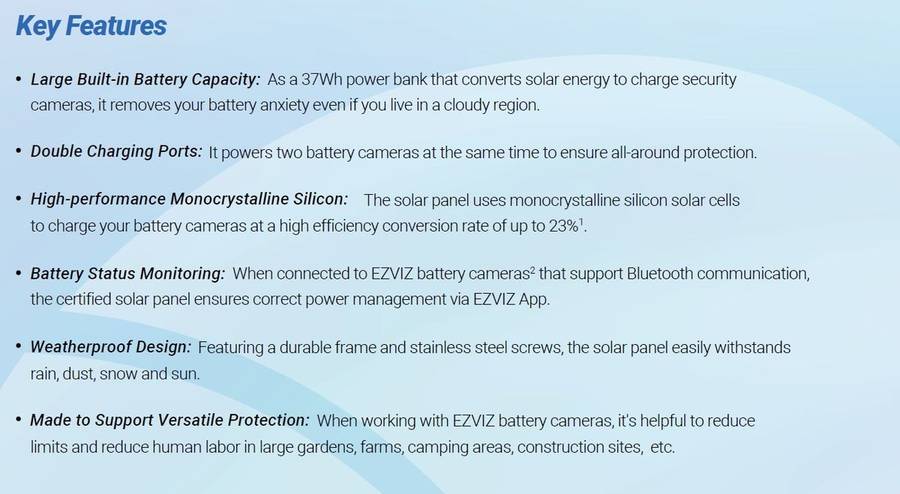

Key Features:
- Large Built-in Battery Capacity: As a 37Wh power bank that converts solar energy to charge security cameras, it removes your battery anxiety even if you live in a cloudy region.
- Double Charging Ports: It powers two battery cameras at the same time to ensure all-around protection.

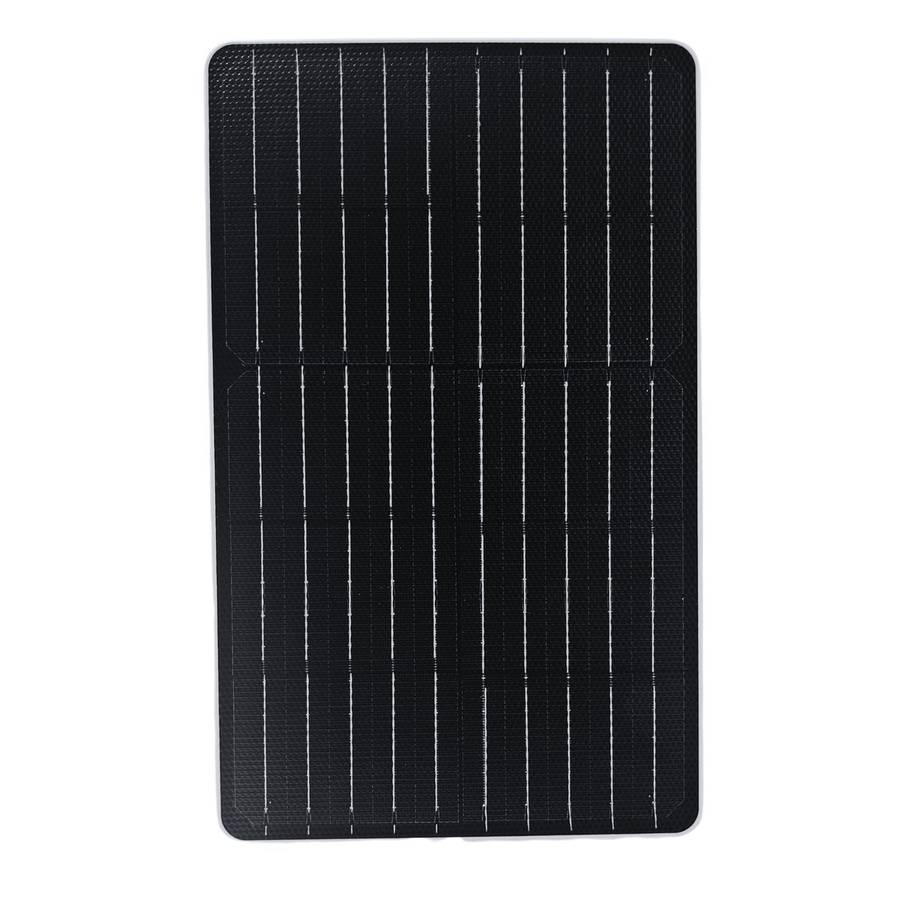

- High-performance Monocrystalline Silicon: The solar panel uses monocrystalline silicon solar cells to charge your battery cameras at a high-efficiency conversion rate of up to 23%.
- Battery Status Monitoring: When connected to EZVIZ battery cameras that support Bluetooth communication, the certified solar panel ensures correct power management via EZVIZ App.
- Weatherproof Design: Featuring a durable frame and stainless steel screws, the solar panel easily withstands rain, dust, snow and sun.
- Made to Support Versatile Protection: When working with EZVIZ battery cameras, it's helpful to reduce limits and reduce human labor in large gardens, farms, camping areas, construction sites, etc.

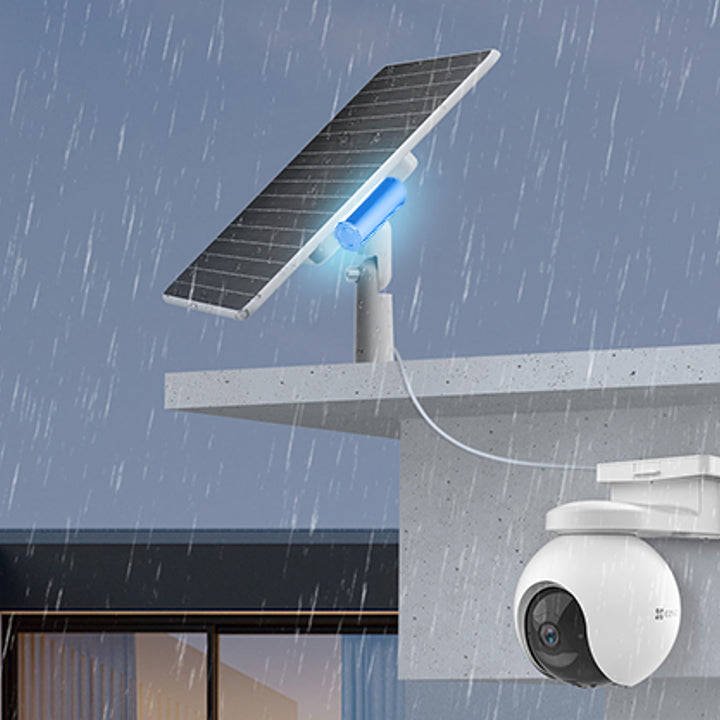

Always on guard with green power supply
This innovative solar panel provides your EZVIZ outdoor battery camera with uninterrupted green energy and reduces human labor for frequent camera recharging. Notably, our solar panel boasts an impressive onboard storage capacity of up to 37Wh, ensuring that your camera gets the backup power it needs even when the sun takes a break.

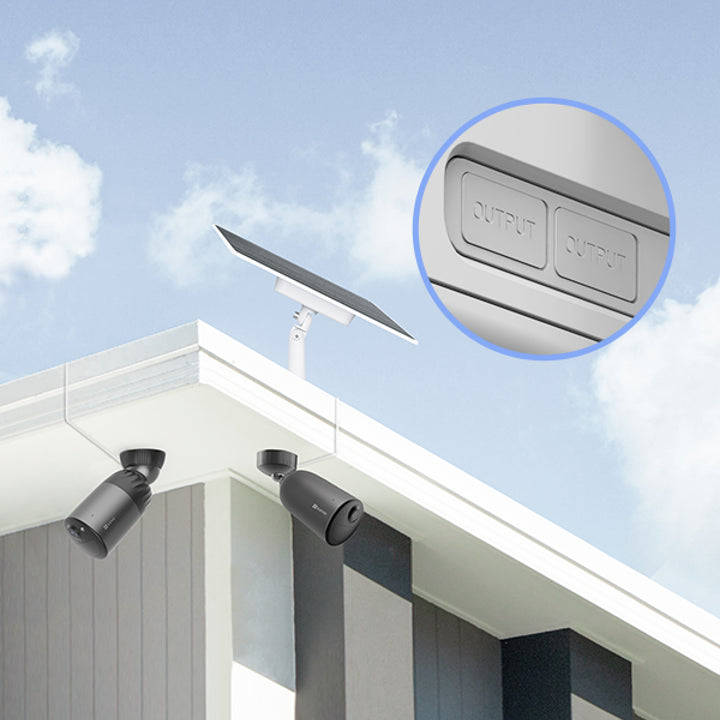

Power two cameras at a time
The solar panel can be connected to two battery-powered cameras and charge them simultaneously. Mount your security camera where you need it, then find a sunny spot to install the solar panel with the included 3-meter-long cables.

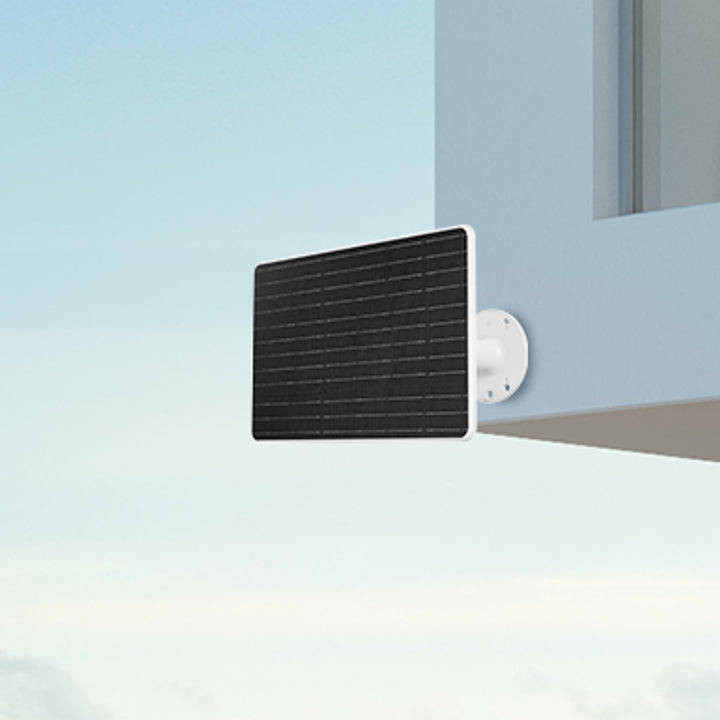

Easy installation, lasting sunlight

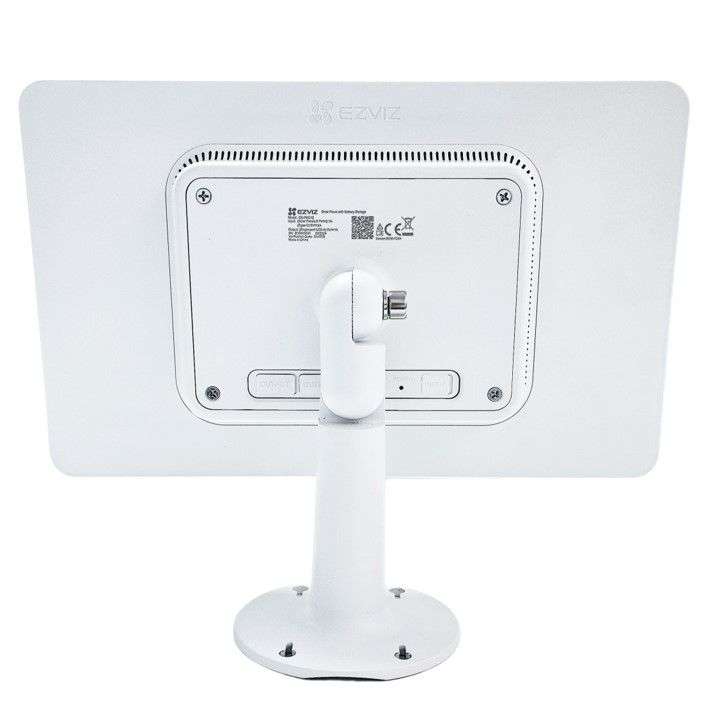

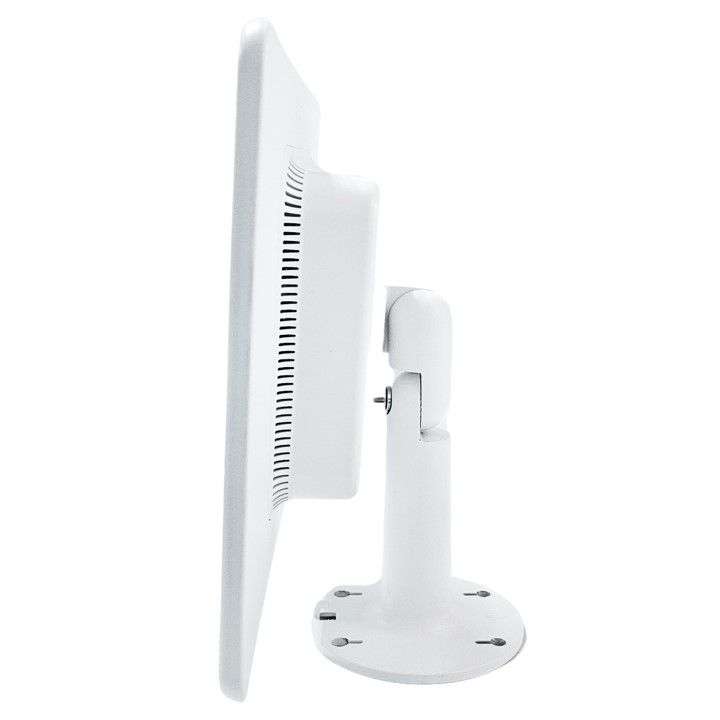

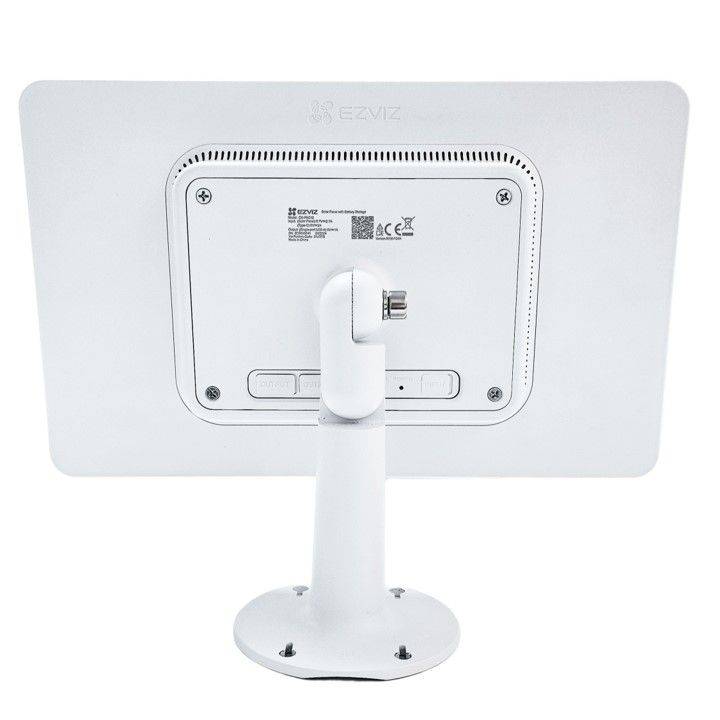

Enjoy flexibility in selecting the perfect spot for optimal sun exposure with our adjustable mounting bracket and accessories.
Your trusted ally for an outdoor space
A perfect companion for the EZVIZ battery cameras that take care of larger areas, the solar panel helps greatly reduce human labor and energy bills.
Harness sunlight to generate and store clean energy

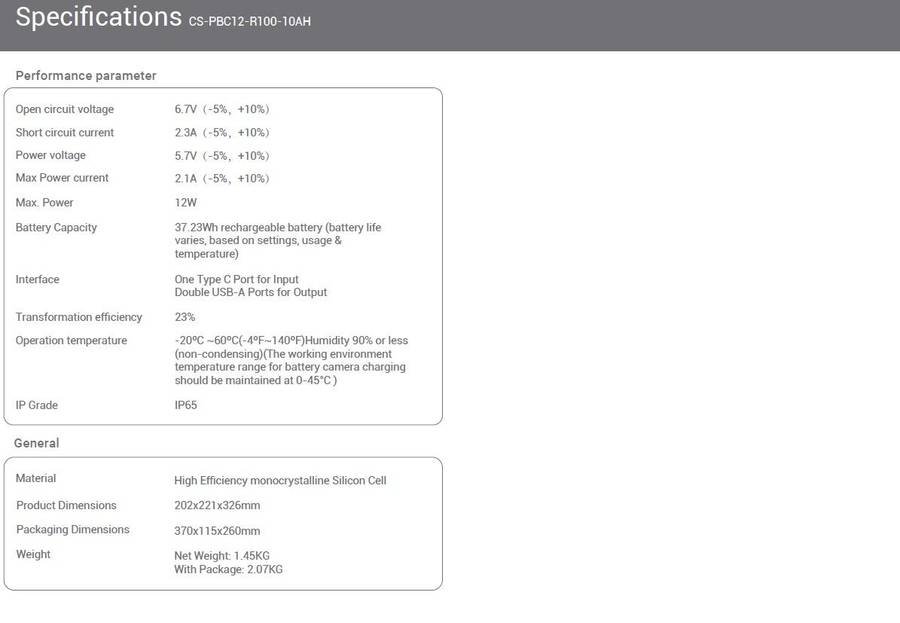

Specifications
Model CS-PBC12-R100-10AH
Performance Parameter:
Open Circuit Voltage 6.7V (-5%, +10%)
Short Circuit Current 2.3A (-5%, +20%)
Power Voltage 5.7V (-5%, +10%)
Max Power Current 2.1A (-5%, +20%)
Max. Power 12W
Battery Capacity 37.23Wh rechargeable battery (battery life varies based on settings, usage & temperature)
Interface One Type C Port for Input Double USB-A Ports for Output
Transformation Efficiency 0.23
Operating Conditions -20 C to 60 C (-4 F to 140 F ), Humidity 90% or less (non-condensing) (The working environment temperature range for battery camera charging should be maintained at 0-45 C )
IP Grade IP65
General:
Material High-efficiency monocrystalline silicon cell
Product Dimension 202x221x326mm
Packaging Dimensions 370x115x260mm
Weight Net Weight: 1.45KG With Package: 2.07KG

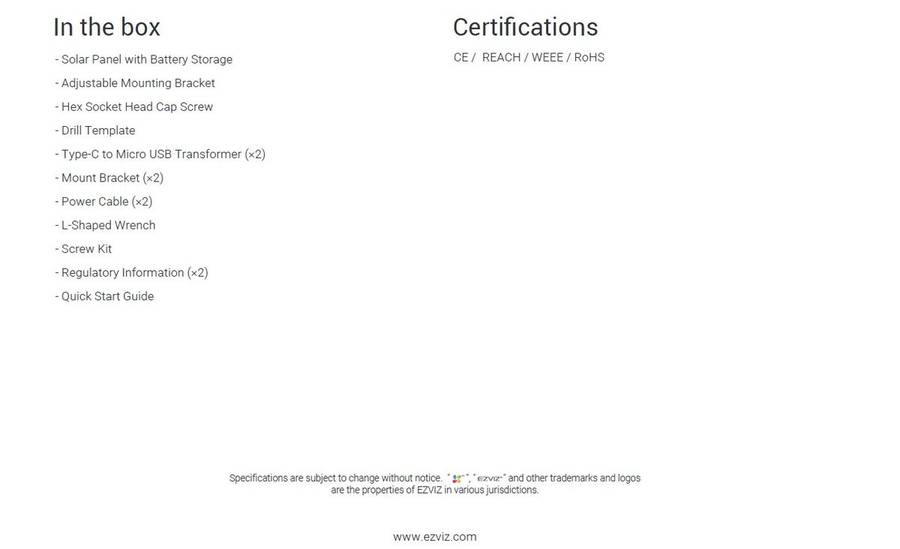

What's in the box
1 x Solar Panel with Battery Storage
1 x Adjustable Mounting Bracket
1 x Hex Socket Head Cap Screw
1 x Drill Template
2 x Type-C to Micro USB Transformer
2 x Mount Bracket
2 x Power Cable
1 x L-Shaped Wrench
1 x Screw Kit
2 x Regulatory Information
1 x Quick Start Guide
