DOES NOT INCLUDE HDD - Supports up to 8TB but HDD MUST BE BOUGHT SEPARATELY.
Features:
- HDMI/VGA Output
- Supports High-Resolution Cameras of Up to 3K Video Quality
- Wi-Fi Range Up to 100 m (300 ft)
- Supports ONVIF Conformant Camera
- H.265 Video Technology
- Up to 8TB Storage
X5S - Wireless NVR with HDMI & VGA Outputs, Reliable, easy storage for your security system.
The X5S is a large-capacity storage solution tailored to support multi-camera security systems for 24/7 recording in even high video quality. Users can confidently save and keep important footage on the local NVR device, which ensures smooth storage and strict data protection.

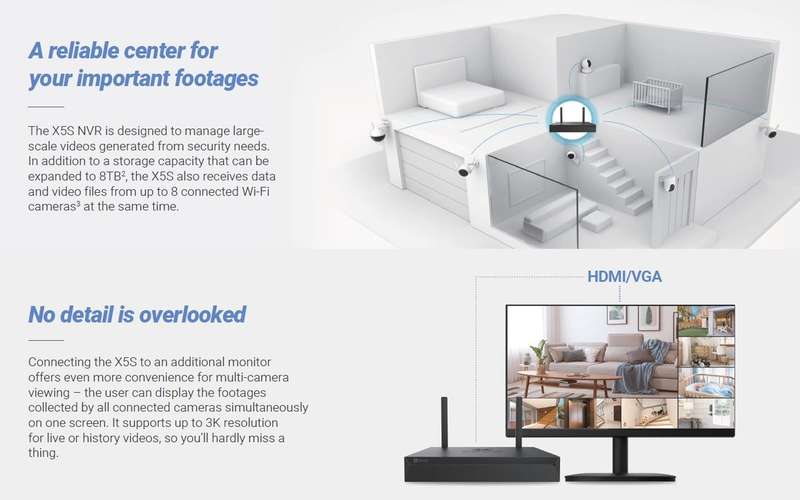

A reliable center for your important footage
The X5S NVR is designed to manage large-scale videos generated from security needs. In addition to a storage capacity that can be expanded to 8TB, the X5S also receives data and video files from up to 8 connected Wi-Fi cameras at the same time.
No detail is overlooked
Connecting the X5S to an additional monitor offers even more convenience for multi-camera viewing - the user can display the footage collected by all connected cameras simultaneously on one screen. It supports up to 3K resolution for live or history videos, so you'll hardly miss a thing.
Use H.265 to store and play large files efficiently
The X5S uses the H.265 video technology to compress high-resolution video files while maintaining the same video quality and smooth viewing experience for playbacks. You won't have to worry about large video files taking up too much of your storage space or being too big to load fast - the H.265 technology reduces their sizes by up to 50% and requires only 50% of the bandwidth when compared to H.264.
Specifications
Model: CS-X5S-R100-4W, CS-X5S-R100-8W
IPC Access Capability:
Wireless/Wired IPC Access Capability 3K x4/3K x8
Wired IPC Access Capability: 3K x4 (X5S-4W) / 3K x8 (X5S-8W)
Network Parameters:
Antenna Number 2
Max Wireless Range 100m
Radio Frequency 2.4G
Ethernet Port One 10/100M adaptable Ethernet interface
Required Access Bandwidth 50 Mbps/100 Mbps
Video Output:
VGA 1 channel (identical to HDMI output) resolution up to 1920x1080/60Hz
HDMI 1 channel resolution up to 2592x1944/30HZ
Audio/Video Codec:
Recording Resolution 3K / 2K+ / 2K / 1080p / UXGA / 720p / VGA / 4CIF / 2CIF / CIF / QCIF
Video Encoding H.265, H.264
Decode Playback Supports 4x3K/Supports 8x3K
Video Recording Management:
Video Recording Mode Manual video recording; Motion detection recording; Scheduled video recording; Event-triggered recording
Backup Mode Hard disk backup, Internet application backup
Playback Mode Instant playback ; Normal playback ; Event playback ; Tag playback; Log event playback
Open Protocol:
Open Protocol Support HIKVISION, ONVIF (V.2.5)
HDD:
Interface Type One built-in SATA port
Capability Supports 1TB to 8TB 3.5-inch HDD
External Interface:
Audio Input/ Output Not support
Hardware Reset Supports
USB2.0 Interface 2
Dimensions:
Product Dimensions 235 × 270 × 44.5 mm (9.25 × 10.6 × 1.75 inch)
Packaging Dimensions 387 × 362 × 75 mm (15.2 × 14.3 × 3 inch)
Power Supply:
DC 12V/1.5A
Consumption:
Standby status 8W
Weight:
Net Weight 932 g
What's in the box
1 x X5S NVR
1 x Power Adapter
1 x Mouse
1 x Screw Kit
2 x Regulatory Information
1 x Quick Start Guide
