SELECTED OPTION:
TYPE: 150W
Version description:
This electronic load module is divided into two versions, the electronic load version and the version with MODBUS function. The difference is that the power supply with MODBUS version has RS485 communication interface, which can be set or collected by the host computer software, or Communicate with computers, PLC, DCS, smart meters and other equipment! In addition, other functions are the same!
Features:
1. It can display voltage, current, power, ampere-hour, watt-hour, discharge time, internal resistance, temperature
2. Discharge current can be set, constant current discharge
3. Automatic statistics of discharge ampere hour and discharge time
4. Pauses and accumulates discharge data
5. Intelligent temperature control of the fan, the fan starts when the temperature exceeds 45 degrees
6. Multiple protection mechanisms, anti-connection protection, over-current protection, under-voltage protection, over-power protection, over-heat protection
7. With RS485 serial port, MODBUS protocol communication can be realized
Product parameters:
Module power supply voltage: DC 12V-36V
Measuring voltage: DC 0-100V
Discharge current: 0A-10A continuously adjustable
Discharge power: 150W maximum (Note: Do not use over power!!)
Working temperature: -10a~+75a
Resolution: voltage 0.01V, current 0.01A
Accuracy: voltage 1% ± 1 word, current 1% ± 1 word
Undervoltage protection: Yes (0-99.9V)
Over power protection: Yes (1-150W)
Overheating protection: Yes (the fan starts when the temperature exceeds 45 degrees, and the overheating protection is 85 degrees)
Input reverse connection: Yes

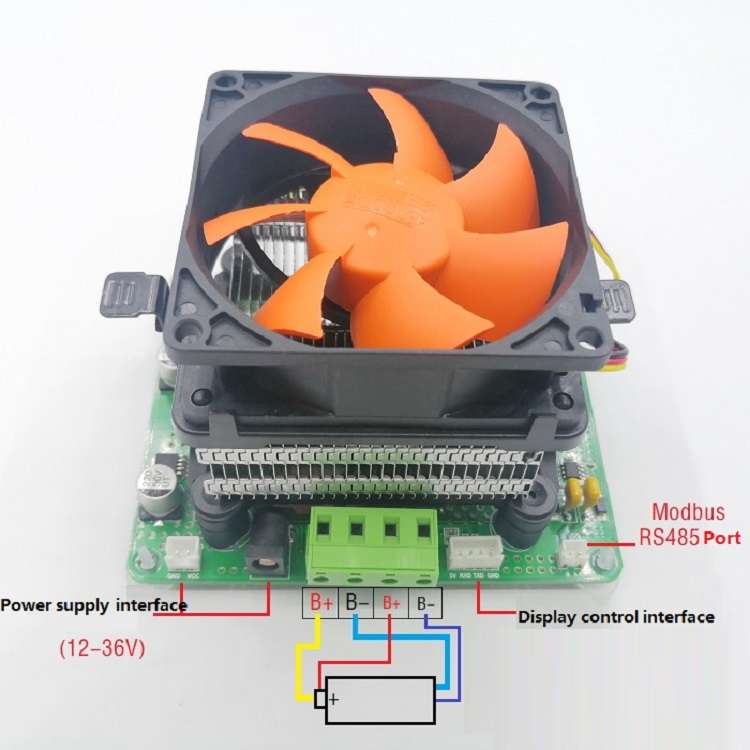

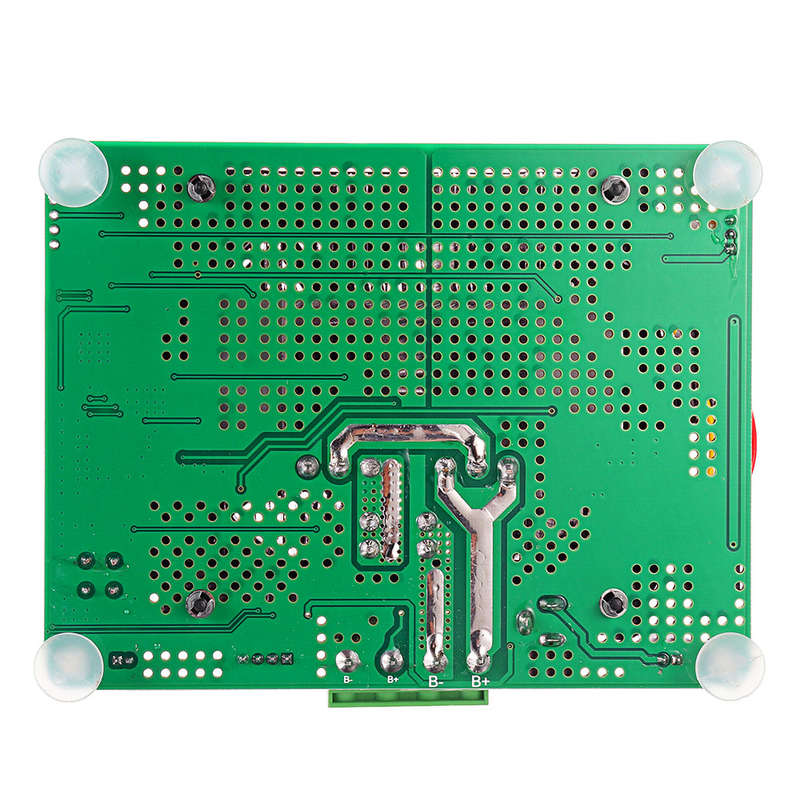

Wiring mode: small silk screen B+ B-for voltage measurement, large silk screen B+ B-for current measurement

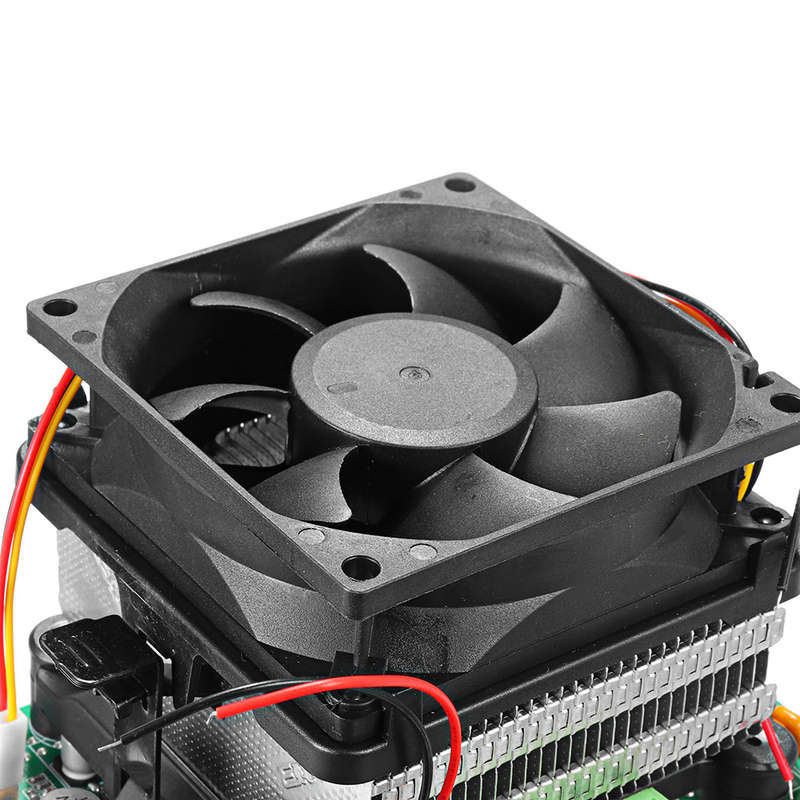

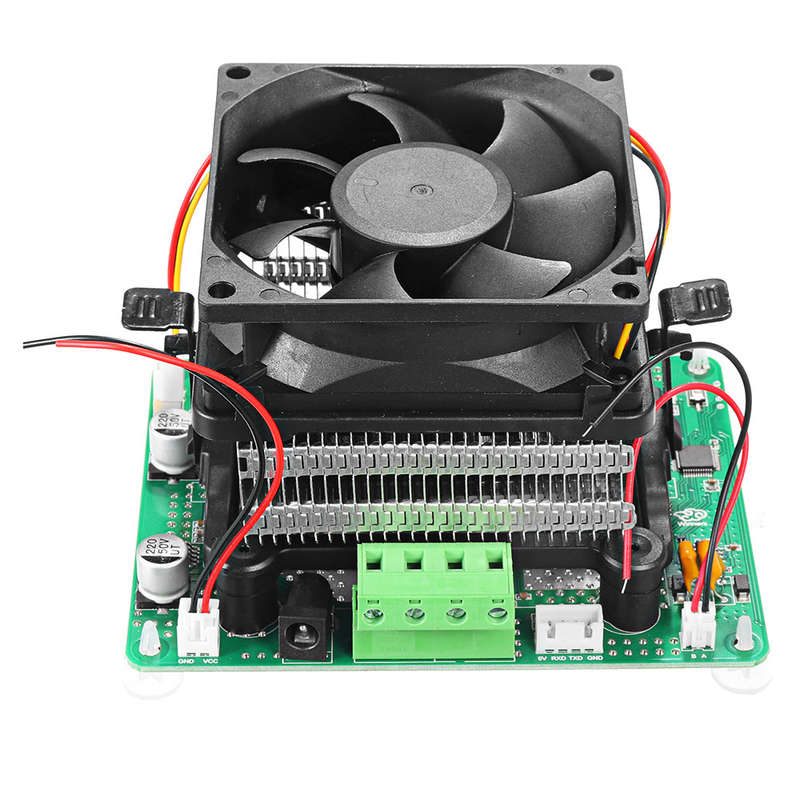

Fan: 8020 fan, speed 4000
Net weight: 322g
Package weight: 390g

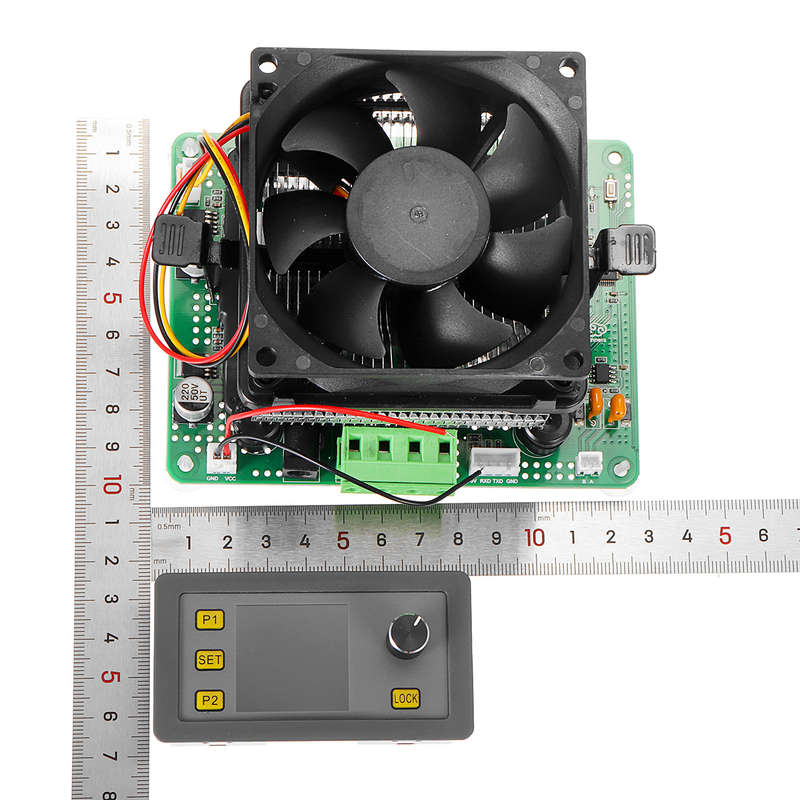

Module size:
Power board part: 123mm*95mm * 88mm(length*width*height)

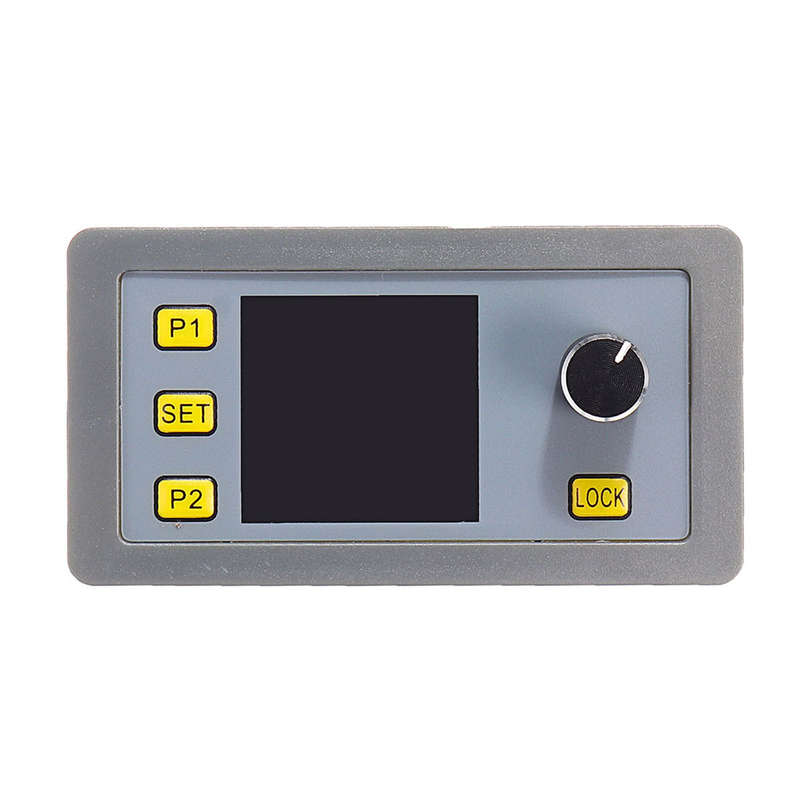

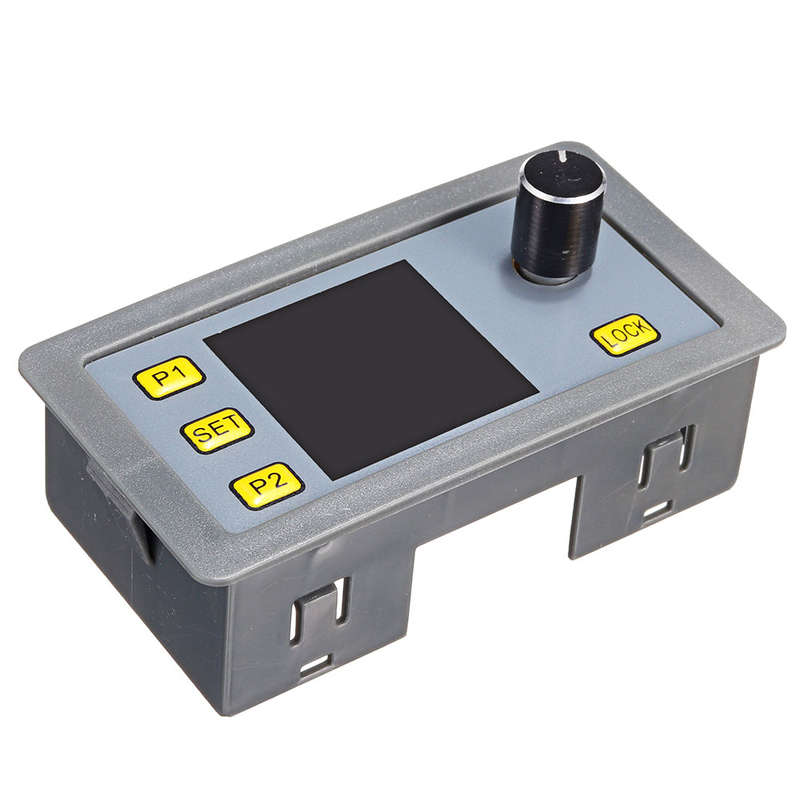

Display part: 79mm*43mm*46mm(length*width*height)
Outer carton packaging size: 175mm x 95mm x 115mm
Hole pitch size:
Power board part: 113mm*85mm(length*width )
Display part: 76mm*39mm(length*width )
Package included:
1 x Electronic Load Module
1 x LCD screen module
