Specification:
Brand: MAMBA

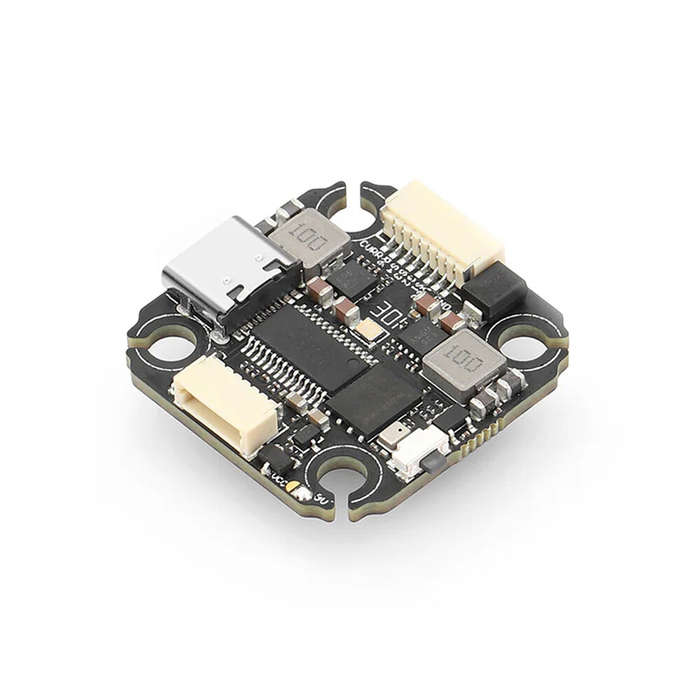

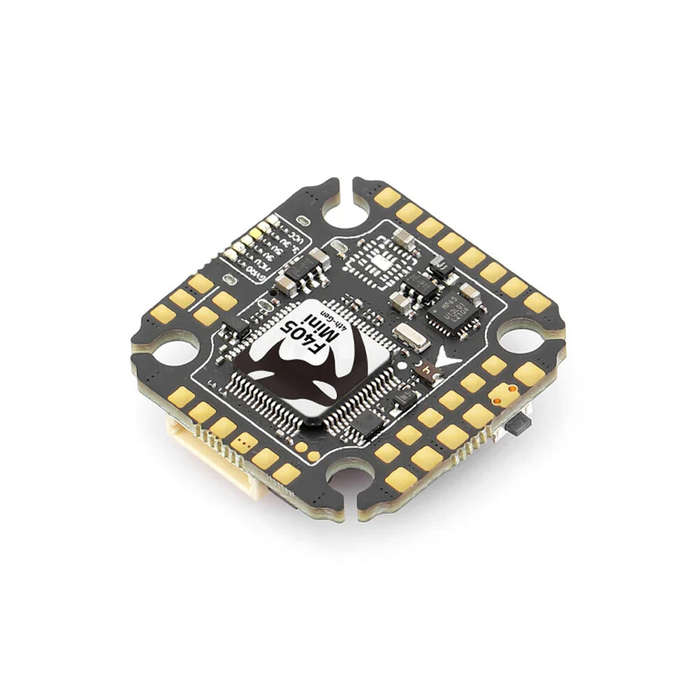

Item Name: MK4 F405 MINI Flight Controller
MCU: STM32F405
Frequency: 168MHz
Gyro: Version: ICM42688P
OSD: AT7456E
Blackbox: 16M Memory
Barometer: SPL06
Uarts: 6 Set
Receiver: TBS/SBUS/IBUS/DSM
RSSI Pad: /
I2C: Yes
F.Port: Yes
Buzzer Pad: Yes
Curr Pad: Yes
ESC Signal: 6 Set
BEC 3.3V: 0.5A
BEC 5V: 2.5A
BEC 9V: 2A
MB Led: /
BF Led: Yes
Air Unit Port: Yes
Wifi: /
VTX Switch: Yes
BEC Protection: Yes
Receiver Protection: Yes
TVS Protection: Yes
Target: ICM42688P:MAMBA F405_2022B
Input: 6S Lipo
Soft Ware: Betaflight
Mounting: 20.0x20.0mm, Ø 3/Ø 2
Size: 29.0x29.5x6.5mm
Weight: 6.0g
Package Included:
1 x MAMBA MK4 F405 MINI Flight Controller
