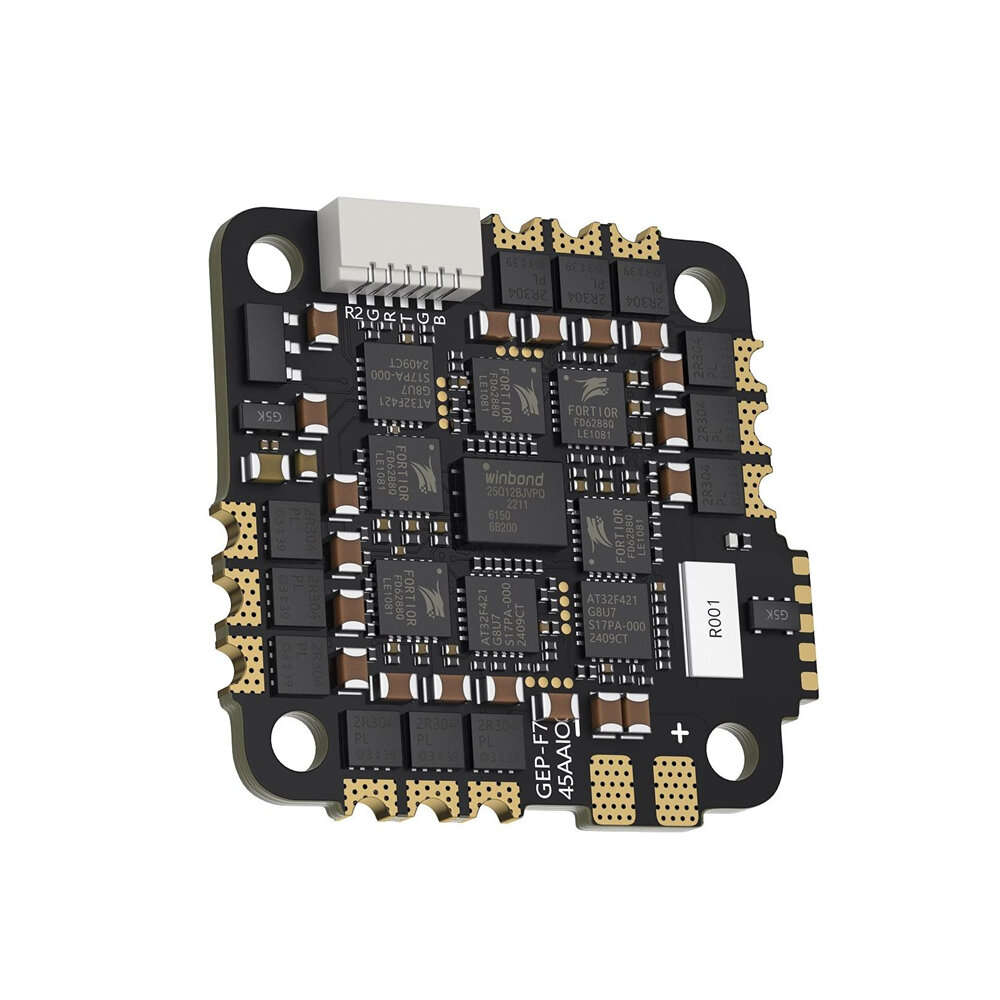

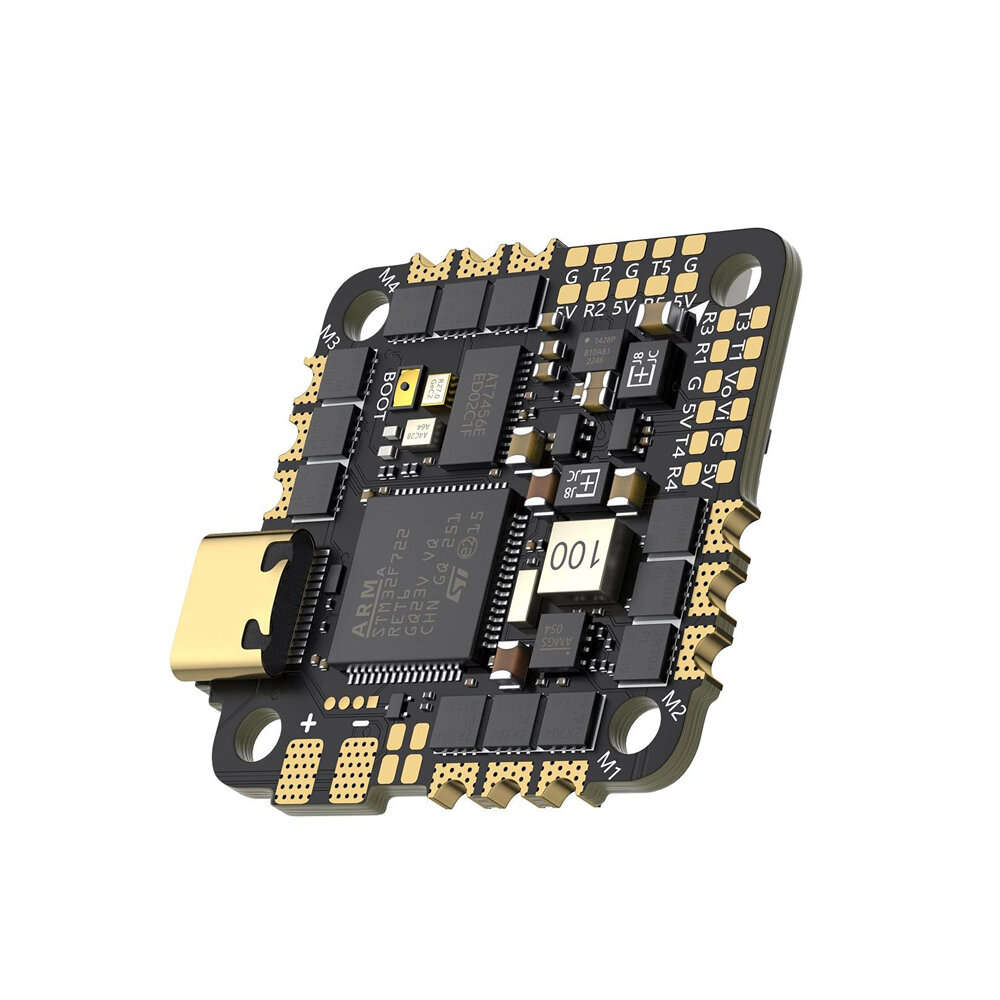

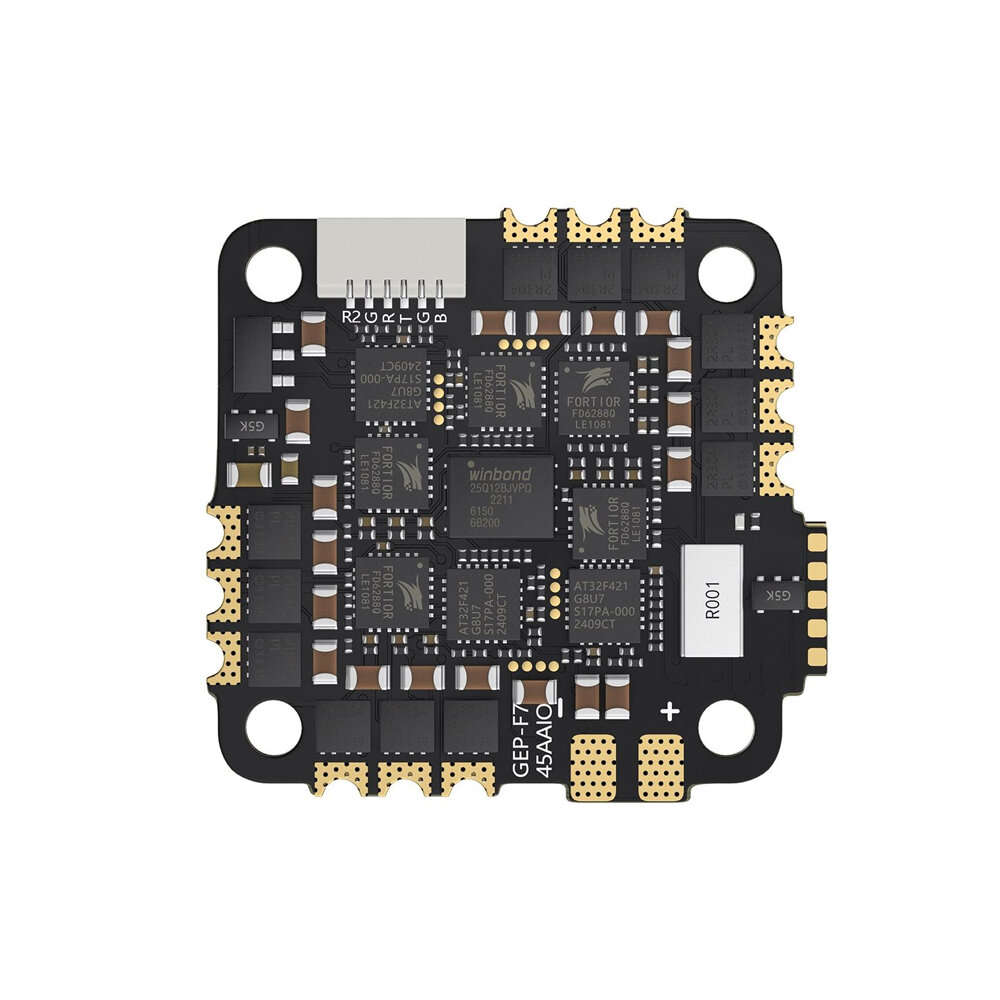

F722 + 32Bit 45A - 25.5x25.5mm GEPRC TAKER F722 45A 32Bit AIO STM32F722 Flight Controller 2-6S Brush

Description:
The TAKER F722 45A 32Bit AIO features the STM32F722 MCU paired with the ICM42688-P (SPI) gyro, delivering powerful performance and fast processing.
It offers 5 full UART ports to support various external devices. A dedicated 6-pin port on the bottom allows direct plug-in for HD VTXs, reducing soldering and simplifying installation.
The 32-bit ESC firmware provides smooth control. Supports 2—6S batteries input, 45A continuous current, and 55A burst (10s). It also supports OSD tuning, buzzer, LED, and more, all in a lightweight 9.2g package.

Feature:
- Smooth throttle response with 32-bit ESC firmware.
- Built-in barometer, compatible with INAV firmware.
- Equipped with 42688-P gyro for stable and reliable performance.
- Supports 2—6S battery input, 45A continuous current, 55A burst (10s).
- Direct plug-in support for HD VTXs, no soldering, and easy installation.
- Powered by STM32F722 MCU for faster processing.
- Integrated 16MB Blackbox for flight data logging.
- Supports OSD tuning, buzzer, LED, and more.
- Features 5 full UART ports for connecting various external devices.

Specification:
Brand: GEPRC
Item Name: TAKER F722 45A 32Bit AIO
MCU: STM32F722
IMU: ICM 42688-P (SPI
Firmware Target: GEPRC_F722_AIO
Blackbox: 16Mb on-board flash memory
OSD: Betaflight OSD w/ AT7456E chip
Uart: R1 T1 / R2 T2 / R3 T3 / R4 T4 / R5 T5
Buzzer: YES
LED: YES
USB: Type-C USB
BEC Output: 5V at 1A
ESC: 32Bit 45A
Continuous Current: 45A
Burst Current: 55A(10A)
Input Voltage: 2~6S (LIPO)
ESC Protocol: Dshot600, Oneshot, Multishot
Dimension: 35mm * 33.5mm
Mounting Hole Size: 25.5 mm * 25.5mm M3 damping to M2 screw

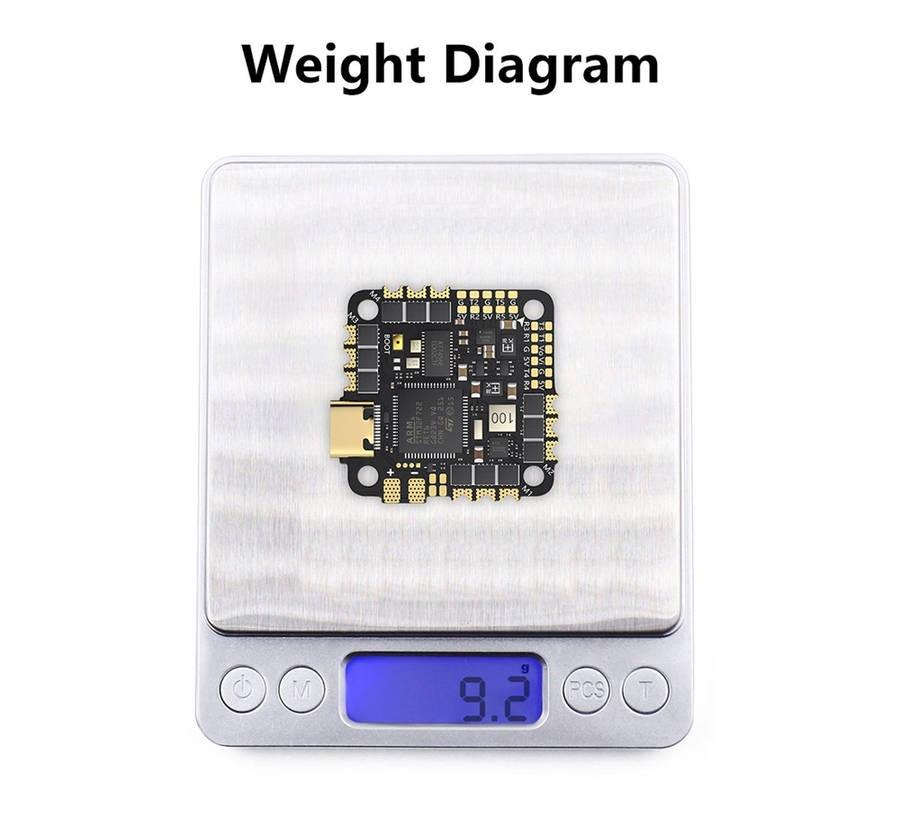

Weight: 9.2g

Package Included:
1× TAKER F722 45A AIO
1× XT30-18AWG wire-7cm
1× 35V 220F capacitor
1× SH1.0-6Pin to GH1.25-8Pin adapter cable
1× SH1.0-6Pin cable
8× M2×6.5mm FC dampening balls (black)
