Descriptions:
F722 Flight controller: the fpv-freestyle flight controller has been designed for optimal control of flight, which allows you to have more control over the flight. The controller is equipped with fpv, ac adapter, and a power cable. it can be used to connect the drone to the controller.
Features:

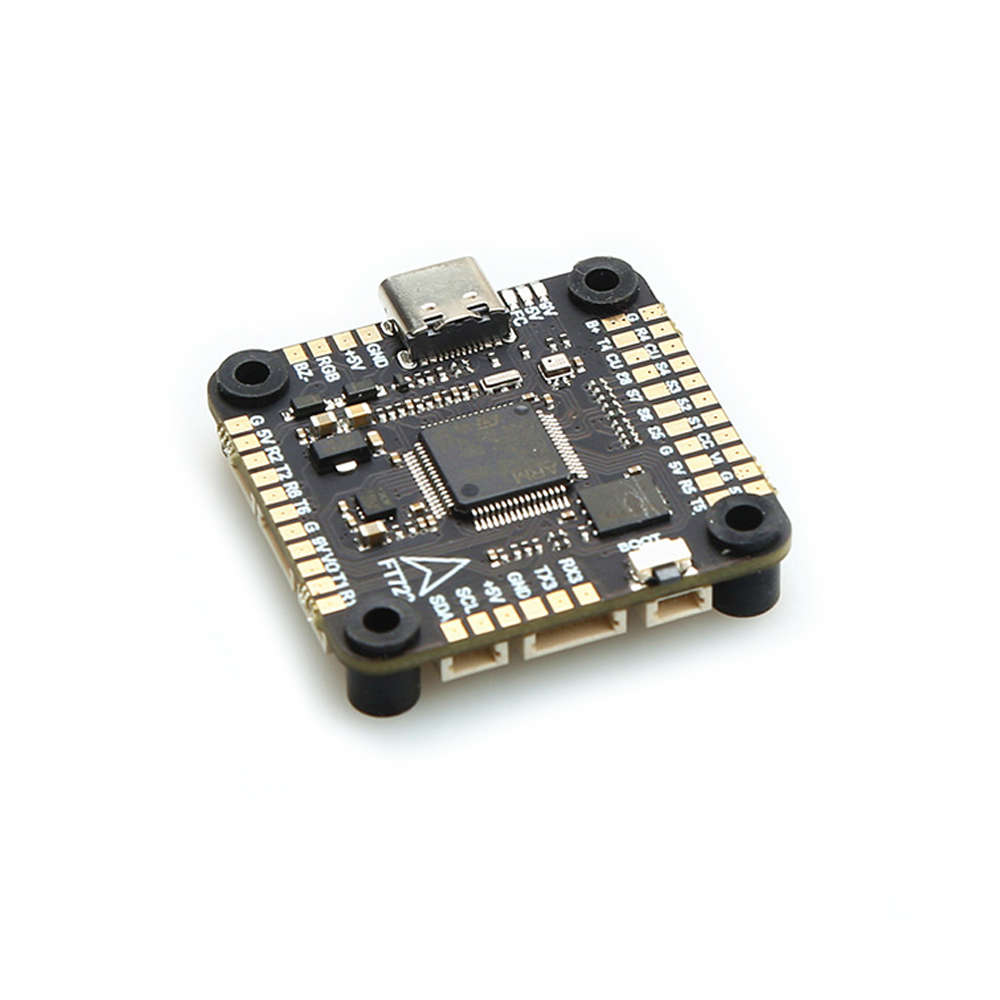

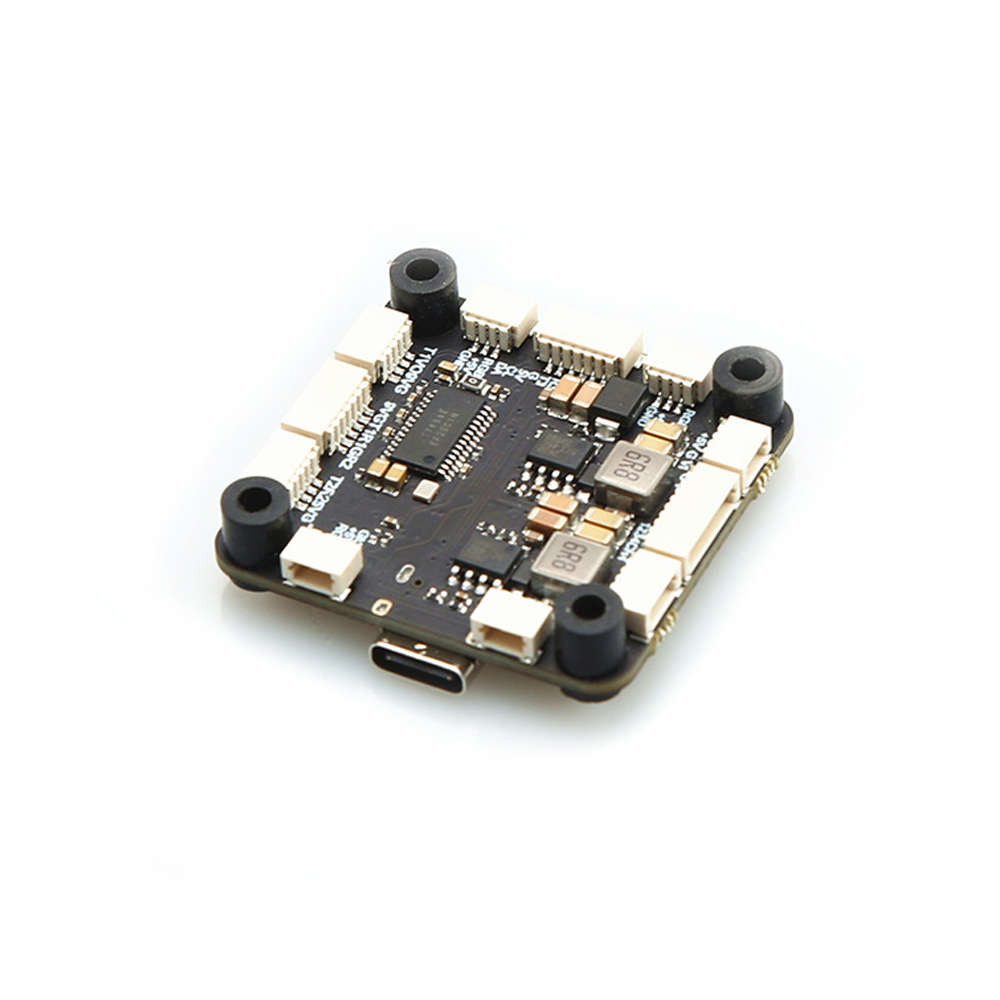

1. The F722 is a 3-8S 36x36mm mini flight controller with a 16MB Blackbox flash memory, 5V 10V dual BEC. Designed for easy maintenance and low interference.
2. The PCB adopts high-end composite material, which has stronger overcurrent capability and good heat dissipation.
MOS adopts imported high current resistance mos, low energy consumption, long life and strong load capacity.
3. Using industrial grade LDO, high temperature resistance. High-quality capacitors, strong filtering performance.
4. Intelligent control: The controller has a built-in low-noise button, which can be controlled remotely by one button.
5. Maximum power: The OSD allows you to control your drone with maximum speed and accuracy, while providing a smoother flight.
Specification:
| Model | Specification |
| F722 F7 Flight Controller | MCU: STM32F722RET6 IMU: ICM-42688 OSD: AT7456E Baro: SPL06-001 Blackbox: 16MB Input voltage: 3-6S Lipo(11.4-36V) 5V-BEC: 5V/2.5A ±0.1V 10V-BEC: 10V/2A(USER1) IO2: USER2 Receiver: ELRS(CRSF), TBS(CRSF), SBUS.IBUS.DSM2.DSMX UART: UART1/2/3/4/5/6 IIC: 12C1 Led Strip: YES Buzzer: 5V ESCsignal: Support PWM, Oneshot125, Oneshot42. Multishot Dshot150, Dshot300, Dshot600 USB: TYPE-C Current port: YES Voltage sensor: YES DFU button: YES Firmware: Betaflight 4.3.1 JHEF7DUAL.HEX Size: 36*36MM Mounting Hole: 30.5*30.5*4MM Weight: 8.8g |
| BLS-60A 4in1 3-6S ESC | Aperture: 30.5 * 30.5mm (after installing the shock absorber ball, the aperture is 3mm) Firmware: BLHELI-S Input voltage: LIPO 3-6S Continuous current: 60A Maximum current: 65A (10 seconds) Processor: EF8BB21 Drive signal support: DShot150-300-600/Multishot/Oneshot/PMW Current sensor: supports Size: 41 * 39 * 5mm Weight: 15g |
Package Included:

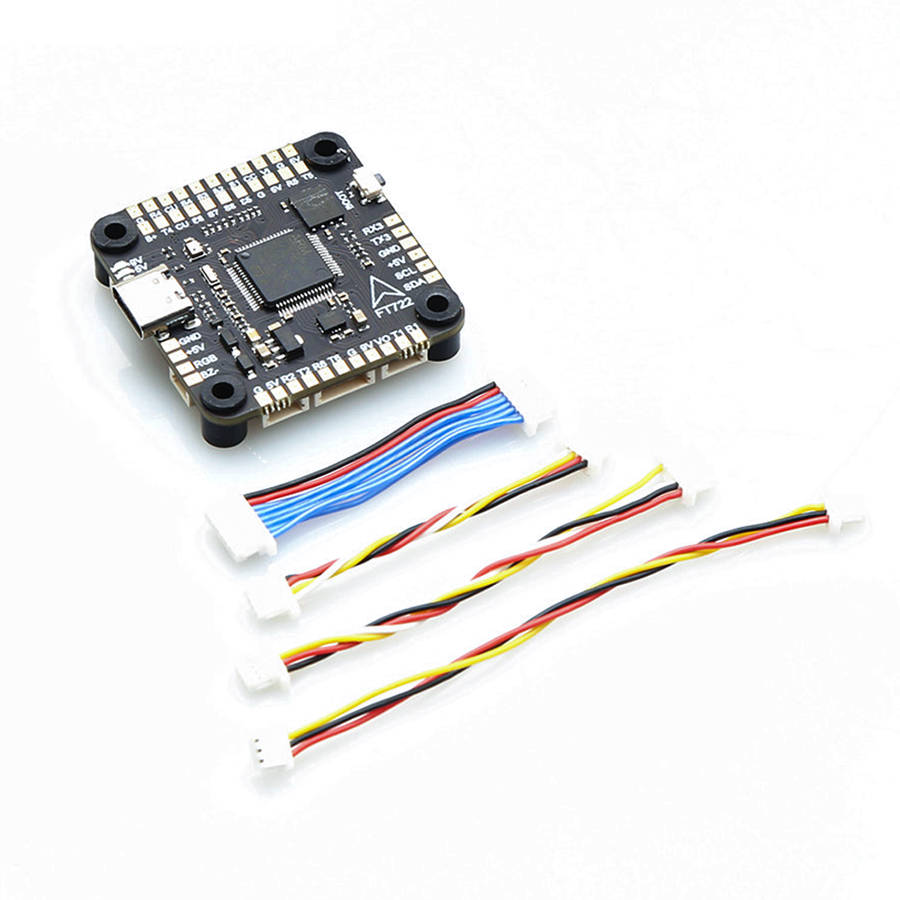

1x F722 FC
or
1x 60A 4in1 ESC
or

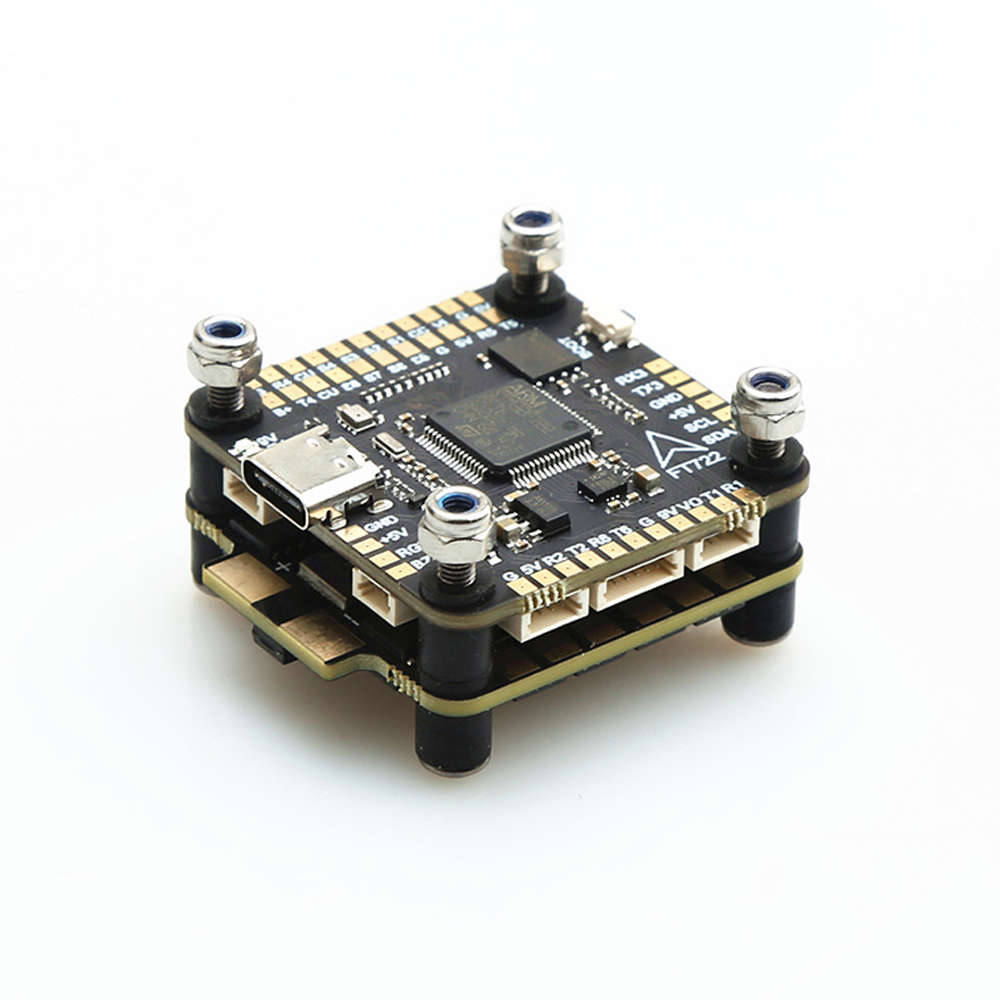

1x F722 60A Stack
