Fan Control Controller AC 220V 4000W Variable Step Down Voltage Converter Transformer Motor Speed

**Please note that this unit does not have a built in regulator so the output voltage may vary with up to 5% at any selected output.

**This unit therefore CANNOT be used as a regular step down transformer, it is used only for specialised use and voltage testing with high power factor loads.

Example: If 100V output is selected the unit may jump between 107V and 113V on its own.

If you require a 220V to 110V step down, please click here for the correct item: https://www.geewiz.co.za/search?controller=search&s=Step+Down+Voltage+Transformer+110v

PRODUCT DESCRIPTION

• Core chip adopts high power thyristor
• With adjustable knob for step-less voltage regulation
• No delay, anti-surge, anti-spike, RC absorption multiple protection
• With universal power socket and power supply light
• With heat dissipation port for fast heat dissipation
• 4000W High-power Motor Fan Variable Thyristor Electronic Voltage Regulator Controller
• Adopts metal shell structure, high-temperature resistance, flame retardant, not easy to rust

PRODUCT SPECIFICATIONS

• Product name: AC 220V 4000W Variable Voltage Regulator
• Material: Metal shell

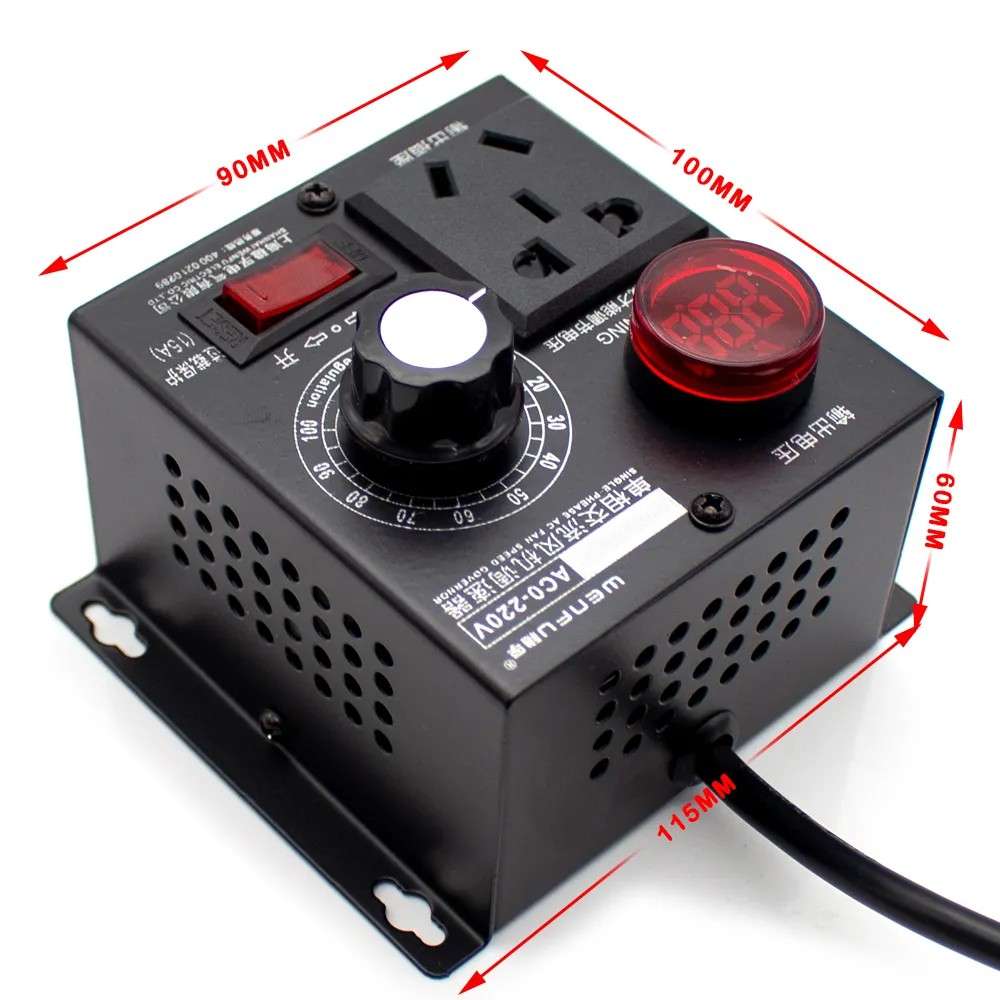

• Size: 11.5 x 10 x 6cm
• Weight: approx.500g
• Input Voltage: AC 220V
• Output Voltage: 0~220V (Adjustable)
• Adjustable Voltage Range: 0~220V
• Max Power: 4000W
• Rated Current: 9A
• Max. Current: 18A

Package included:

• 1x Voltage Converter

Precautions and instructions for use

• When measuring the output voltage when it is empty, it is a virtual voltage. It must be connected to a load of 20W or more to measure the correct output voltage.
• Input AC power, the output is also AC, not DC.
• The above-mentioned 4000W refers to the ultimate power when working under resistive load.

The inductive load is 1/3 of the resistive load. The resistive load means that the inductive load such as a tungsten filament lamp or a heating wire is a series-excited motor, etc., and the circuit board electronic products are used with caution.

• This product is a metal case and must be grounded safely.
