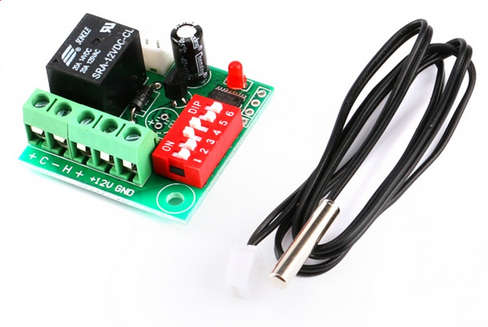

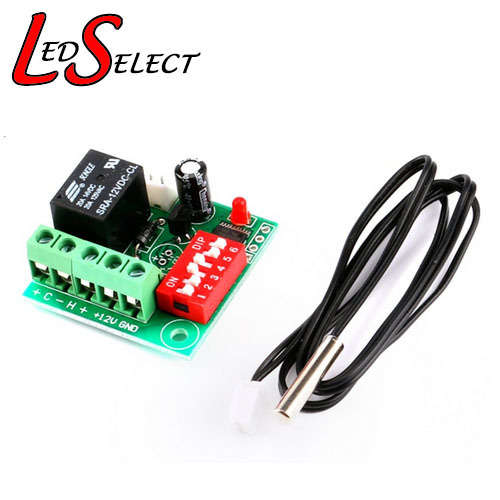

Fan Controller On Off Cooling 12V Adjustable Temperature W1701 **LOCAL STOCK**

Controller Fan Cooling Adj Temperature 12V W1701:

Category: 1500312645 / 1512312645 - Controller Fan

Specifications:

Model: W1701
Supply Voltage: DC 12V
Output Power: Max 200W
Installation Screw: M3 x 2 diagonal size 39.5mm
Temperature Range: 20-90 °C
Control Mode: Heating, Cooling, Heat dissipation
Control Accuracy: 0.1 °C
Hysteresis Setting: 1-10 °C
Refresh Rate: 0.5S
Static Current: ≤ 3MA, attract current ≤ 60MA
Temperature Probe: 10K thermistor
Size: Approx. 37 x 37 x 18mm

Instructions:

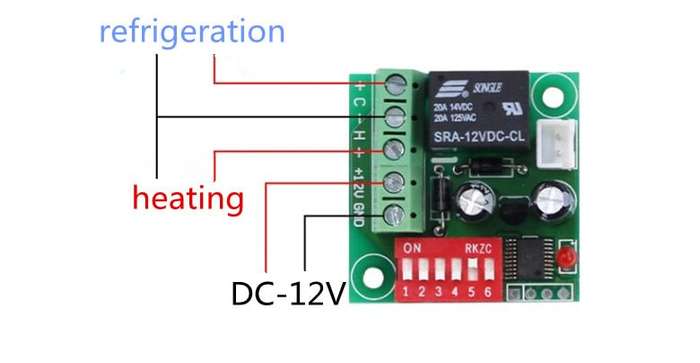

Connect 12V power and the load.
Heating mode: Connect 12v heater to the terminal –H+
Cooling mode: Connect cooler to the terminal +C-
heat dissipation: Connect cooler or FAN to the terminal +C-

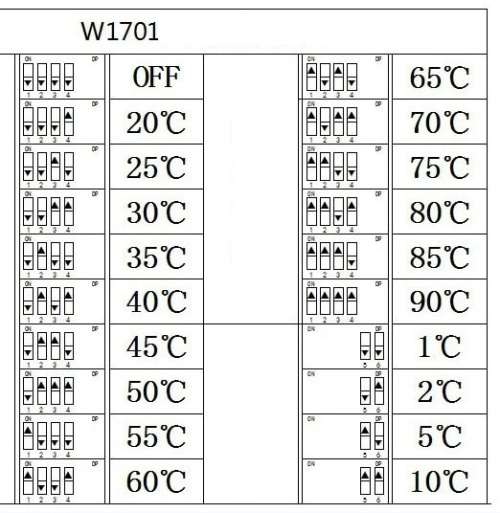

1-4 DIP switch:  control temp setting.
5-6 DIP switch:   Hysteresis setting.
Indicator Status:   The red light is on indicating the cooling (+ C-) output, The light is off indicating heating (-H +) output

Uses: Incubator
