Controller PWM Fan Speed Temperature 12V:

Category: 1500312645 / 1512312645 - Controller Fan

Specifications:

Working Voltage: 12V DC
Circuit Load Capacity: maximum current per output 4A, the bus currents up 9A
Temperature Range: 35 Deg C to 90 Deg C
Fan Speed Range: 20% to 100% PWM Speed

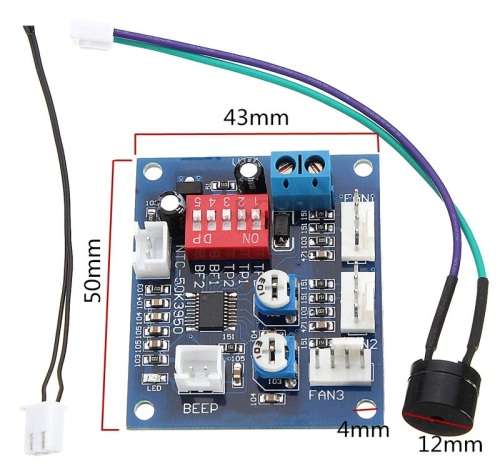

Size: 50 x 43mm

There are 5 Buttons to set your fan speed according to Temperature:

TFL = 1
TP1 = 2
TP2 = 3
BF1 = 4
BF2 = 5

(TFL) 20% or 40% Minimum Fan Speed Setting:

A) If TFL is off, minimum PWM fan speed is 20% and maximum PWM fan speed is 100%
B) If TFL is on, minimum PWM fan speed is 40% and maximum PWM fan speed is 100%

(TP1 & TP2) Temperature Zones and Fan Speeds:

A) If TP1 is off, and TP2 is off: If temperature is less than 35deg C, fan will run at minimum speed (20% or 40% Settable) and if Temperature is more than 45 deg C, fan will run at 100% speed

B) If TP1 is on, and TP2 is off: If temperature is less than 40deg C, fan will run at minimum speed (20% or 40% Settable) and if Temperature is more than 55 deg C, fan will run at 100% speed

C) If TP1 is off, and TP2 is on: If temperature is less than 50deg C, fan will run at minimum speed (20% or 40% Settable) and if Temperature is more than 70deg C, fan will run at 100% speed

D) If TP1 is on, and TP2 is on: If temperature is less than 60deg C, fan will run at minimum speed (20% or 40% Settable) and if Temperature is more than 90 deg C, fan will run at 100% speed

(BF1 & BF2) Buzzer Alarm Setting:

A) Fan 1: If BF1 is on, and fan stops, alarm will sound / If BF1 is off, and fan stops, alarm will not sound
B) Fan 2: If BF2 is on, and fan stops, alarm will sound / If BF2 is off, and fan stops, alarm will not sound

If BF1 and BF2 both are on, (FAN1 and FAN2) any one or both stops, the alarm will sound

*Above range only for PWM range, the actual control effect will vary depending on the fan. Numerous fans can be connected to a single fan output (not exceeding total of 4Amp)
