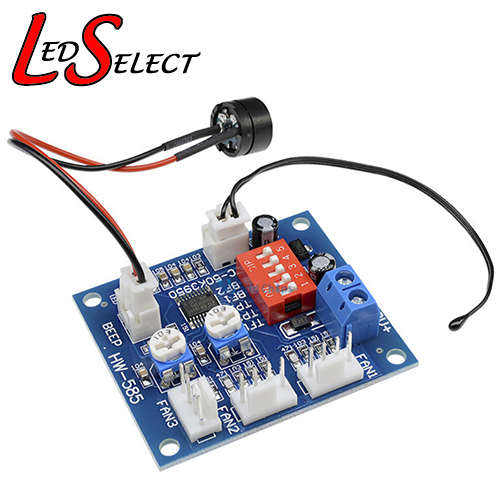

Name: Fan Speed Controller 12V PWM Temperature Module **LOCAL STOCK**
SKU: CNT367
Price: 85.00 ZAR
Availability: SoldOut
Rating: 5 (1 reviews)

Fan Speed Controller 12V PWM Temperature Module **LOCAL STOCK**

2 were available / new

R85.00

Shipping

R65.00 Standard shipping applies to orders under R100.00, in most areas in South Africa. R35.00 Standard shipping applies to orders over R100.00. Some areas may attract a surcharge surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.

The seller has indicated that they will usually have this item ready to ship within 2 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Led Select - Cape Town29868

100.00 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Condition

New

Location

South Africa

Customer ratings:

1 ratings

Product code

CNT367

Bob Shop ID

517398336

Controller PWM Fan Speed Temperature 12V:

Category: 1500312645 / 1512312645 - Controller Fan

Specifications:

Working Voltage: 12V DC
Circuit Load Capacity: maximum current per output 4A, the bus currents up 9A
Temperature Range: 35 Deg C to 90 Deg C
Fan Speed Range: 20% to 100% PWM Speed
Size: 50 x 43mm

Here is a link explaining this unit: https://www.electroschematics.com/fan-speed-controller/

There are 5 Buttons to set your fan speed according to Temperature:

TFL = 1
TP1 = 2
TP2 = 3
BF1 = 4
BF2 = 5

(TFL) 20% or 40% Minimum Fan Speed Setting:

A) If TFL is off, minimum PWM fan speed is 20% and maximum PWM fan speed is 100%
B) If TFL is on, minimum PWM fan speed is 40% and maximum PWM fan speed is 100%

(TP1 & TP2) Temperature Zones and Fan Speeds:

A) If TP1 is off, and TP2 is off: If temperature is less than 35deg C, fan will run at minimum speed (20% or 40% Settable) and if Temperature is more than 45 deg C, fan will run at 100% speed

B) If TP1 is on, and TP2 is off: If temperature is less than 40deg C, fan will run at minimum speed (20% or 40% Settable) and if Temperature is more than 55 deg C, fan will run at 100% speed

C) If TP1 is off, and TP2 is on: If temperature is less than 50deg C, fan will run at minimum speed (20% or 40% Settable) and if Temperature is more than 70deg C, fan will run at 100% speed

D) If TP1 is on, and TP2 is on: If temperature is less than 60deg C, fan will run at minimum speed (20% or 40% Settable) and if Temperature is more than 90 deg C, fan will run at 100% speed

(BF1 & BF2) Buzzer Alarm Setting:

A) Fan 1: If BF1 is on, and fan stops, alarm will sound / If BF1 is off, and fan stops, alarm will not sound
B) Fan 2: If BF2 is on, and fan stops, alarm will sound / If BF2 is off, and fan stops, alarm will not sound

If BF1 and BF2 both are on, (FAN1 and FAN2) any one or both stops, the alarm will sound

*Above range only for PWM range, the actual control effect will vary depending on the fan. Numerous fans can be connected to a single fan output (not exceeding total of 4Amp)
