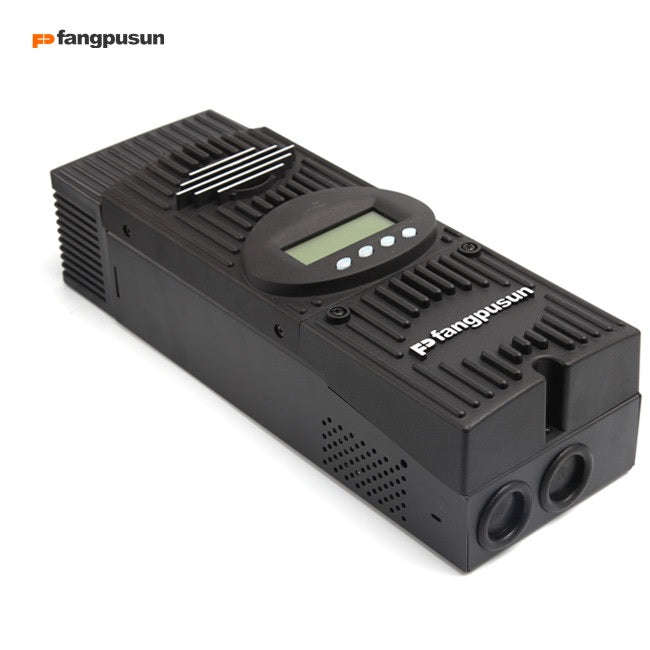

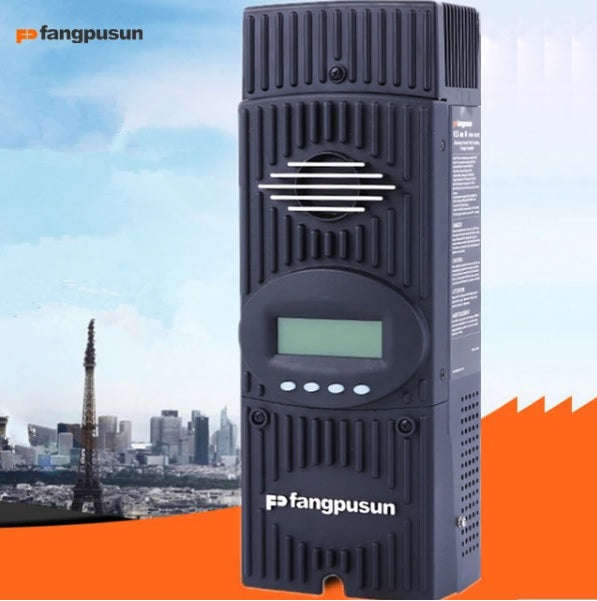

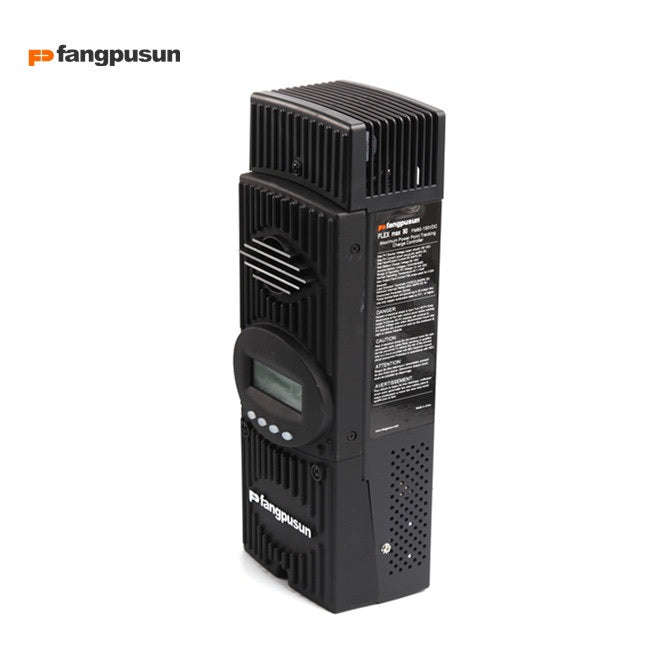

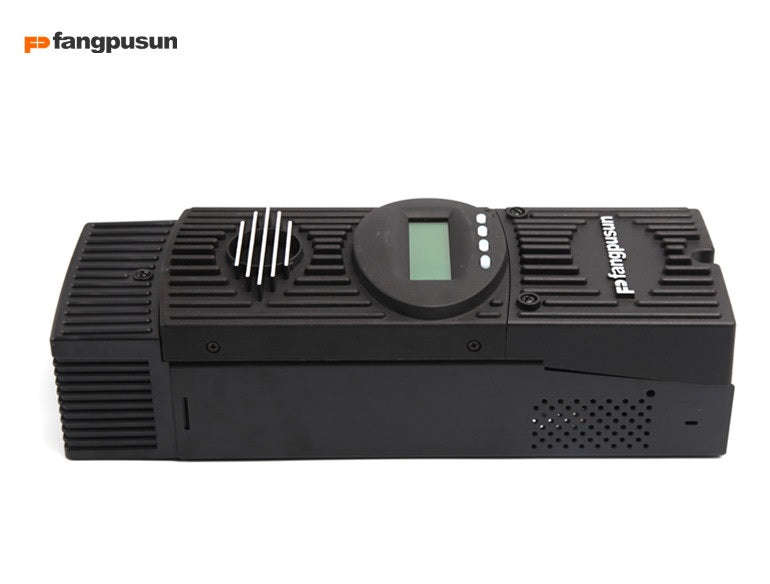

FANGPUSUN FLEXMAX MPPT 80A 12/24/36/48/60v Solar Charge Controller

FANGPUSUN FLEXMAX MPPT 80A 12/24/36/48/60v Solar Charge Controller (10005695)

The innovative FLEXmax MPPT software algorithm is both continuous and active, increasing your photovoltaic array power yield up to 30% compared to non-MPPT controllers. Thanks to active cooling and intelligent thermal management cooling, both FLEXmax charge controllers can operate at their full maximum current rating, 60 Amps or 80 Amps respectively, in ambient temperatures as high as 104°F (40°C). Included in all of the FLEXmax Charge Controllers are the revolutionary features first developed by fangpusun, including support for a wide range of nominal battery voltages and the ability to step-down a higher voltage solar array to recharge a lower voltage battery bank. A built-in, backlit 80 character display shows the current status and logged system performance data for the last 128 days at the touch of a button. The integrated OutBack network communications allows FLEXmax series Charge Controllers to be remotely programmed and monitored via a MATE system display and provides unrivaled complete system integration. FLEXmax MPPT Charge Controllers are the only choice when you demand a high performance, efficient and versatile charge controller for your advanced power system.

Product features 1.Increases PV Array Output by up to 30% 2.Advanced Continuous Maximum Power Point Tracking 3.Full Power Output in Ambient Temperatures up to 104°F (40°C) 4.Battery Voltages from 12 VDC to 60 VDC 5.Programmable Auxiliary Control Output 6.Built-in 128 days of Data Logging 7.Fully Network Integrated and Programmable

Technical data of MPPT80A

Nominal Battery Voltages	12,24,36,48 or 60VDC(Single model-selectable via field programming at start-up)
Maximum output current	80amps@104°F(40°C)with adjustable current limit
Maximum solar array STC nameplate	12V systems 1250 watts/24V systems 2500 watts 48V systems 5000 watts/60V systems 7500 watts
NEC recommended solar array STC nameplate	12V systems 1000 watts/24V systems 2000 watts 48V systems 4000 watts/60V systems 5000 watts
PV open circuit voltage(VOC)	150V absolute maximum coldest conditions/145V start-up and operating maximum
Standby power consumption	Less than 1 watts typical
Power conversion efficiency	97.5%@80Amps in at 48V system voltage-typical
Charging regulation	Five stages: bulk, absorption, float, silent, equalization
Voltage regulation set points	10 to 80 V user adjustable with password protection
Equalization charging	Programmable voltage setpoint and duration-automatic termination When completed
Battery temperature compensation	Automatic with optional RTS installed/5.0 mV per°C per 2V battery cell
Voltages step-down capability	Can charge a lower voltage battery from a higher voltage PV array -max 150 VDC input
Programmable auxiliary  control output	12V output signal which can be programmed for different control applications(maximum of 0.2 amps DC)

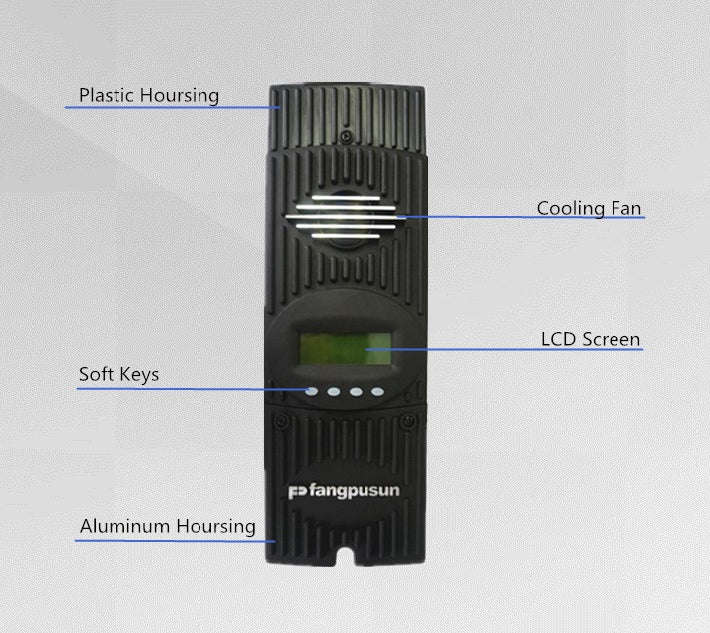

Status display	3.1"(8cm) backlit LCD screen-4 lines with 80 alphanumeric characters total
Remote display and controller	Optional mate or mate2 with RS232 serial communications port
Network cabelling	Proprietary network system using RJ45 modular connectors with CAT 5e cable(8 wires)
Data logging	Last 128 days of operation-amp hours, watt hours, time in float, peak watts, amps, solar array voltage, max battery voltage, min battery voltage and absorb for each day along with total accumulated amp hours, and kW hours of production
	Positive ground applications
	Requires two pole breakers for switching both positive and negative conductors on both solar array and battery connections(HUB-4 and HUB-10 can not be used for use in positive ground applications)
Operating temperature range	Mini-40 to maximum 60(power capacity of the controller is automatically derated when operated above 40)
Environmental  rating	Indoor type 1
Conduit knockouts	One1"(35mm)on the back;one1"(35mm)on the left side; Two 1"(35mm) on the bottom
Weight/Dimensions-unit	5.3kgs/40×14×10cm
Weight/Dimension-shipping	6.7kgs/46×30×20cm
options	Remote temperature sensor(RTS),HUB4,HUB10,MATE,MATE 2
Menu languages	English& Spanish
