FEATURES

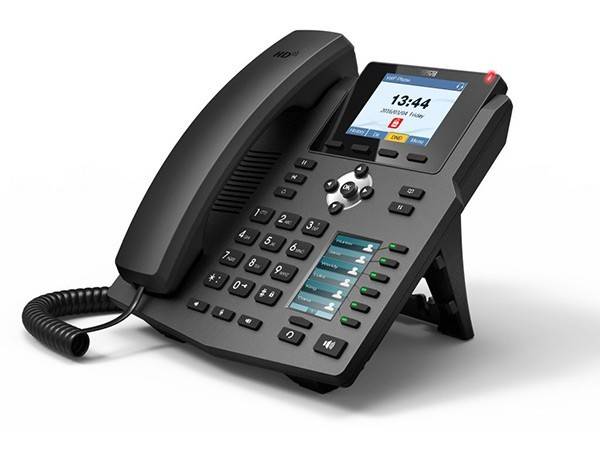

Fanvil's FAN-X4 is a 4-line enterprise SIP phone that's both highly affordable and widely interoperable, with support for numerous major VoIP and UC platforms, including 3CX, Asterisk, Broadsoft, Elastix, and Zycoo. The FAN-X4 has a bright 2.8" color LCD main display, with an additional LCD display that allows for dynamic labelling of the 6 function keys.
It includes wide-band HD audio both through the handset and through the speakerphone. Fanvil has integrated advanced audio enhancing technologies like acoustic echo cancellation and voice activity detection. Fanvil X4 is a PoE Class 2 device using the dual Ethernet ports with pass-through. It uses a Broadcom chipset to power the device.
- 4 SIP Lines
- POE Enabled
- Handset (HS) / Hands-free (HF) / Headphone (HP) mode (EHS support for Plantronics headsets)
- Desktop / Wall-mount installation
- No Power Supply
- Intelligent DSS Keys
- 2x LCDs (Main + DSS)
Call features
- Caller ID Display
- Call Forwarding (Always/Busy/No Answer)
- Call Transfer (Attended/Unattended)
- Call Parking/Pick-up (depending on server)
- Anonymous Call (Hide Caller ID)
- Hot Line
- Local 3-way Conference
- Intercom
- Do-Not-Disturb (per line / per phone)
Phone Features
- Phonebook (Up to 500 entries)
- Remote Phone Book
- Intelligent contact number matching
- Call log (100 entries total, in/out/missed)
- Black/White List Call FilteringProgrammable DSS/Soft keys
- Action URL / Active URI
Audio
- HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)
- Wide-band ADC/DAC 16KHz Sampling
- Narrowband CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB
- Wide-band CODEC: G.722
- Full-duplex Acoustic Echo Canceller (AEC) — Hands-free Mode, 96ms tail-length
- Voice Activity Detection (VAD)/ Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)
- Dynamic Adaptive Jitter Buffer up to 300ms
Networking
- Physical: 10/100Mbps Ethernet, dual bridged port for PC bypass
- IP Configuration: Static / DHCP / PPPoE
- VPN: L2TP (Basic Unencrypted) / OpenVPN
- VLAN
- QoS
Protocols
- SIP2.0 over UDP/TCP/TLS
- RTP/RTCP/SRTP
- STUN
- DHCP
- PPPoE
- L2TP (Basic Unencrypted)
- OpenVPN
- SNTP
- FTP/TFTP
- HTTP/HTTPS
PRODUCT SPECIFICATIONS
| Manufacturer | Fanvil |
| Model Number | FAN-X4 |
| Product Type | Phone |
| Main Chipset | Broadcom |
