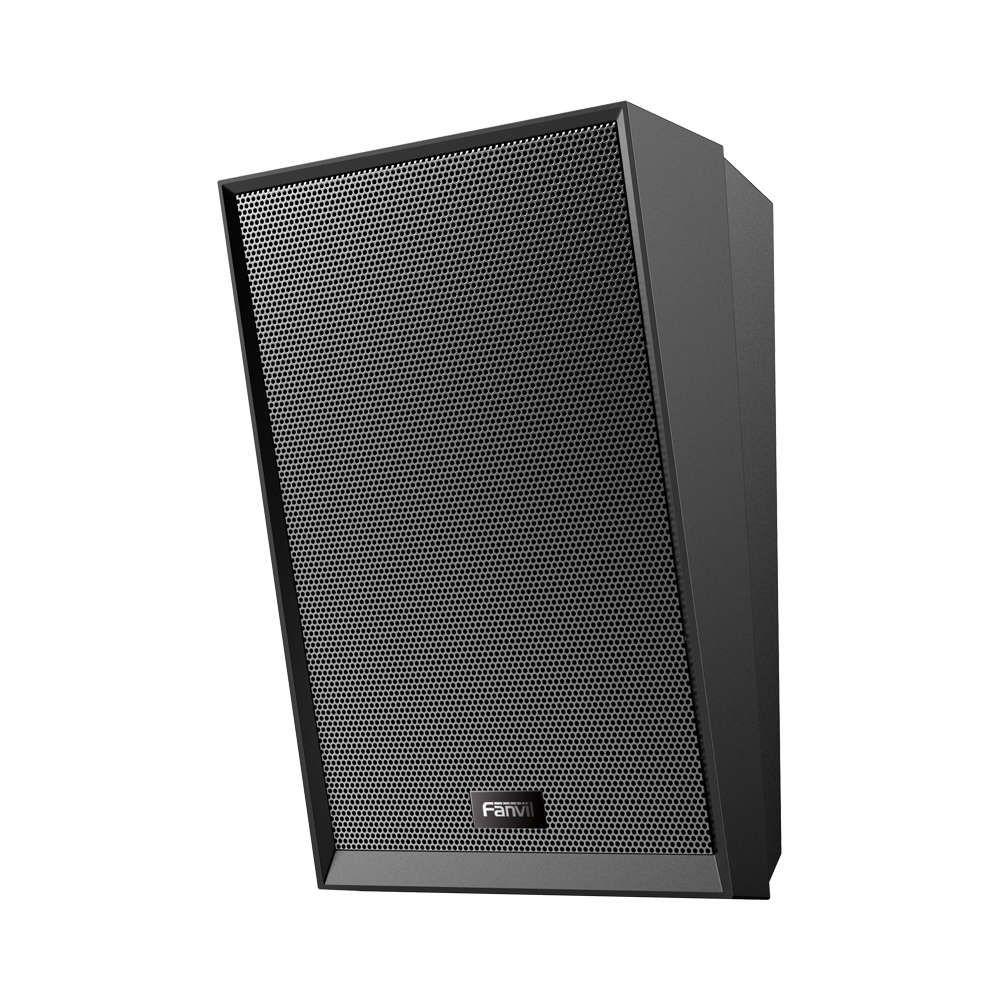

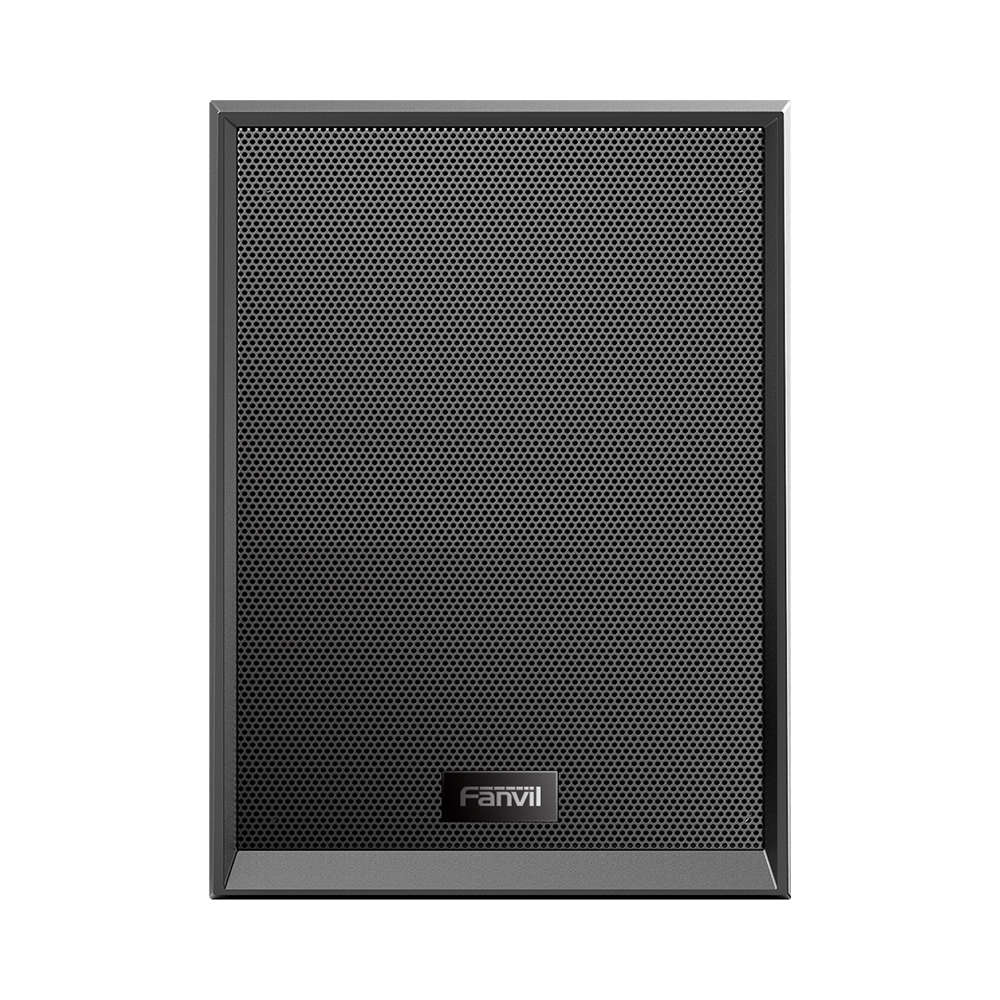

Fanvil A212 15W Wall-Mounted SIP Speaker with POE+ Support
Modern Styling, Superior Sound Quality.
The Fanvil A212 SIP wall-mounted speaker is a commercial-grade IP audio terminal that can be used independently as an audio system and seamlessly integrated with external systems and platforms (such as converged communication systems, video surveillance systems, Fanvil broadcast intercom systems, access control systems, digital billboards and fire alarm systems). It can help to build a fully integrated audio communication system and is easy to configure and operate in a unified manner.
Fanvil A212 integrates broadcast and intercom functions and supports 20× multicast partition priority management. It adopts G.722 and Opus encoding to bring high-definition call sound quality while supporting the broadcasting of MP3 and WAV encoding lossless sound quality. It can be connected to a 15W passive speaker to achieve a better amplification effect. The Fanvil A212 system is compatible and scalable and supports standard SIP 2.0 (RFC3261) and related RFC protocols.
FEATURES
15W High-Power Speaker - Delivers clear and loud audio for paging and announcements
Excellent Sound Quality - Support HD intercom, lossless music broadcast
Flexible Integration - Supports standard SIP protocol, HTTP API, short-circuit input and output and video linkage, easy to integrate with third-party systems
Easy to Manage - Supports Web, DM software, FDMCS and Fanvil broadcast intercom APP management equipment
Functional Integration - Set paging broadcast, timing broadcast, emergency broadcast, two-way intercom, self-check / monitoring, priority management and other functions in one
Multi-Mode - Serverless mode, converged communication mode, Fanvil broadcast intercom system mode and external linkage mode
SIP-Compatible - Integrates easily with IP PBX and VoIP systems
PoE Support - Simplifies installation with power and data over a single Ethernet cable

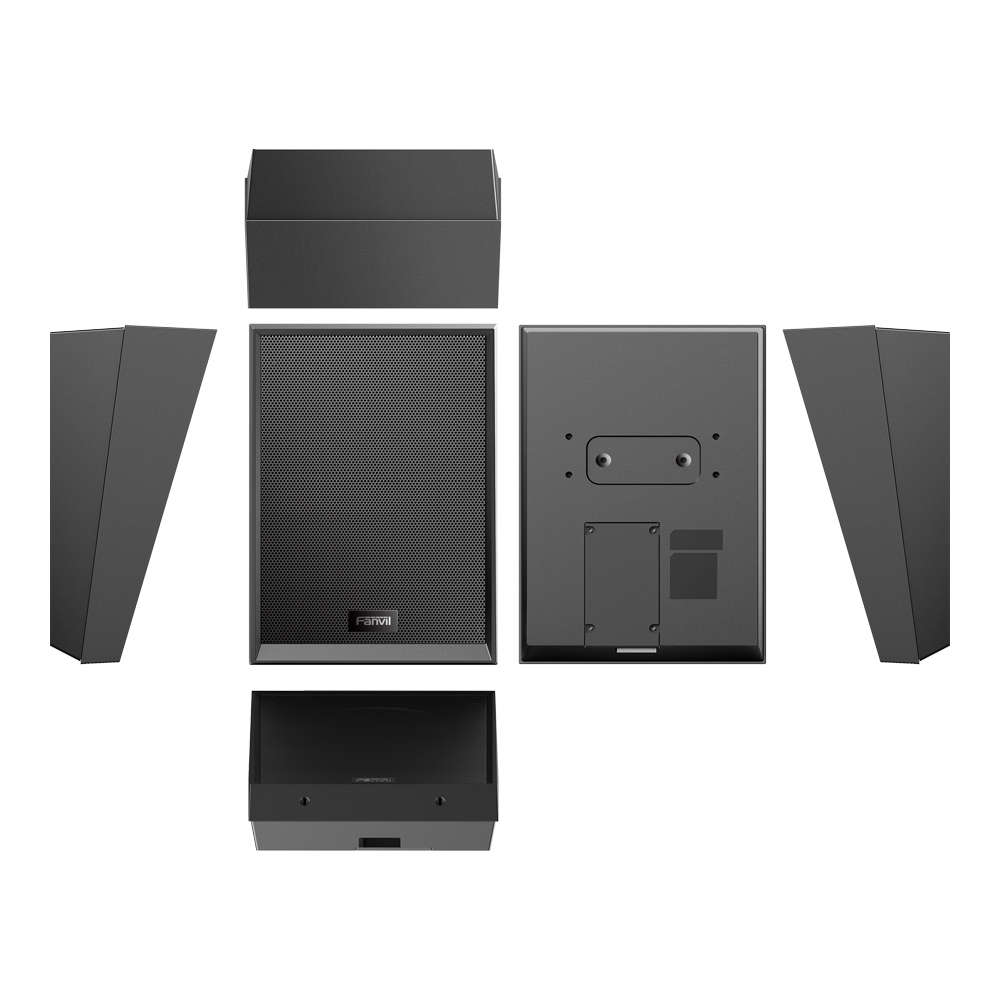

Wall-Mounted Design - Compact form factor ideal for indoor installations
SPECIFICATIONS
INSTALLATION
Wall-Mounted Installation
MICROPHONE
Built-In Microphone
SPEAKER POWER
15W (PoE+ / DC24V)
FREQUENCY RESPONSE
100Hz~20kHz
SENSITIVITY
88dB ±3dB (1m / 1W)
AUDIO FILE STORAGE
24MB
SUPPORTED PROTOCOLS
SIP
ONVIF
MAXIMUM SPL
105dB (1m)

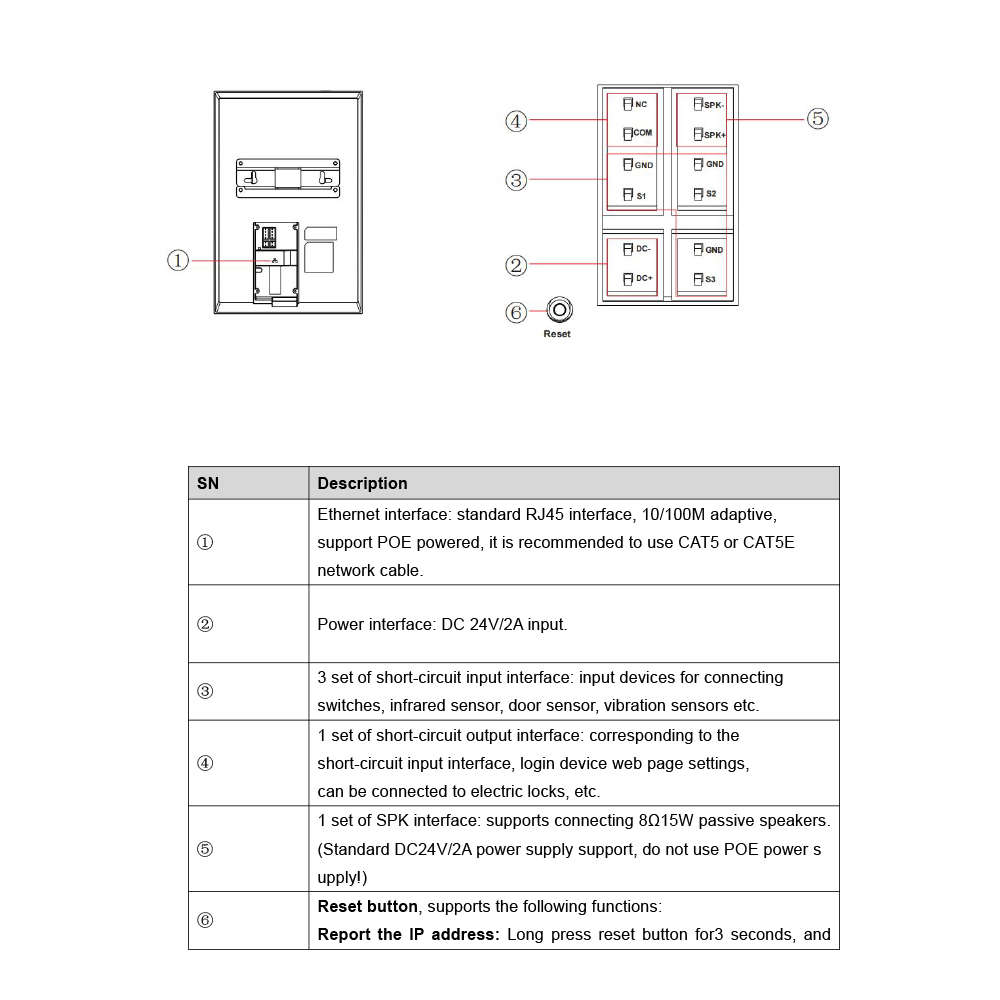

SHORT-CIRCUIT INPUT
3× Inputs
SHORT-CIRCUIT OUTPUT
1× Output
AUDIO LINE-IN / OUTPUT
Supports External 8 15W Sub-Speaker
POWER SUPPLY
PoE+
DC24V 2A
WORKING TEMPERATURE
-20~55°C
WEIGHT
2.27kg
DIMENSIONS (W × H × D)
184 × 275 × 124mm
