Fanvil CA400 All-in-One Wireless Conference Solution - Speakerphone, 4K Camera and Receiver Hub

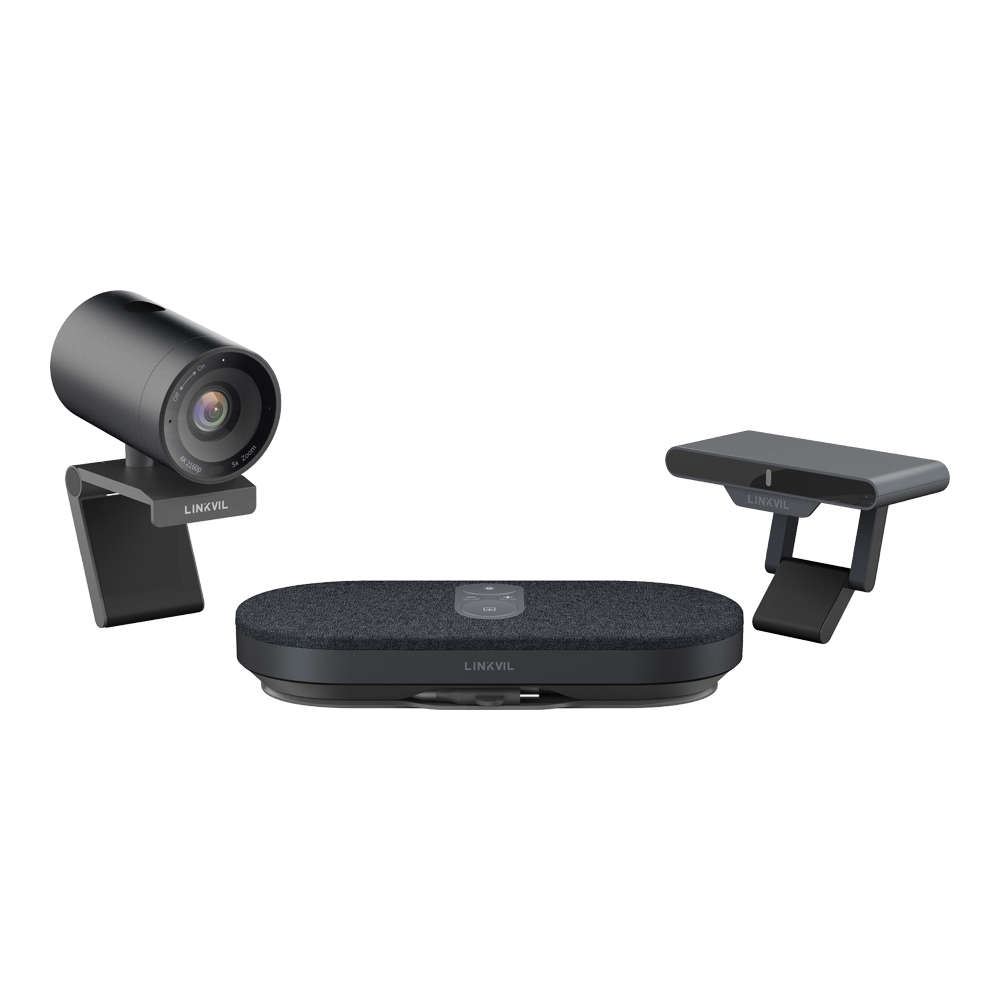

Designed for small and medium meeting rooms up to 32m², the CA400 system consists of a unique speakerphone MS10, that supports wireless screen sharing, a receiver RC10, and a USB camera CM70. The CA400 achieves far-field voice pickup, delivering HD crystal-clear sound. Participants can also wirelessly cast at 4K and access FHD video streaming.
FEATURES
Wireless 4K Screen-Sharing for Real-time Presentations - Eliminate tedious steps - with a simple press, users can effortlessly enjoy a 4K TV display, making the entire experience smooth and productive.
All-in-One Design. Combine Audio, Video and Screen Sharing Together - The innovative and convenient all-in-one design promotes efficient meetings. With comprehensive BYOD support, it is easy to connect the speaker to a laptop using a USB Type-C cable.
Clutter-Free Collaborative Spaces and Access Camera Wirelessly - Effortlessly stream 1080p video from your laptop wirelessly, simplifying and organising your office space. Achieve a one-stop setup in three easy steps and bid farewell to tangled cables.
8-Array Microphone and 3W Enhanced Speaker to Present Superior Audio Quality - Driven by advanced technologies (AEC, ANS, AGC, and vocal enhancement), automatically balances voices, suppresses noise and eliminates echoes, ensuring a stable and natural sound.

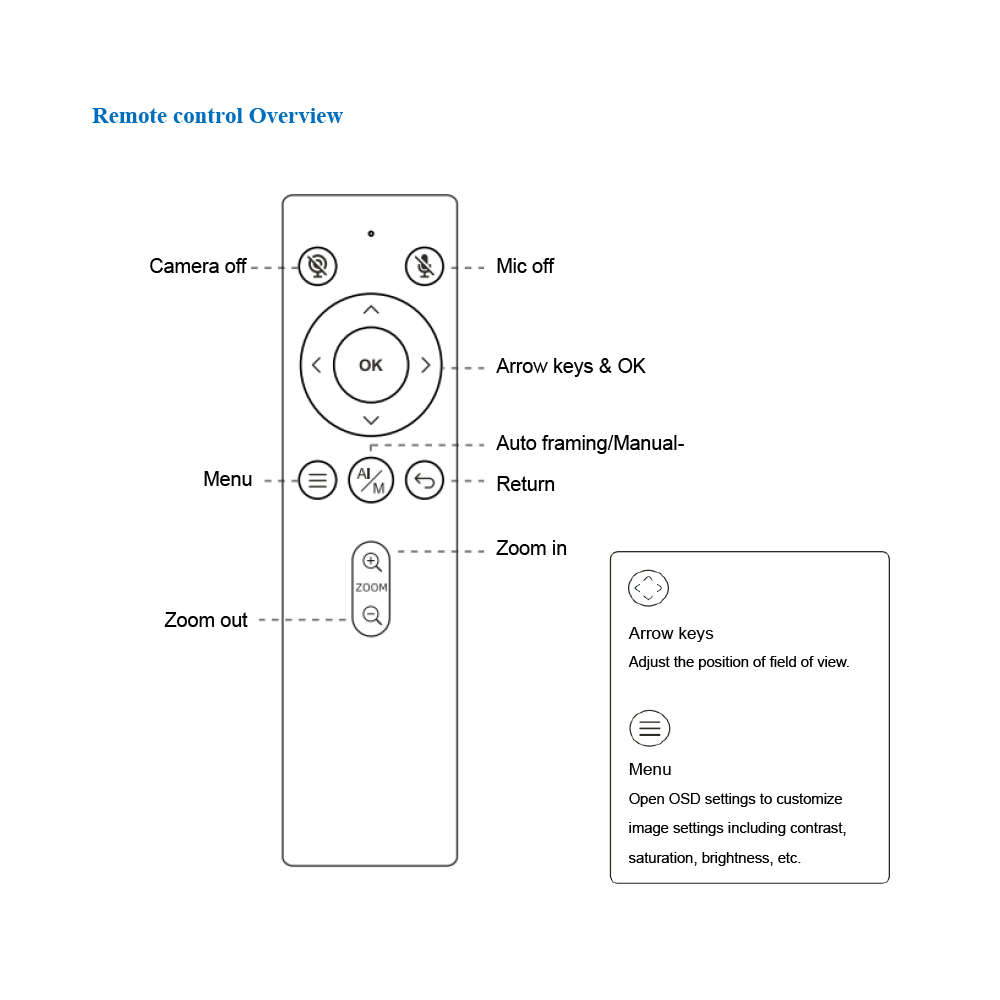

Camera with Auto-Framing, Delivering Detailed Images - With a wide-angle coverage of 118.5°, a 5× digital zoom and auto-framing technology, the camera will automatically zoom in / out to frame all participants, users can also adjust the direction and focal length with an OSD remote control.
SPECIFICATIONS
SCREEN SHARING
Max. Output Resolution: 1920×1080 @30fps

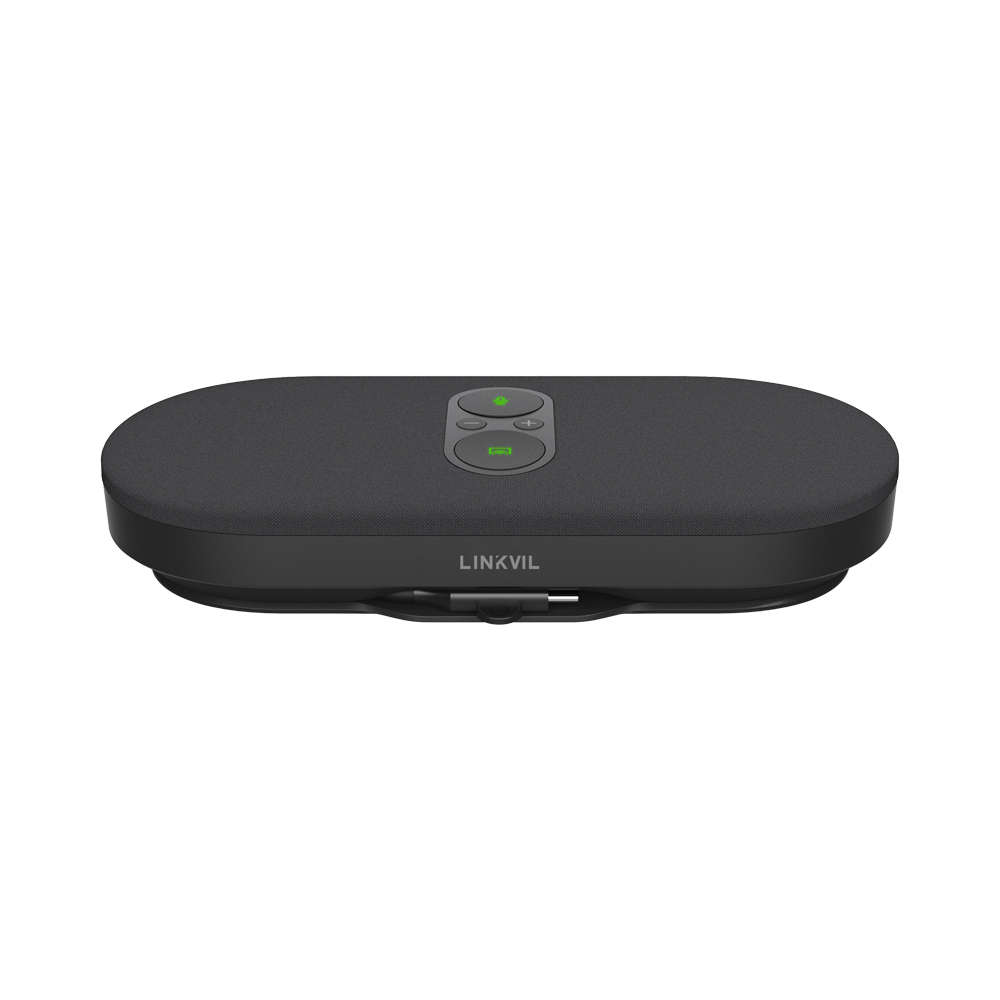

MICROPHONE (SPEAKERPHONE)
Type: 8× MEMS Microphones with 360° Pickup
Pick-up Range: up to 4m
Signal to Noise Ratio (SNR): 64.5dB(A)
Sensitivity: -26dBFS @1kHz (0dB=1V/Pa)
Acoustic Overload Point: 119dB SPL @1kHz
Frequency Range: 20Hz~10kHz
Audio Processing: Beamforming, Acoustic Echo Cancellation (AEC), Automatic Noise Suppression (ANS), Automatic Gain Control (AGC), Full-Duplex

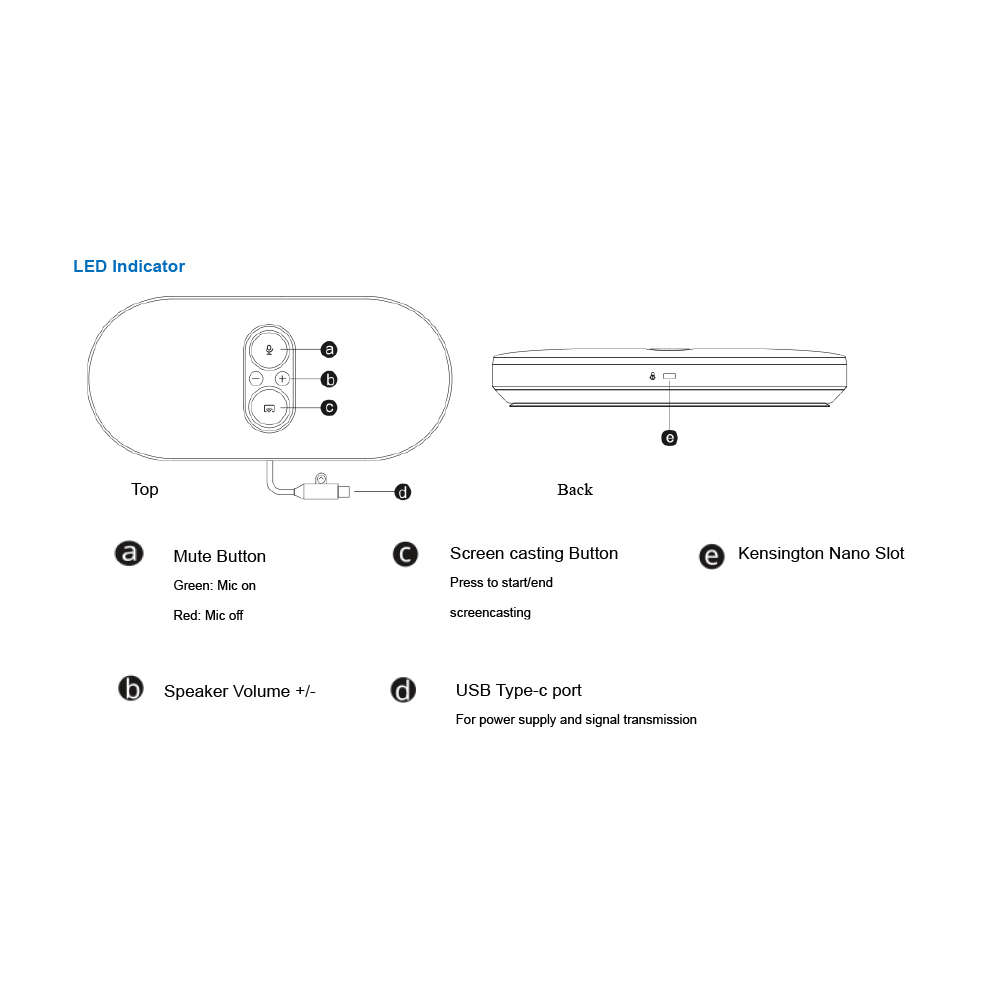

SPEAKER
Power: 3W (4)
Driver Size: 50mm
Sensitivity: 85dB ±3dB @1m
Signal to Noise Ratio (SNR): 50dB
Frequency Range: 200Hz~10kHz
Max. Sound Pressure Level: 85dB SPL @1m
Background Noise: <30dB
Total Harmonic Distortion: 5%

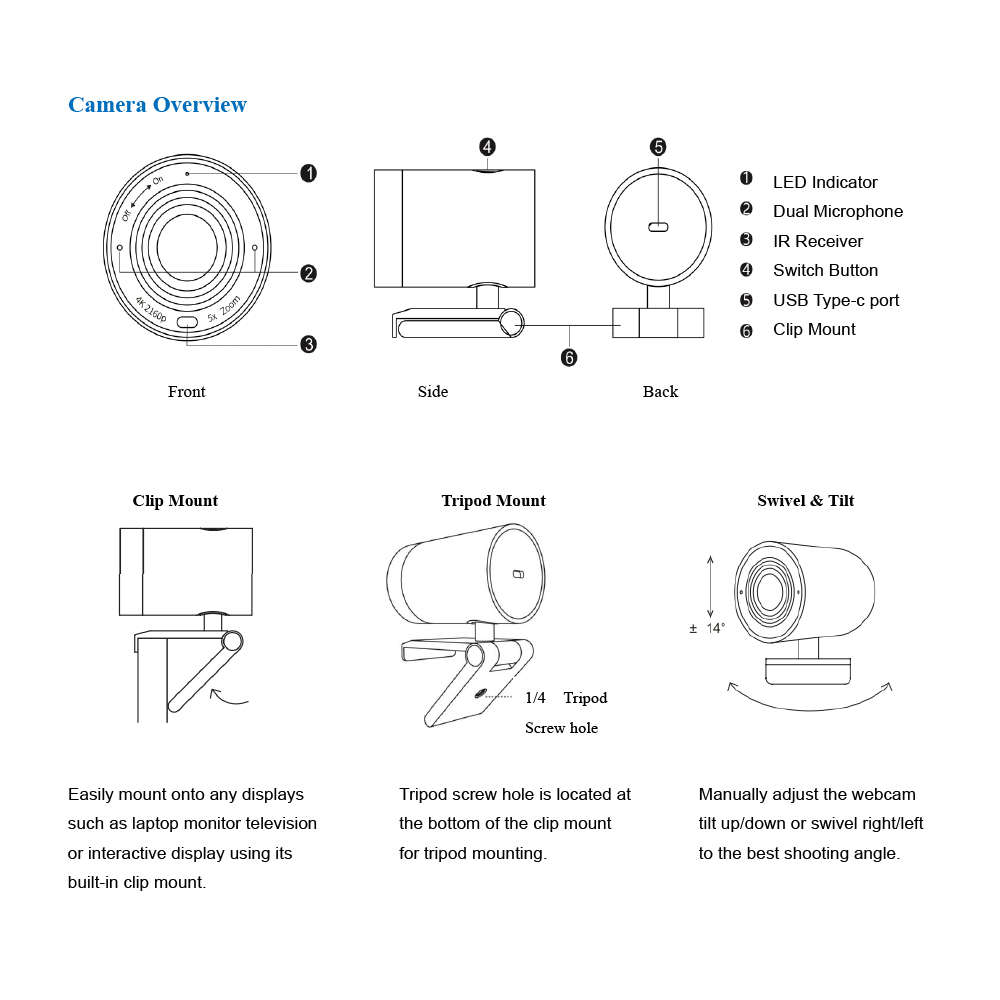

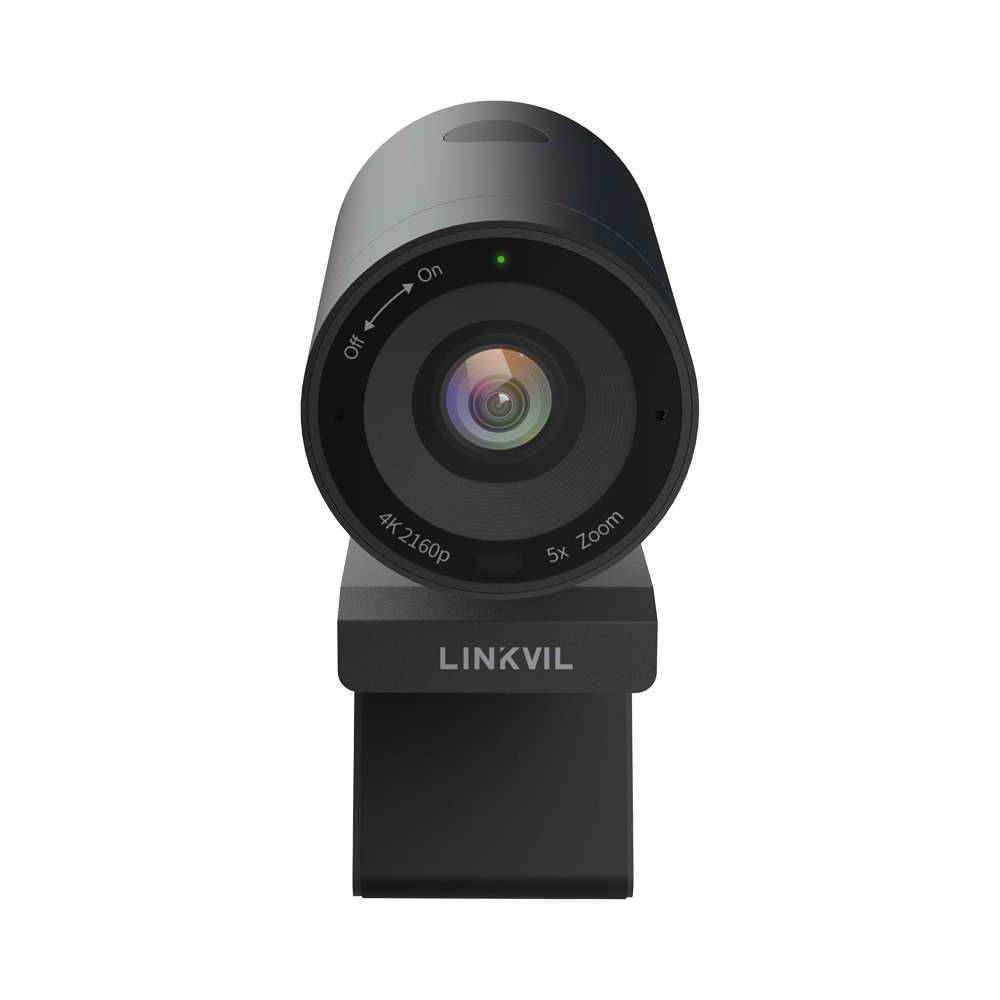

USB CAMERA
Sensor: Sony IMX415 (1/2.8")
Max. Resolution: 3840×2160 @30Hz
Output Formats: MJPEG / H.264 / H.265 / YUV / NV12
Supported Resolutions: 4K, 1080p, 720p and Lower Resolutions
Field of View: DFOV 118.5° / HFOV 109.9° / VFOV 74.6°
Auto Framing: Supported
Aperture: F2.5
Zoom: 5× Digital Zoom
USB Output: USB3.0: 4K @60Hz, USB2.0: 1080p @30Hz

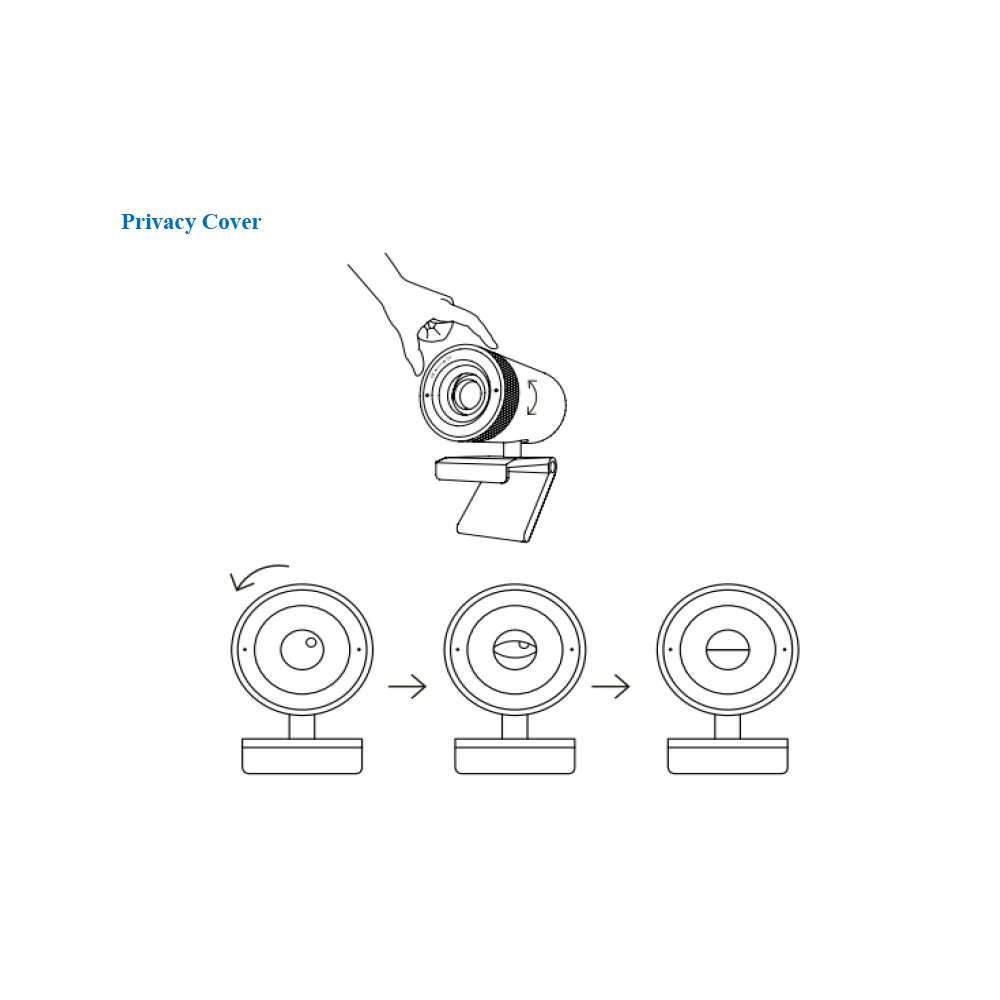

Security: Manual Camera Lens Cover
MICROPHONE (CAMERA UNIT)
Type: 2× Electret Microphones
Pick-up Range: up to 4m
Signal to Noise Ratio (SNR): 65dB(A)
Sensitivity: 94dB SPL @1kHz
Audio Processing: Duplex, ANS, AGC
Mounting: Magnetic Attachment

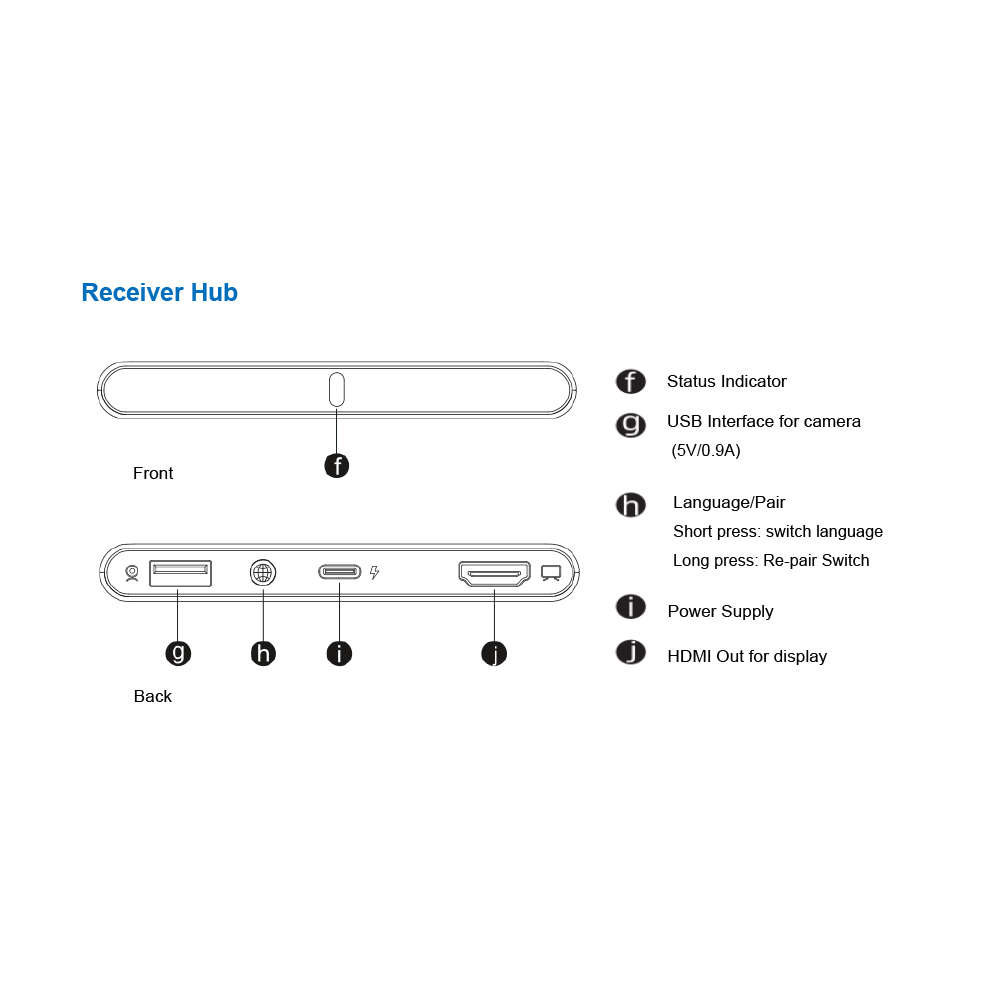

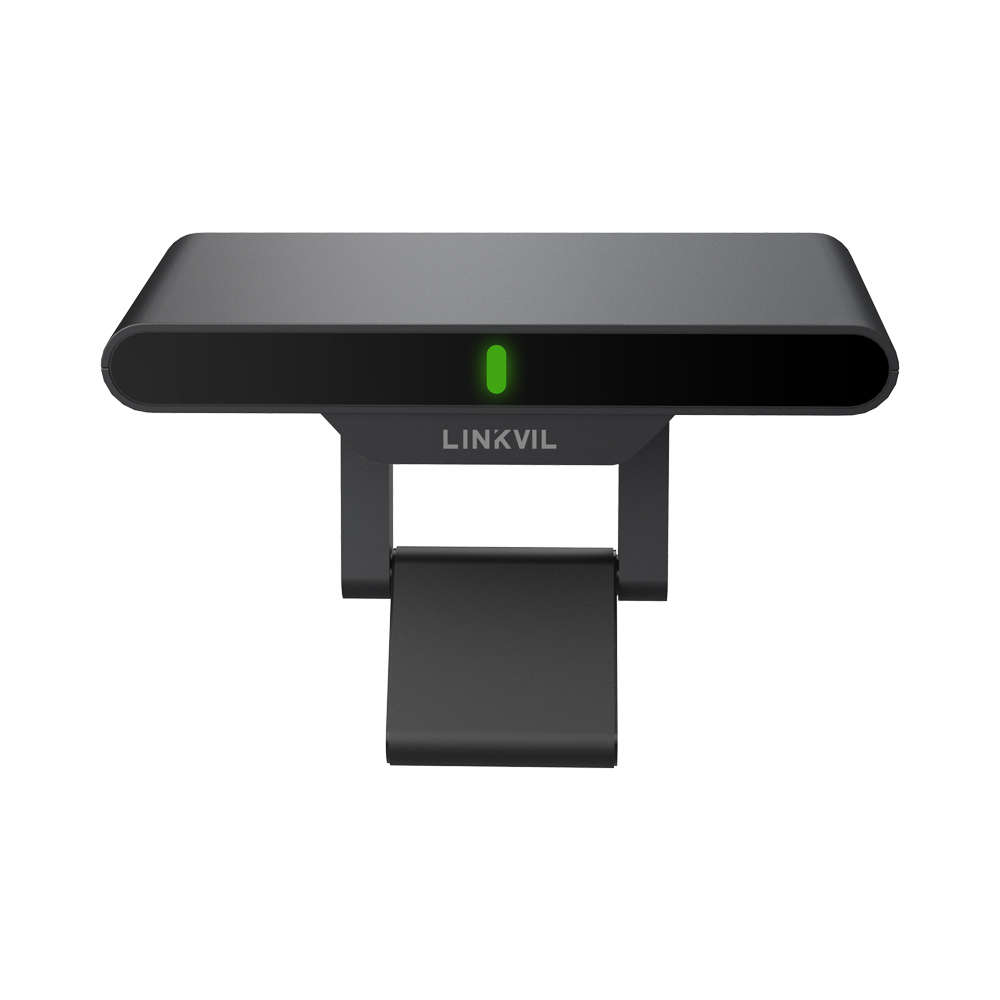

RECEIVER (WIRELESS)
Protocol: 802.11 a/n/ac
Transmission Protocol: UDP
Transmission Distance: up to 10m
Frequency Bands:
- 51805320MHz (5.0GHz), Max. 20dBm
- 55005700MHz (5.0GHz), Max. 20dBm
CAMERA STREAMING
Max. Output Resolution: 1920×1080 @30fps
Camera Type: UVC
Video Format: H.264
Mounting: Magnetic Attachment
PHYSICAL SPECIFICATIONS
Dimensions:
- Speakerphone: 180 × 81 × 32mm
- USB Camera: 80 × 75 × 53mm
- Receiver: 102 × 45 × 20mm
Weight:
- Speakerphone: 385g
- USB Camera: 210g
- Receiver: 70g
Operating Temperature: 0~40°C
Humidity: 10~90% RH
I/O INTERFACE

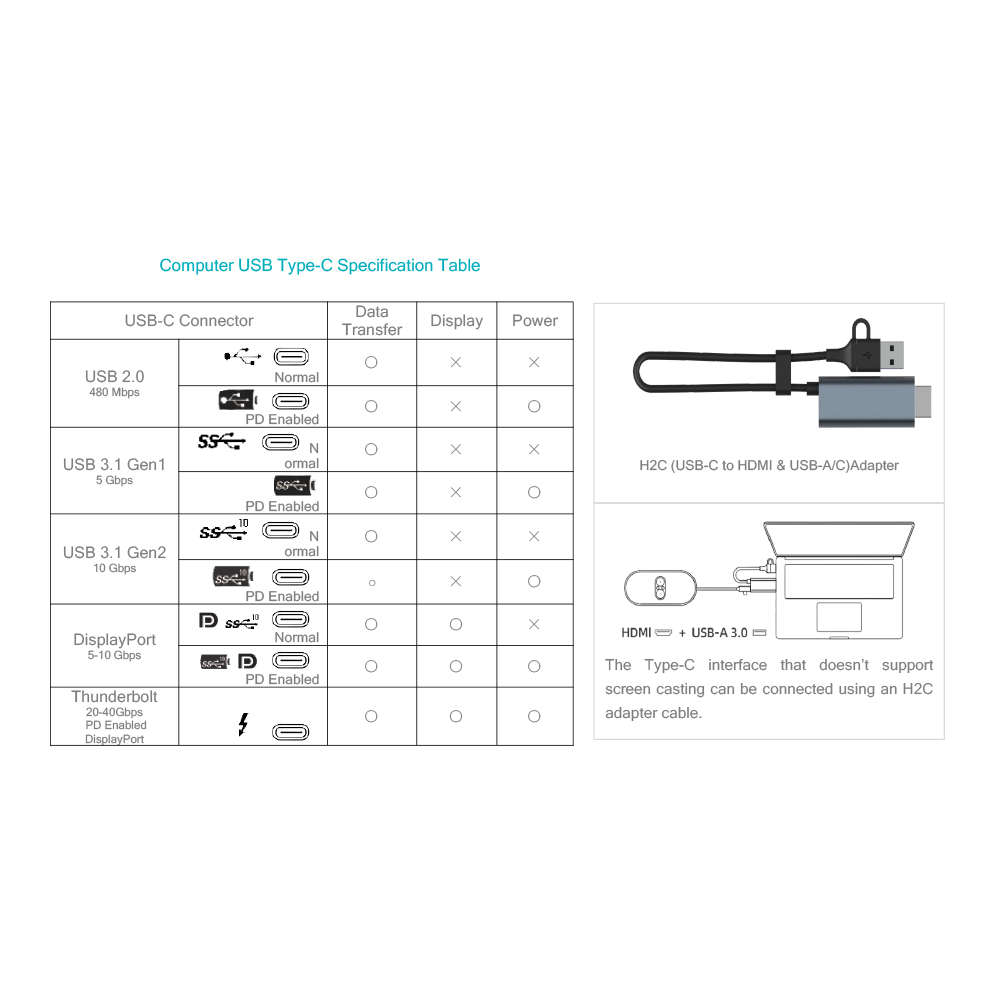

Speakerphone: USB Type-C (PD, DisplayPort Alt Mode)
Camera: USB Type-C
Receiver: 1× HDMI, 1× USB Type-C (PD), 1× USB3.0 Type-A
OPERATING SYSTEM
Windows 10 / 11
macOS
