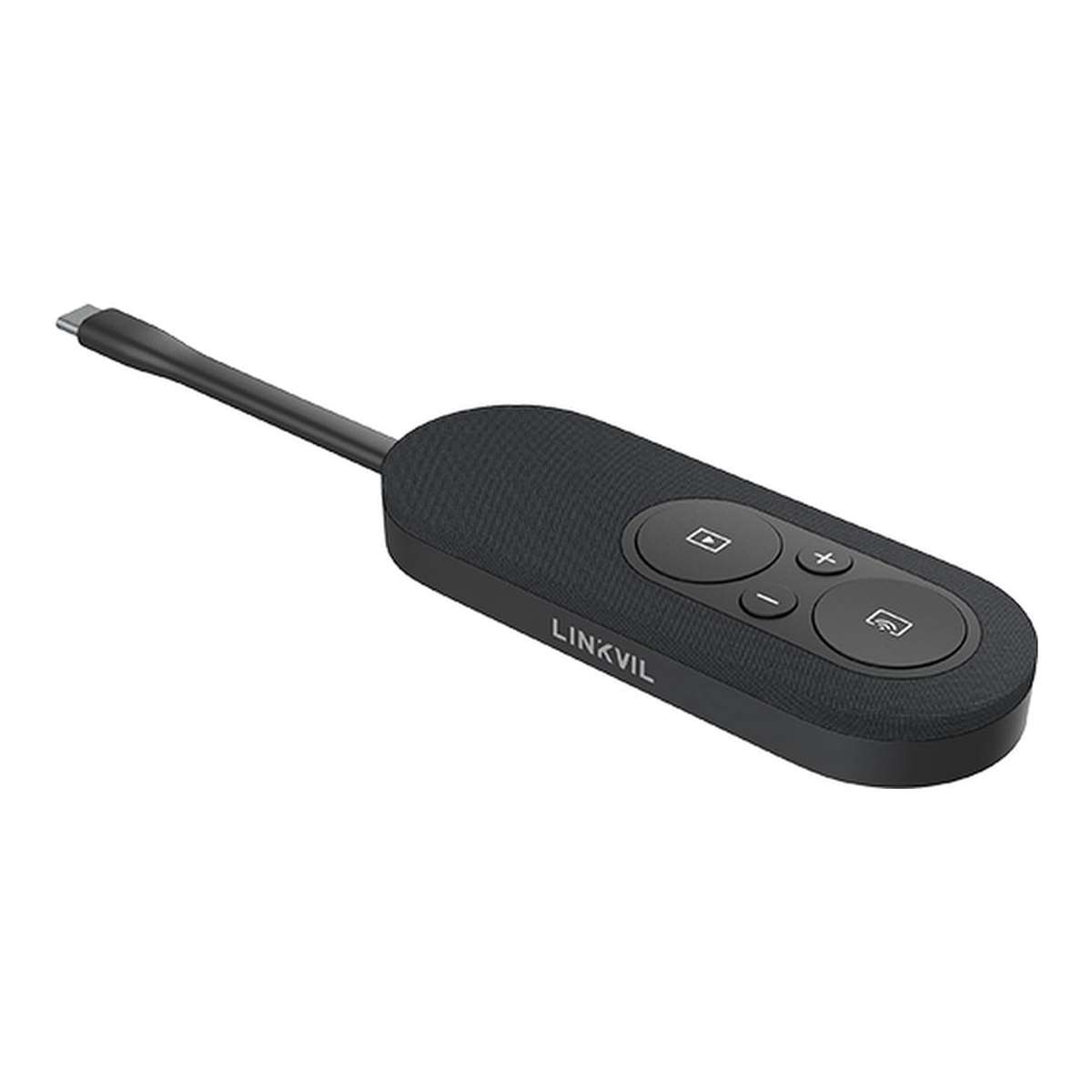

Fanvil CP20 4K Wireless Screen-sharing Pod
The Fanvil LINKVIL CP20 is a compact 4K wireless screen-sharing pod designed for meeting rooms that need quick, cable-free content sharing. Connect it to a compatible device through its full-featured USB-C connector and start sharing without installing drivers or additional software. It can also integrate with Fanvil CA200 and CA400 wireless conferencing sets for flexible multi-presenter collaboration.
Quick 4K Wireless Screen Sharing
Share presentations, documents and other on-screen content at up to 4K resolution and 30 frames per second. The CP20 supports both mirrored and extended desktop modes, giving presenters a practical choice between duplicating their display or using a second workspace.
Plug In and Present
The built-in USB-C cable enables plug-and-play operation without a separate driver or software installation. A dedicated sharing button helps users begin presenting with one press, while the lightweight 62 g design is easy to carry between meeting spaces.
Presentation Controls Within Reach
Dedicated buttons provide direct access to screen sharing, screen freeze and volume adjustment. The freeze control can pause the shared image while the presenter works privately, with red and green indicators showing whether casting is paused or active.
Flexible Multi-presenter Collaboration
When used with a compatible Fanvil CA200 or CA400 conferencing set, the CP20 supports multi-transmitter screen sharing with up to four devices. Presenters can switch between shared screens without repeatedly unplugging and reconnecting their equipment. The pod also supports wireless access to compatible UVC cameras and UAC audio devices from the transmitting end.
Key Features:
- Wireless screen sharing at up to 4K/30fps with low latency.
- Plug-and-play USB-C connection with no driver or software installation required.
- One-press screen sharing and one-click switching between active sharing and screen freeze.
- Supports mirrored and extended desktop sharing modes.
- Wi-Fi 5 and Wi-Fi 6 connectivity over the 5 GHz band, with WPA3-PSK encryption.
- Integrates with Fanvil CA200 and CA400 conferencing sets for multi-transmitter sharing.
- Compatible with supported Windows and Mac computers, laptops, tablets and smartphones equipped with full-featured USB-C.
Technical Specifications:
| Specification | Details |
| Brand | Fanvil LINKVIL |
| Model | CP20 |
| Product Type | 4K wireless screen-sharing pod |
| Maximum Sharing Resolution | Up to 4K at 30fps |
| Desktop Sharing Modes | Mirror and extended mode |
| Wireless Connectivity | Wi-Fi 5 and Wi-Fi 6 |
| Wireless Frequency Band | 5 GHz |
| Wireless Security | WPA3-PSK |
| Transmission Distance | Up to 10 m |
| Interface | USB Type-C with Power Delivery and DisplayPort Alt Mode |
| Controls | Screen sharing, volume up, volume down and screen freeze |
| LED Indicators | 1 red and 1 green |
| Operating Voltage | 5 V |
| Power Consumption | 2.5 W |
| Device Compatibility | Windows and Mac computers, laptops, tablets and smartphones with full-featured USB-C |
| Conferencing Compatibility | Mainstream unified communications and video-conferencing services; Fanvil CA200 and CA400 wireless conferencing sets |
| Dimensions | 189 × 40 × 18 mm |
| Built-in USB Cable Length | 85 mm |
| Weight | 62 g |
| Operating Temperature | -10°C to +40°C |
| Operating Humidity | 0% to 90% RH |
| Compliance | CE, FCC and RoHS |
| Box Contents | Fanvil LINKVIL CP20 screen-sharing pod and quick start guide |
Simplify screen sharing in compatible meeting spaces with the Fanvil LINKVIL CP20, and add it to your cart today.
