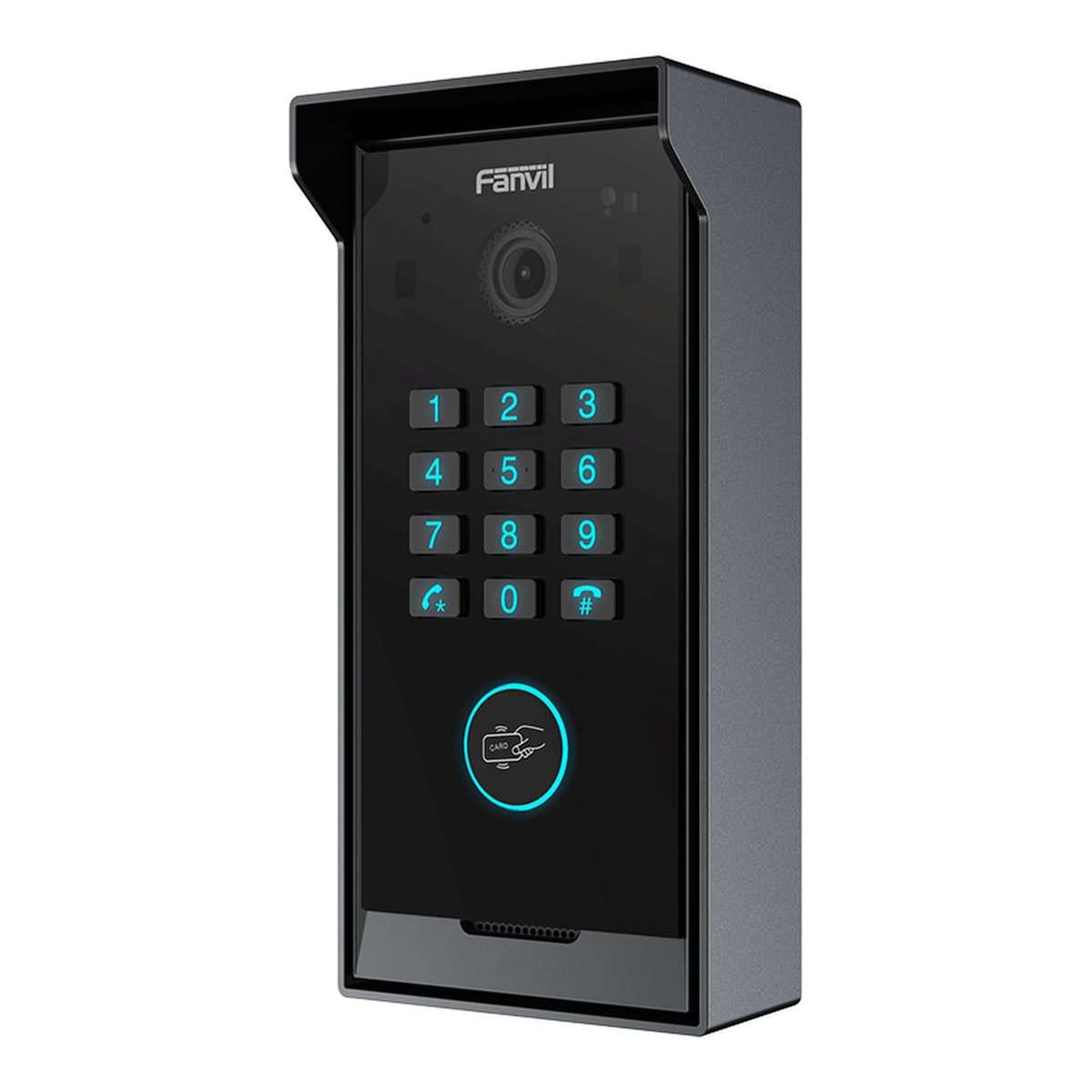

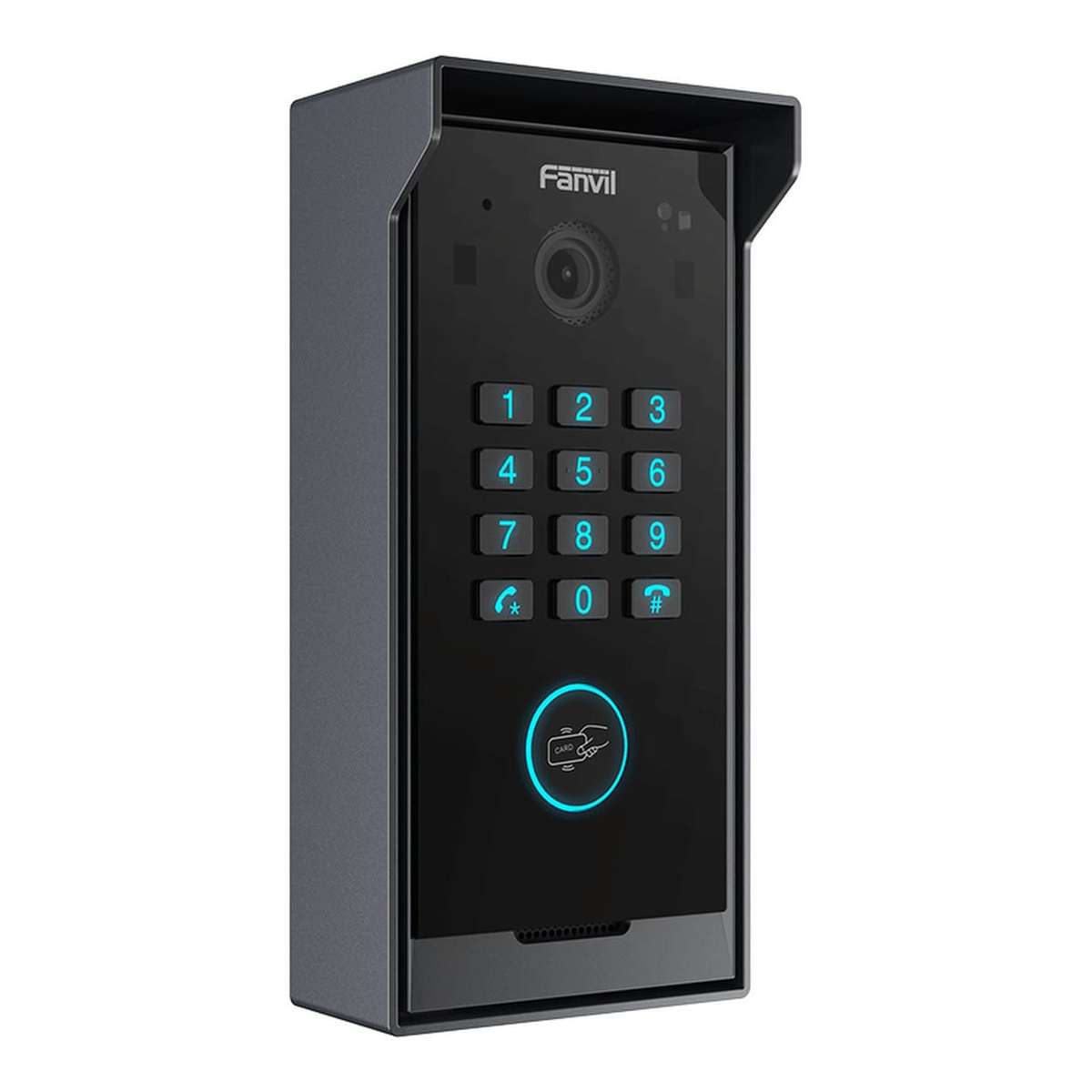

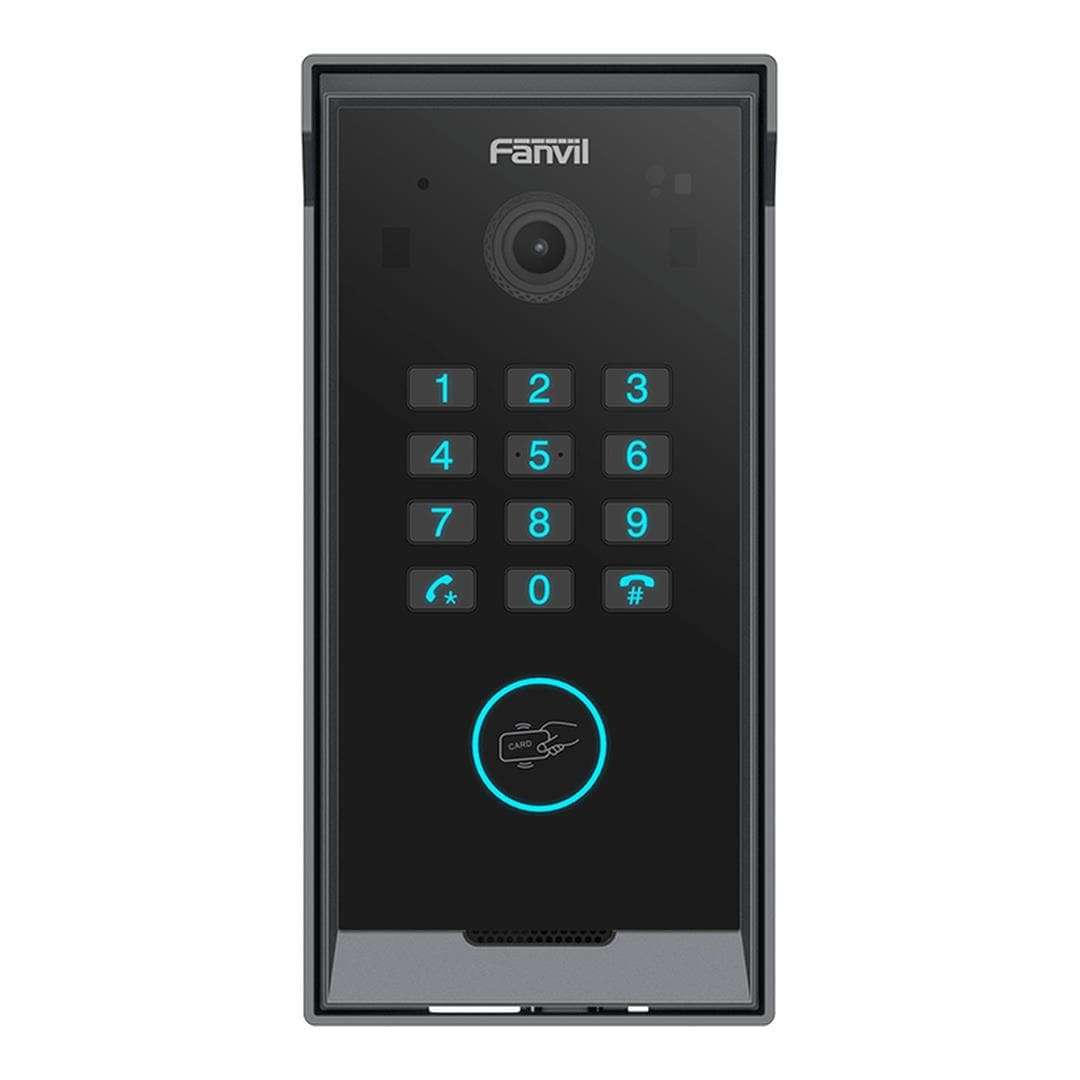

Fanvil i60K SIP Video Door Phone
The Fanvil i60K is a SIP video door phone designed to combine visitor communication, door access and security integration in one compact station. Its 2 MP HDR camera, numeric keypad and multiple entry methods make it suitable for villas, apartment buildings and residential communities. An IP65-rated housing and wide operating-temperature range support reliable indoor and outdoor installation.
Key Features:
- 2 MP HDR camera provides clear video communication, with infrared illumination supporting low-light operation.
- Numeric keypad and dedicated speed-dial button support convenient calling and secure entry.
- Multiple access methods include PIN, compatible IC card, Bluetooth, DTMF, app-based access and an indoor switch.
- IP65-rated enclosure helps protect the door phone against dust and water during outdoor use.
- SIP 2.0 and ONVIF Profile S support integration with compatible intercom and security systems.
- Full-duplex HD audio enables natural two-way conversations between visitors and occupants.
- Built-in relay, motion detection and tamper alarm provide practical functionality for access-control installations.
Built for Indoor and Outdoor Entrances
The i60K operates in temperatures from -40°C to +70°C and carries an IP65 protection rating, making it suitable for a variety of sheltered and exposed entrance installations. Its tamper alarm can notify the control centre if the cover is opened without authorisation.
Flexible Access Management

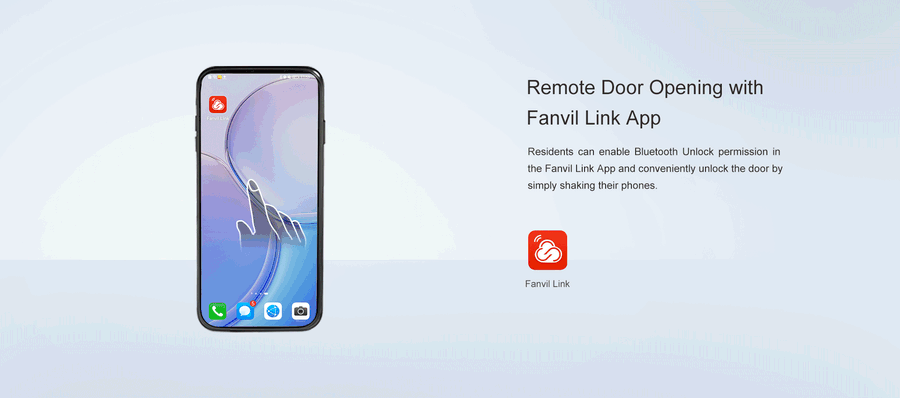

Residents and authorised users can unlock a connected entrance using a PIN, compatible 13.56 MHz IC card, Bluetooth, DTMF code, mobile app or indoor switch. Support for up to 10,000 cards makes the unit suitable for both individual properties and larger residential access-control deployments.
Clear Video and System Integration
The 2 MP camera offers a 140-degree diagonal field of view, infrared illumination and a minimum illumination level of 0.1 lux. SIP communication and ONVIF Profile S compatibility allow the i60K to work with suitable intercom, video-surveillance and access-control systems.
Technical Specifications:
| Specification | Details |
| Brand | Fanvil |
| Model | i60K |
| Product Type | SIP video door phone and access-control station |
| Recommended Applications | Residential communities, apartment buildings and villas |
| Controls | Numeric keypad and one speed-dial button |
| Camera | 2 MP HDR camera with 1/2.9-inch CMOS image sensor |
| Camera Field of View | 100° horizontal, 57° vertical and 140° diagonal |
| Low-Light Support | 0.1 lux minimum illumination with infrared illumination |
| Video Codec | H.264 Baseline Profile and Main Profile |
| Audio | Full-duplex HD audio |
| SIP Protocol | SIP 2.0 over UDP, TCP or TLS |
| ONVIF Support | ONVIF Profile S |
| Access Methods | PIN, compatible IC card, Bluetooth, DTMF code, app and indoor switch |
| Supported Card Types | MIFARE Classic 1K/4K, MIFARE DESFire, MIFARE Ultralight and MIFARE Plus |
| Card Frequency | 13.56 MHz |
| Card Capacity | Up to 10,000 cards |
| Access-Control Interfaces | Two short-circuit inputs, one short-circuit output and one Wiegand interface |
| Wiegand Support | 26-bit and 34-bit |
| Additional Functions | Built-in relay, motion detection, tamper alarm, TF card support and open API |
| Power Supply | 12 V DC, 1 A or IEEE 802.3af Class 3 PoE |
| Power Consumption | PoE: 1.63—6.93 W; power adaptor: 1.51—6.16 W |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +70°C |
| Protection Rating | IP65 |
| Casing Material | ABS and polycarbonate |
| Colour | Black front panel with gunmetal-grey housing |
| Dimensions | 70.7 × 30.0 × 149.7 mm (L × W × H) |
| Installation | Wall mounting using a bracket or rain cover |
| Gross Weight | 0.53 kg |
Improve visitor communication and manage compatible door access from one practical station with the Fanvil i60K, and add it to your cart today.
