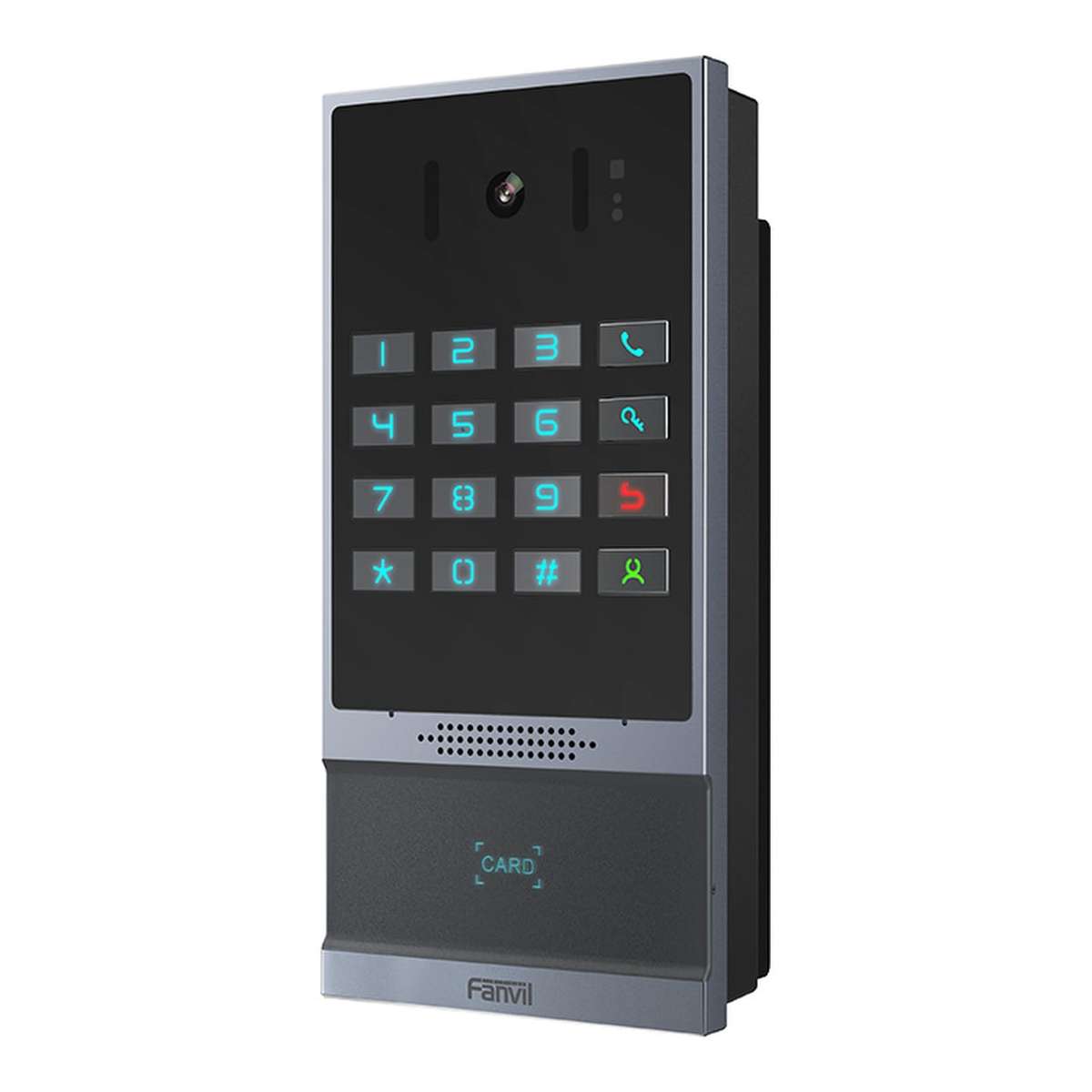

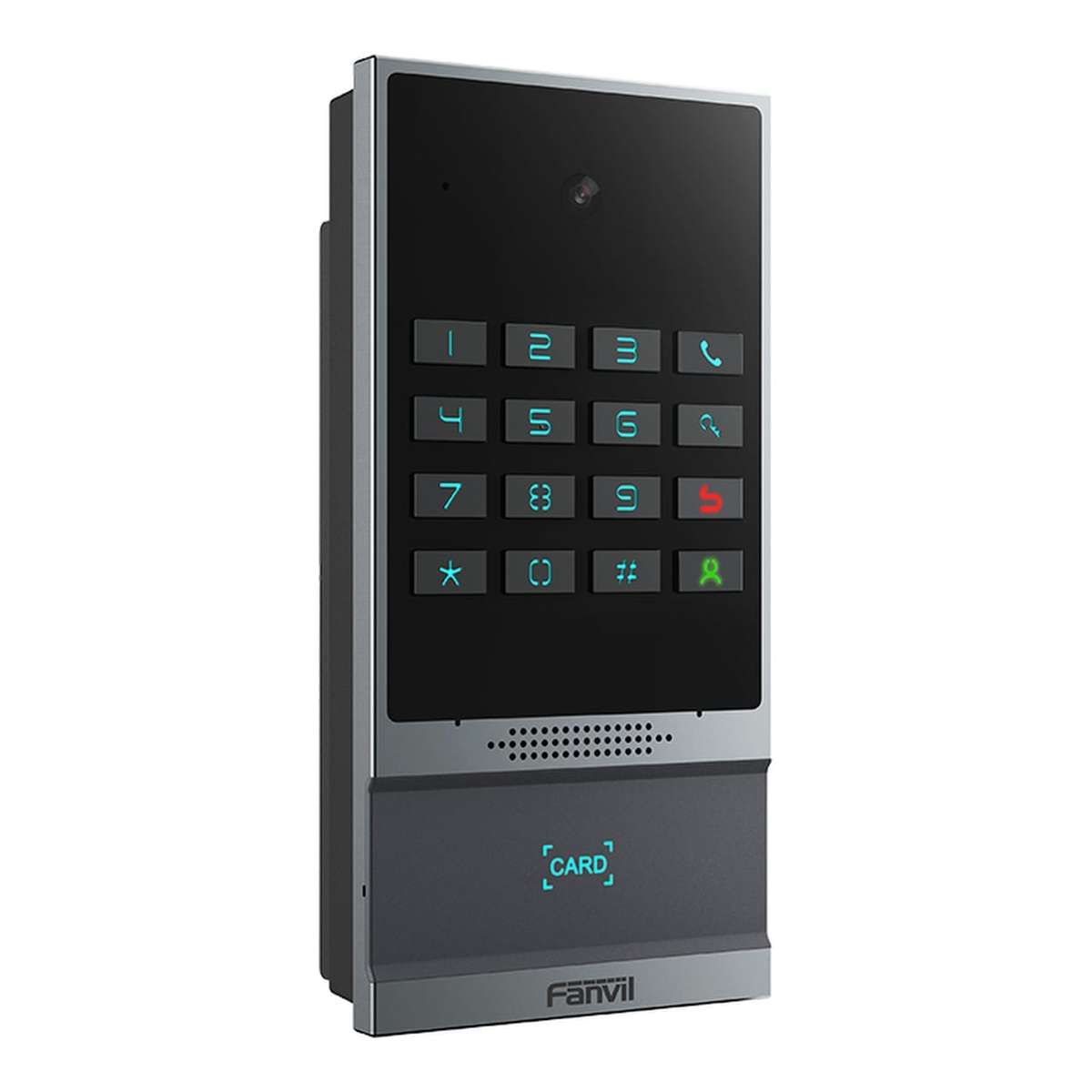

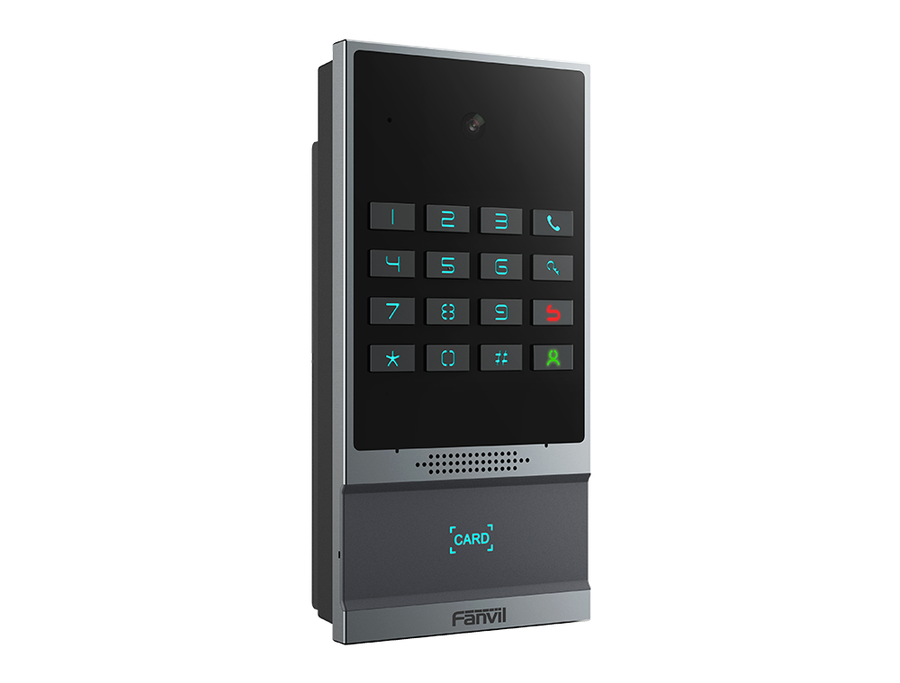

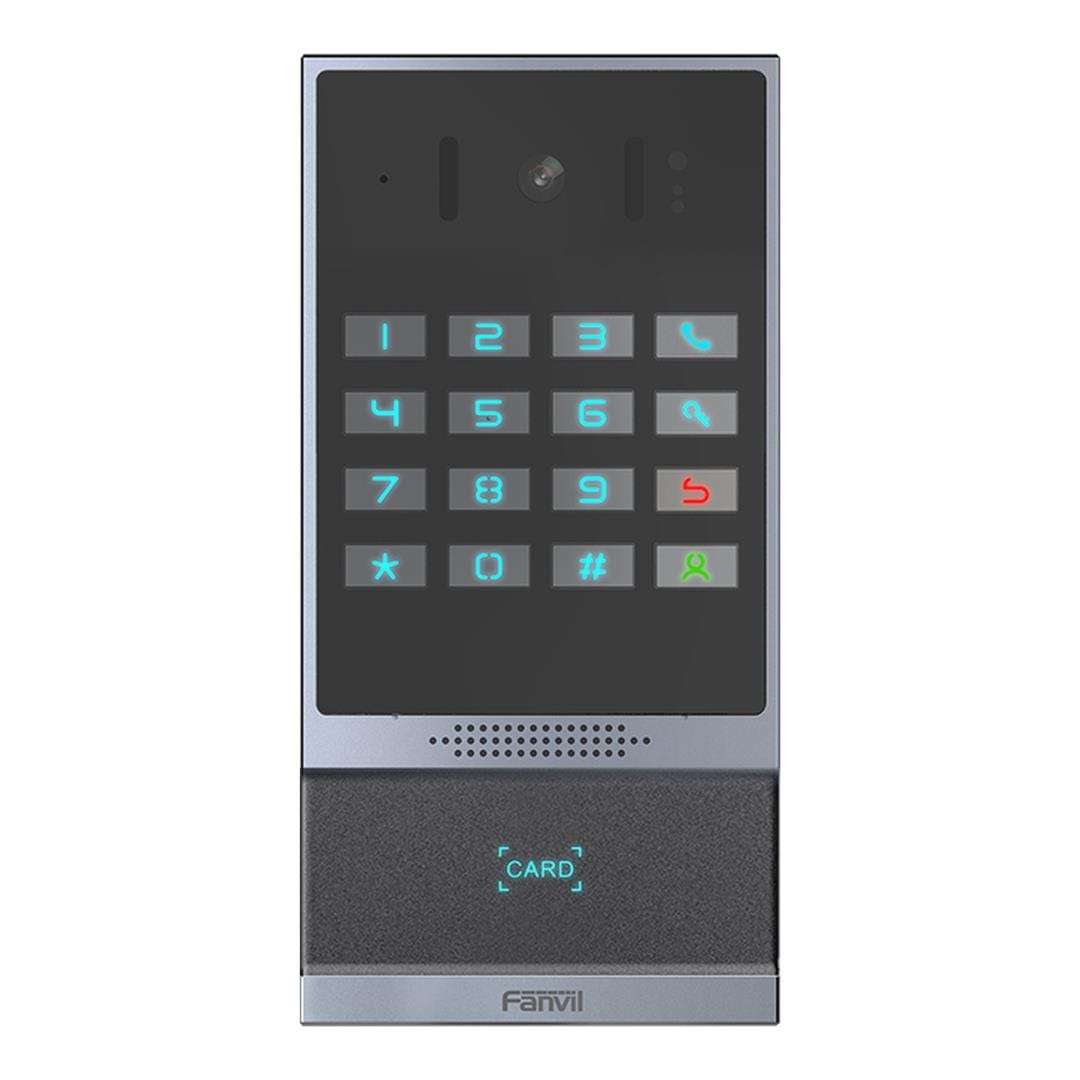

Fanvil i64 SIP IP66 Video Door Phone
The Fanvil i64 is a SIP and ONVIF video door phone designed to combine visitor communication, access control and security monitoring in one outdoor-ready unit. Its 2-megapixel wide-angle camera, full-duplex audio and illuminated numerical keypad help users identify visitors and manage entry at residential communities, apartment buildings, hotels and commercial premises. An aluminium-alloy housing with IP66 and IK07 protection makes it suitable for demanding outdoor installations.
Built for Outdoor Entry Points
The i64 is protected against dust and water to IP66 and carries an IK07 impact-resistance rating. Its tamper alarm can notify the control centre if the unit is opened without authorisation, while its broad operating temperature range supports installation in varied outdoor conditions.
Flexible Access Control
Visitors can contact occupants using the speed-dial control, while authorised users can unlock the entrance with an IC or ID card, PIN, DTMF code, indoor switch or configured application. The integrated reader supports up to 10,000 cards, making the unit practical for both residential and commercial access-control systems.
Clear Video and Two-Way Communication
A 2-megapixel camera provides a 120-degree horizontal and 60-degree vertical field of view, with infrared illumination for low-light monitoring. Full-duplex HD audio, acoustic echo cancellation and a built-in 2.5 W speaker support natural two-way conversations between visitors and occupants.
Integration with Security Systems
Support for SIP and ONVIF Profile S allows the i64 to work with compatible communication, surveillance and access-control platforms. Three contact inputs, two relay outputs, Wiegand, RS-485 and a line-level output provide options for connecting door sensors, locks, exit controls and induction-loop equipment.
Key Features:
- 2-megapixel wide-angle camera with infrared illumination for video monitoring in low-light conditions.
- IP66 weather protection and IK07 impact resistance for demanding outdoor entry points.
- Illuminated keypad with 12 numerical keys and four function keys.
- Multiple access methods, including IC or ID card, PIN, DTMF code and indoor switch.
- Supports up to 10,000 access cards for larger residential and commercial installations.
- Full-duplex HD audio with acoustic echo cancellation and a 2.5 W speaker.
- Up to 128 GB TF card support for local image storage.
Technical Specifications:
| Specification | Details |
| Brand | Fanvil |
| Model | i64 |
| Product Type | SIP video door phone and access-control terminal |
| Recommended Applications | Residential communities, apartments, villas, hotels and commercial buildings |
| SIP Lines | 2 |
| Supported Platforms | SIP 2.0 over UDP, TCP or TLS; ONVIF Profile S |
| Camera | 2-megapixel camera with 1/2.9-inch CMOS sensor |
| Camera Field of View | 120° horizontal, 60° vertical |
| Low-Light Support | 0.1 lux minimum illumination with infrared illumination support |
| Video Codec | H.264 Baseline Profile and Main Profile |
| Audio | Full-duplex HD audio with acoustic echo cancellation and 2.5 W speaker |
| Wideband Audio Codecs | G.722 and Opus |
| Narrowband Audio Codecs | G.711A/U, G.729A/B, iLBC, G.723.1 and G.726-32K |
| Keypad | 16 illuminated keys: 12 numerical keys and 4 function keys |
| Access Methods | IC or ID card, PIN, DTMF code, indoor switch and supported application |
| Card Capacity | Up to 10,000 cards |
| Card Frequencies | 13.56 MHz and 125 kHz |
| Local Storage | TF card slot supporting up to 128 GB |
| Network | 10/100 Mbps Ethernet with IPv4 and IPv6 support |
| Security Interfaces | 3 contact inputs, 2 relay outputs, Wiegand interface, RS-485 interface and line-level output for an induction loop |
| Additional Security Functions | Motion detection, tamper alarm and built-in relay |
| Power Supply | 12 V DC, 1 A or IEEE 802.3af Class 3 PoE |
| Housing | Aluminium alloy |
| Colour | Gunmetal grey |
| Protection Rating | IP66 and IK07 |
| Operating Temperature | -40°C to +70°C |
| Installation | Wall mounting or flush mounting with the separately available Fanvil EX102 bracket |
| Dimensions | 177.4 × 88 × 36.15 mm |
| Gross Weight | 0.72 kg |
Improve visitor communication and manage building access with the Fanvil i64, and add it to your cart today.
