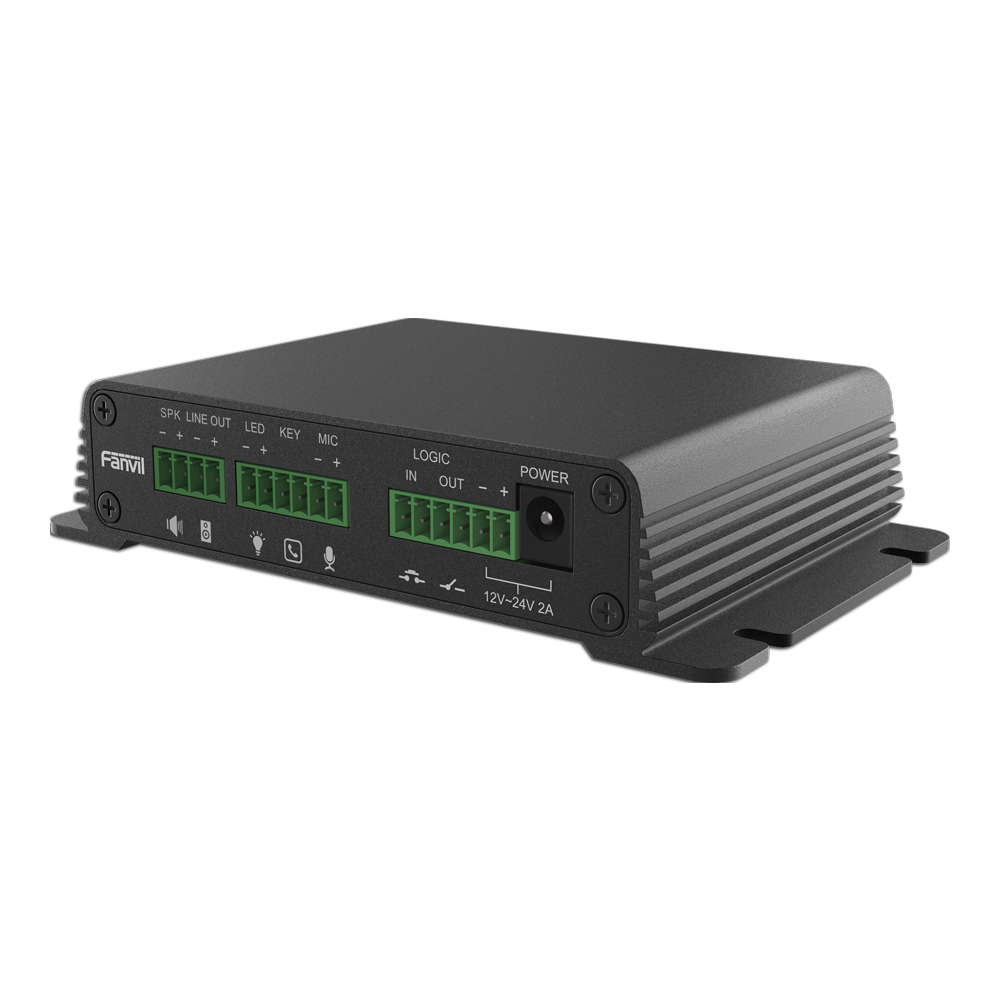

Fanvil PA2S SIP Audio/Video Intercom and Paging Gateway
Flexible SIP Intercom, Paging and Public Address Integration.
The Fanvil PA2S is a compact SIP audio/video intercom and paging gateway designed for industrial, commercial and access control applications. It supports 2 SIP lines, IP camera integration, multicast paging, MP3 broadcasting, recording and programmable emergency call buttons. Multiple audio interfaces allow connection to microphones, active speakers and passive speakers, while the integrated mono amplifier delivers up to 30W depending on the selected power source. Short-circuit input and relay output interfaces support integration with sensors, electric locks and alarm devices. With PoE, external DC power, web management and automatic provisioning, the PA2S provides a flexible platform for customised intercom and public address systems.
FEATURES
SIP Audio and Video Intercom - Integrates SIP voice communication with a compatible IP camera for video intercom applications
Public Address Gateway - Supports paging, announcements, multicast audio and MP3 broadcasting
2 SIP Lines - Provides two SIP accounts for flexible communication deployment
Integrated Amplifier - Delivers up to 30W mono speaker output depending on the power source
Passive Speaker Support - Directly powers a compatible 4 or 8 passive speaker
Active Speaker Output - Can connect an external powered speaker or amplifier through the adjustable line output
Microphone and Line Input - Multipurpose input supports a compatible microphone or external audio source
Emergency Call Button Support - Programmable DSS interface connects external call or assistance buttons

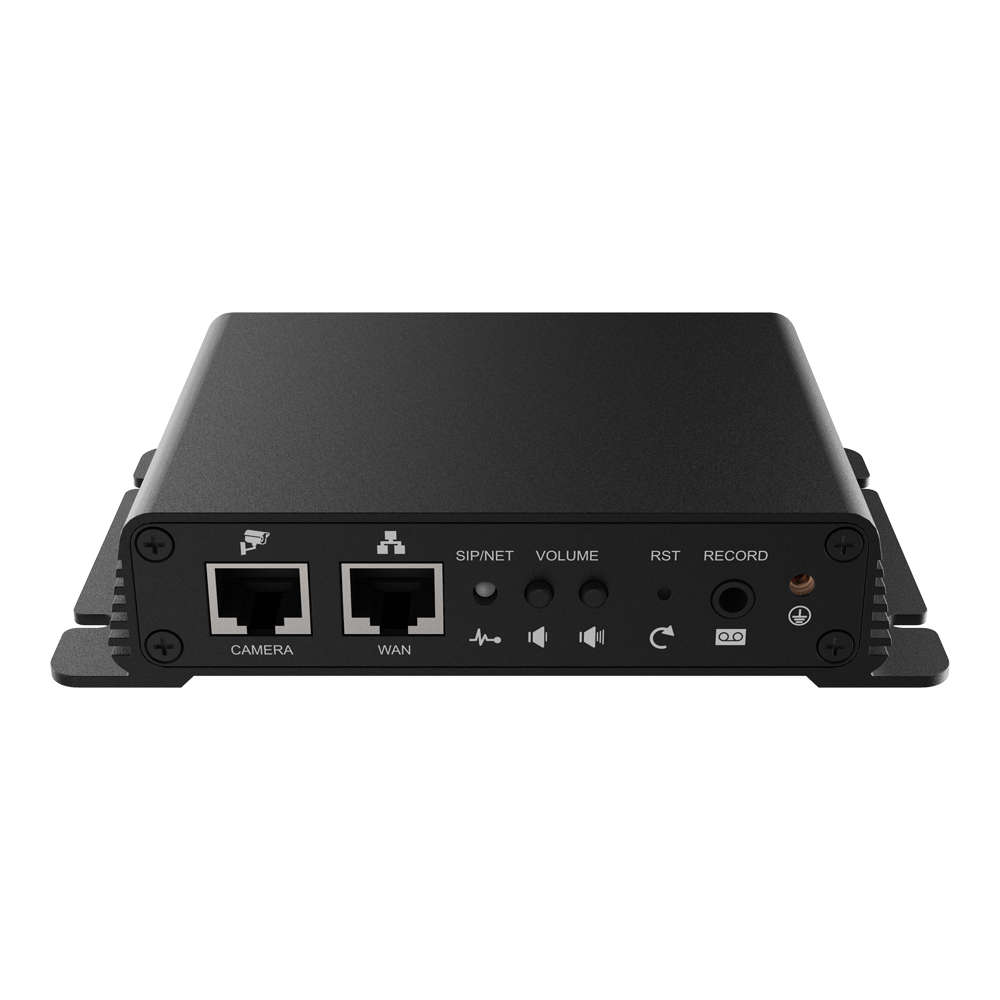

Camera Integration - Dedicated RJ45 camera port links the PA2S with a compatible IP camera
Recording Output - Provides mixed output of local microphone and call audio through a 3.5mm port
Short-Circuit Input and Relay Output - Integrates sensors, alarm lights, electric locks and other compatible equipment
Auto-Answering - Automatically answers configured SIP and intercom calls
Multicast Paging - Sends and receives RTP multicast audio without standard SIP call signalling
Time Plan Management - Schedules playback, restart, upgrade and other supported actions
PoE Support - Receives network connectivity and power through the WAN port
Web-Based Management - Supports browser configuration, firmware upgrades, system logs and packet capture
Automatic Provisioning - Supports FTP, TFTP, HTTP, HTTPS, DHCP Option 66, SIP PnP and TR-069
Aluminium-Alloy Housing - Durable compact enclosure for professional installations
SPECIFICATIONS
SIP Lines: 2
Network Ports: 2× RJ45 10/100Mbps Ports
Network Interfaces: 1× PoE WAN Port, 1× Camera Port
PoE: Supported
PoE Level: Class 3
External Power Input: DC12V~24V 2A

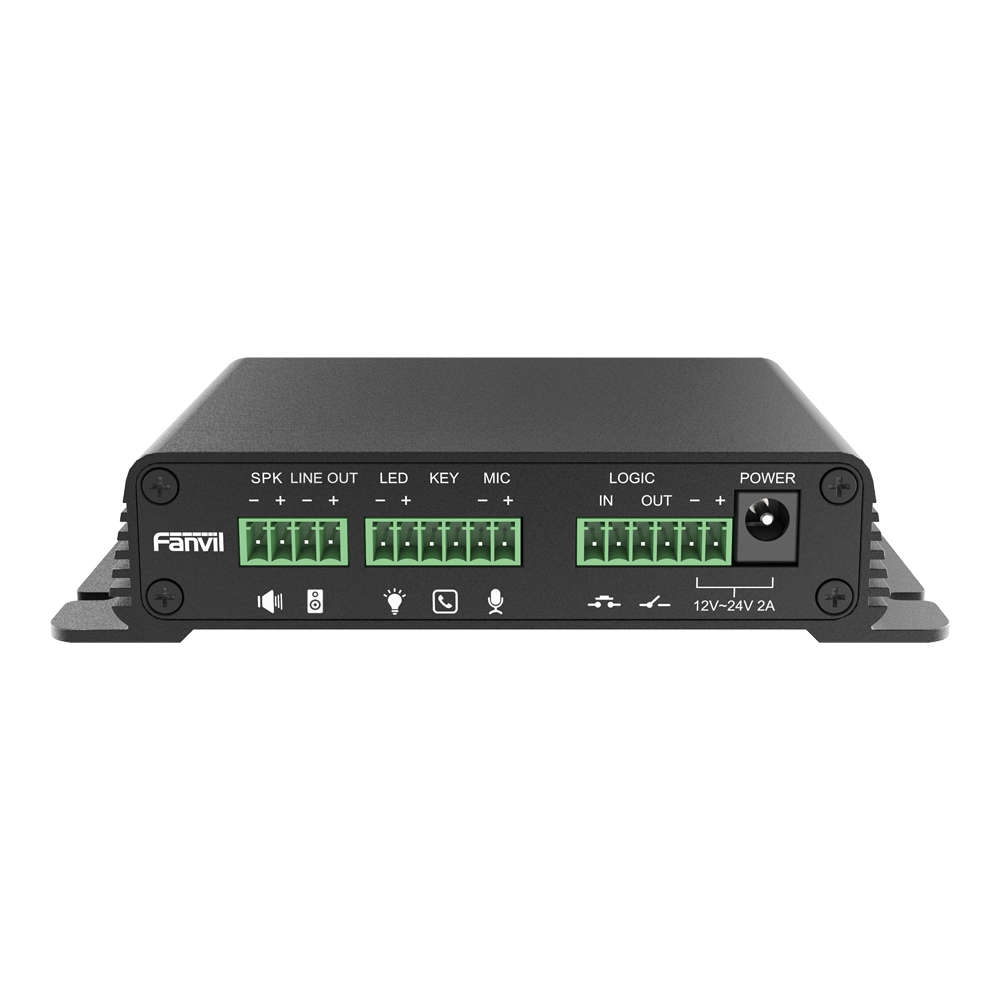

Power Inputs: 1× 5.5mm DC Port, 1× 2-Pin Terminal Input
Amplifier Type: Integrated Mono Amplifier
Passive Speaker Output: 1× Terminal Socket
Speaker Impedance: 4 or 8
4 Speaker Output with PoE: up to 10W
4 Speaker Output with 12V/2A: up to 10W
4 Speaker Output with 18V/2A: up to 20W
4 Speaker Output with 24V/2A: up to 30W
8 Speaker Output with PoE: up to 5W
8 Speaker Output with 12V/2A: up to 5W
8 Speaker Output with 18V/2A: up to 10W
8 Speaker Output with 24V/2A: up to 15W
Line Output: 1× Terminal Socket, Adjustable up to 1.2Vpp
Recording Output: 1× 3.5mm Audio Port
Microphone/Line Input: 1× Multipurpose Terminal Socket
Recommended Microphone: Electret Condenser Microphone
Microphone Sensitivity: -38dB
Microphone Impedance: 2.2k
Microphone Bias Voltage: 2.54Vpp
DSS Key Port: 1× Programmable Button Interface with LED Support
DSS LED Output: 5V DC 5mA
Short-Circuit Input and Output: 1× Interface with Built-In Relay
Relay Rating: Maximum DC30V 2A or AC125V 0.5A
Controls: Volume Up, Volume Down and Reset
Status Indicator: 1× Blue SIP and Network LED
Wideband Codecs: G.722 and Opus
Narrowband Codecs: G.711A/U, G.729A/B, iLBC, G.723.1 and G.726-32K
Audio Processing: Full-Duplex Acoustic Echo Cancellation
DTMF: In-Band, RFC2833 and SIP INFO
IP Modes: IPv4, IPv6 and IPv4/IPv6
IP Configuration: Static IP, DHCP and PPPoE
VPN: L2TP and OpenVPN
Network Features: VLAN, LLDP, QoS and 802.1X
SIP Protocol: SIP V1 and SIP V2 over UDP, TCP and TLS
Media Protocols: RTP, RTCP, SRTP and RTSP
Management: Web Portal, Configuration Import and Export, Firmware Upgrade, Syslog and Packet Capture
Housing Material: Aluminium-Alloy
Installation: Desktop or Wall-Mounted
Colour: Black
Device Dimensions: 113 × 83 × 28mm
Working Temperature: -30~60°C
Storage Temperature: -30~60°C
Working Humidity: 10~95%
Certifications: CE, FCC and RoHS
Safety Compliance: EN 62368-1 Compliant
NOTES
The PA2S does not include a built-in camera and requires a compatible external IP camera for video intercom functions
Speaker output depends on the connected speaker impedance and selected power source
PoE or 12V 2A DC supports up to 10W output with a compatible 4 speaker
18V 2A DC supports up to 20W output with a compatible 4 speaker
24V 2A DC supports up to 30W output with a compatible 4 speaker
Default panel speaker mode limits output to below 10W to help protect compatible integrated speakers
When PoE and external DC power are connected simultaneously, PoE is used as the primary power source
