Fanvil Single Port FXS Gateway ATA | G100S
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details

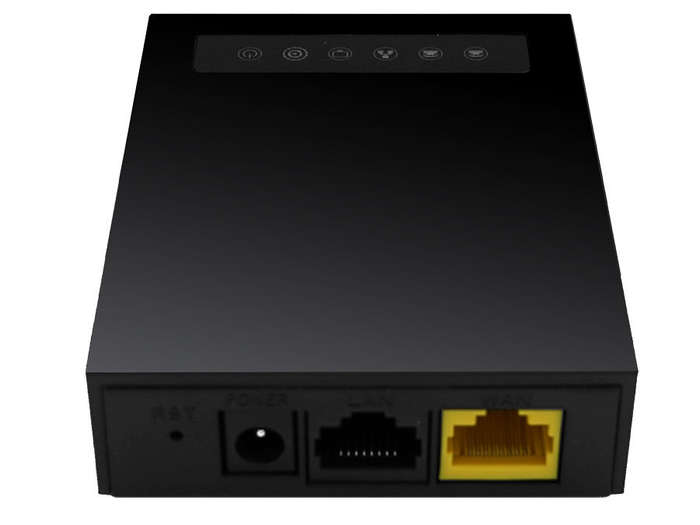

Fanvil\’s FAN-G100S is an analog telephone adapter that provides a cost effective way to convert 1 existing analog interface for residential users and small business to that of an IP-based network.
Ports: 1 FXS Port
Telephone Interface: RJ11
Network Interfaces: 2x 10/100 Base – T Ethernet (1x LAN, 1x WAN)
Protocol: SIP (RFC3261)
Transport: UDP, TCP
Codec: G.711A/u, G.729AB, G.726-32
DTMF Mode: In-band, RFC 2833 and SIP INFO
Voice Capability: Background noise suppression, Adaptive Jitter Buffers
Fax: T.38 support (Fax over VoIP)
QoS
Network: DHCP, PPPoE, Static Route, VLAN
Network Protocol: HTTP, HTTPS, FTP, TFTP
Caller ID: FSK/DTMF
Power Adapter Output: DC 12V/0.5A
Power Adapter Input: AC 100-240V
Power consumption: IDLE: 2.5W Active: 2.8W
Humidity: 10-65%
Operating Temperature: 0°C to 40°C
Mounting: Desktop
