Fanvil - V50G Basic Level IP Phone - Fanvil - V50G Basic Level IP Phone

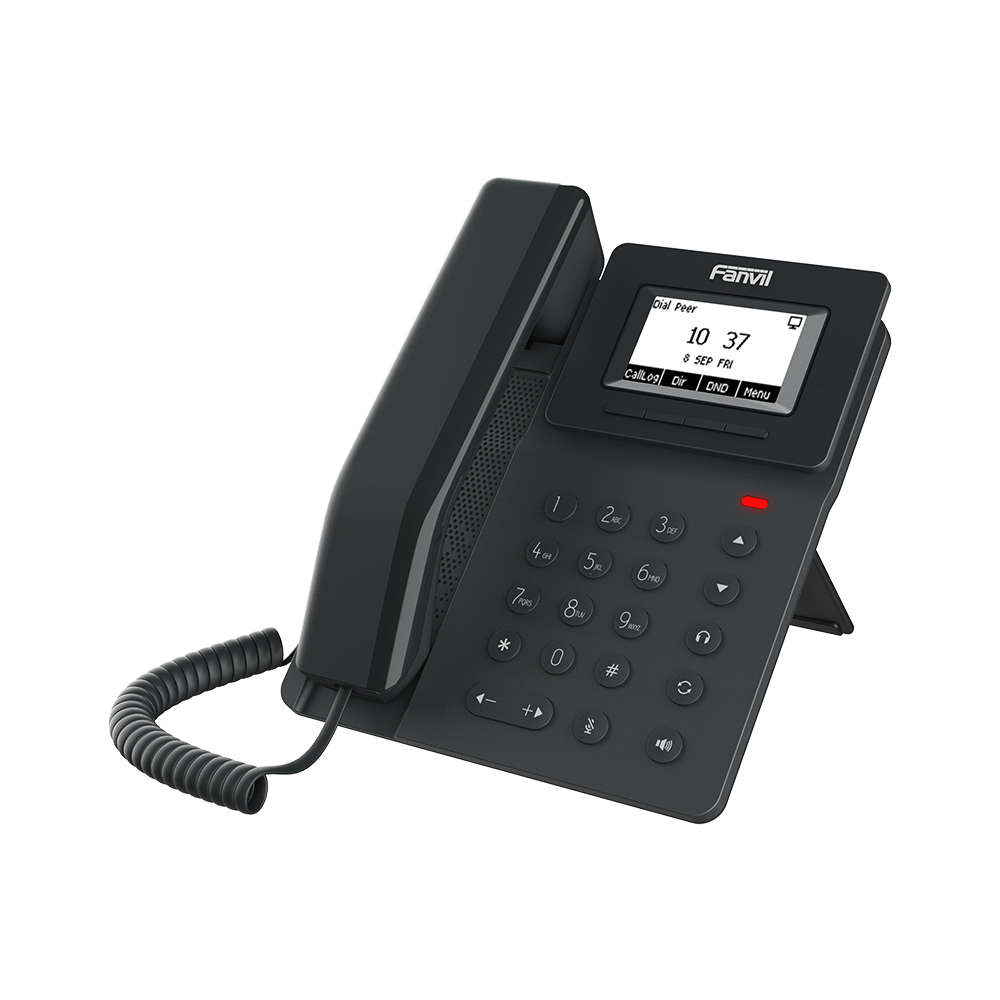

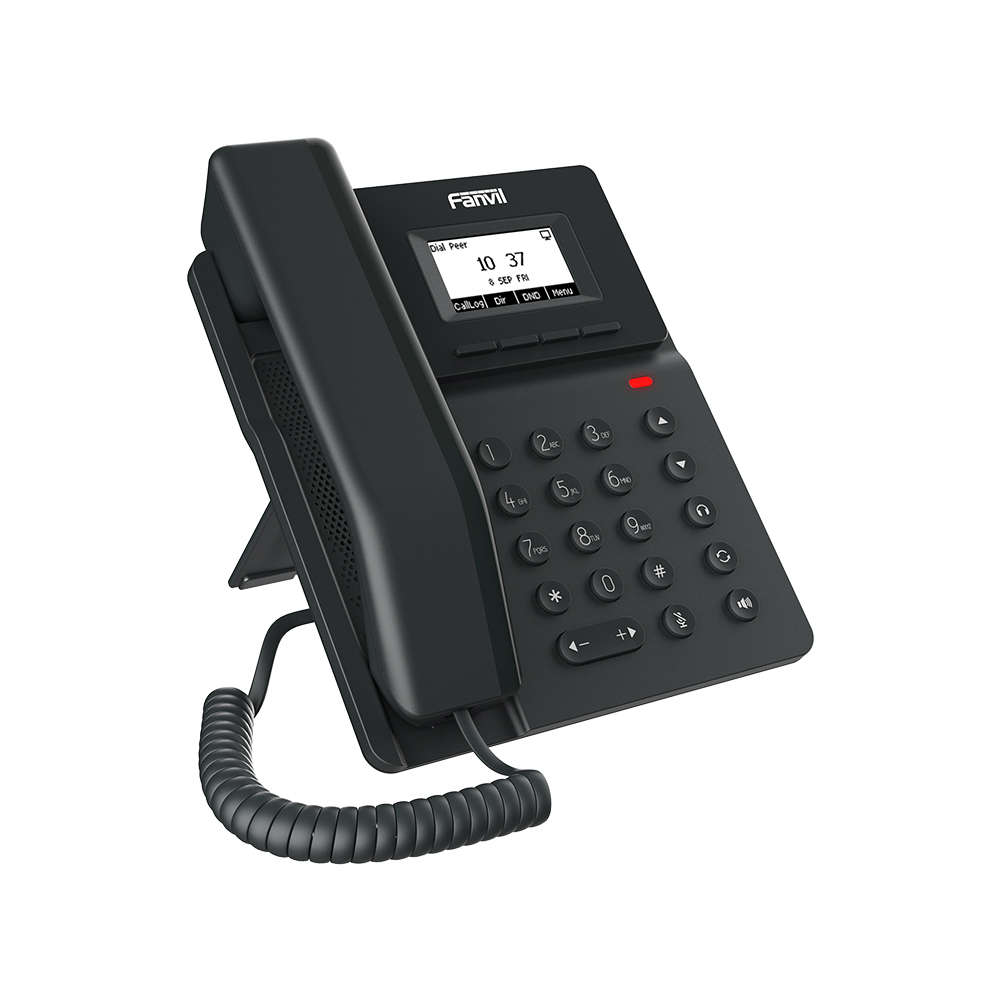

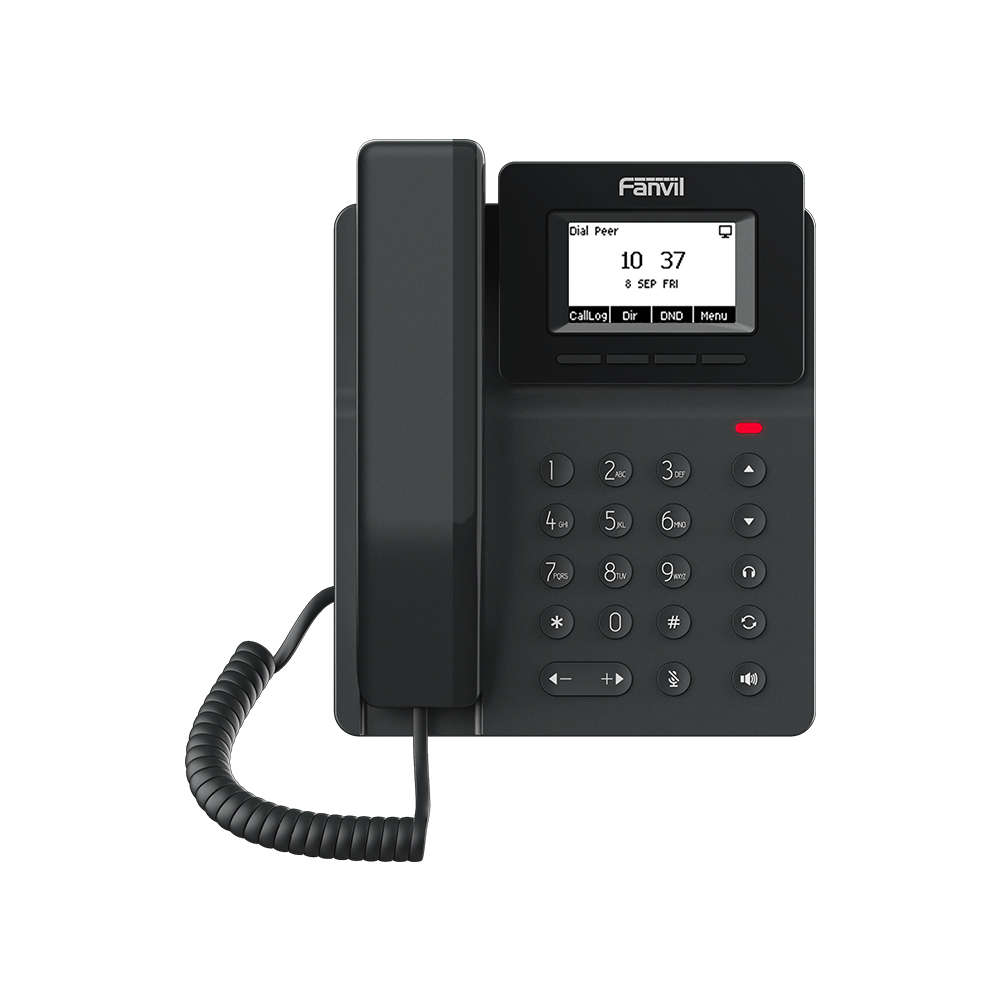

Fanvil V50G Cost-Effective IP Phone with 2.3" Dot-Matrix Screen

Reliable Business Communication Made Simple.

The Fanvil V50G Business IP Phone is a dependable cost-effective communication solution designed for modern offices and professional environments. Featuring a 2.3" dot-matrix display, HD voice technology and Gigabit network connectivity, it delivers clear call information and efficient call handling for everyday business communication. With support for multiple SIP lines and PoE power, the V50G provides flexible deployment and reliable performance for offices, reception desks and enterprise networks.

FEATURES

2.3" Dot-Matrix Display - 132 × 64 pixel screen with backlight for clear visibility
HD Voice Audio - Supports G.722 and Opus codecs for high-quality sound on handset and speakerphone
6-Way Audio Conference - Enables efficient multi-party communication
Gigabit Ethernet Connectivity - Dual 10/100/1000Mbps ports with integrated PoE support
HAC Handset Support - Hearing Aid Compatible handset with full-duplex hands-free speaker
Flexible Installation - Supports desktop stand or wall-mount installation
EHS Headset Support - Compatible with EHS wireless headsets for hands-free operation

SPECIFICATIONS

GENERIC
2.3" Dot-Matrix Display: 132 × 64 with Backlight
2× SIP Lines
HD Voice Support
PoE Enabled: IEEE 802.3af
Handset, Hands-Free and Headset Modes
Installation: Desktop Stand or Optional Wall Mount
Optional External Power Supply Support
Handset with Hall-Effect Sensor Switch

PHONE FUNCTIONS
Local Phonebook: up to 1,000 Entries
Remote Phonebook Support: XML / LDAP
Call Logs: Incoming, Outgoing, Missed (up to 1,000 Entries)
Blocked / Allowed Call Lists
Voice Message Waiting Indication (MWI)
Programmable Soft Keys
Network Time Synchronisation
Wireless Headset Support: Poly / Jabra via EHS Cables
Server-Based Call Recording Support
XML Browser Support
Customisable UI, Background and Ringtones

CALL FUNCTIONS
Call Out / Answer / Reject
Call Hold / Resume / Call Waiting
Caller ID Display
Speed Dial Support
Call Transfer: Attended and Unattended
Call Forwarding: Always / Busy / No Answer
Do Not Disturb (DND) with Timed Option
6-Way Audio Conferencing
Hot Desking Support
Direct IP Call Without SIP Proxy
Auto-Redial / Call Completion

AUDIO
HD Voice on Handset and Speakerphone
Wideband Codec Support: G.722, Opus
Narrowband Codec Support: G.711, G.729, G.726, G.723.1
16kHz ADC / DAC Audio Processing
Full-Duplex Acoustic Echo Cancellation (AEC)
Noise Reduction and Automatic Gain Control (AGC)
Voice Activity Detection (VAD)
Packet Loss Concealment (PLC)
Dynamic Adaptive Jitter Buffer
DTMF Support: RFC2833 / SIP INFO / In-Band

NETWORK
Gigabit Ethernet: 10/100/1000Mbps Dual Ports
PC Passthrough Network Port
IPv4 / IPv6 Support
IP Configuration: Static IP / DHCP / PPPoE
802.1x Network Authentication
VLAN Support
QoS Traffic Prioritisation
VPN Support: L2TP / OpenVPN
LLDP Network Discovery
Redundant SIP Server Support

PROTOCOLS
SIP v1 / SIP v2 Support
Transport Protocols: UDP / TCP / TLS
SRTP Secure Voice Encryption
STUN NAT Traversal Support
DHCP Network Configuration
SNTP Time Synchronisation
FTP / TFTP / HTTP / HTTPS Management Protocols
TR-069 Remote Device Management
AES128 / AES256 Encryption

DEPLOYMENT AND MANAGEMENT
Auto-Provisioning: FTP / TFTP / HTTP / HTTPS / DHCP
SIP Plug-and-Play Provisioning
Web Management Interface
Firmware Upgrade Support
Configuration Import / Export
Phonebook Import / Export
Syslog Monitoring Support
Web-Based Packet Capture
Built-In Network Firewall

PHYSICAL
2.3" Backlit LCD Display: 132 × 64

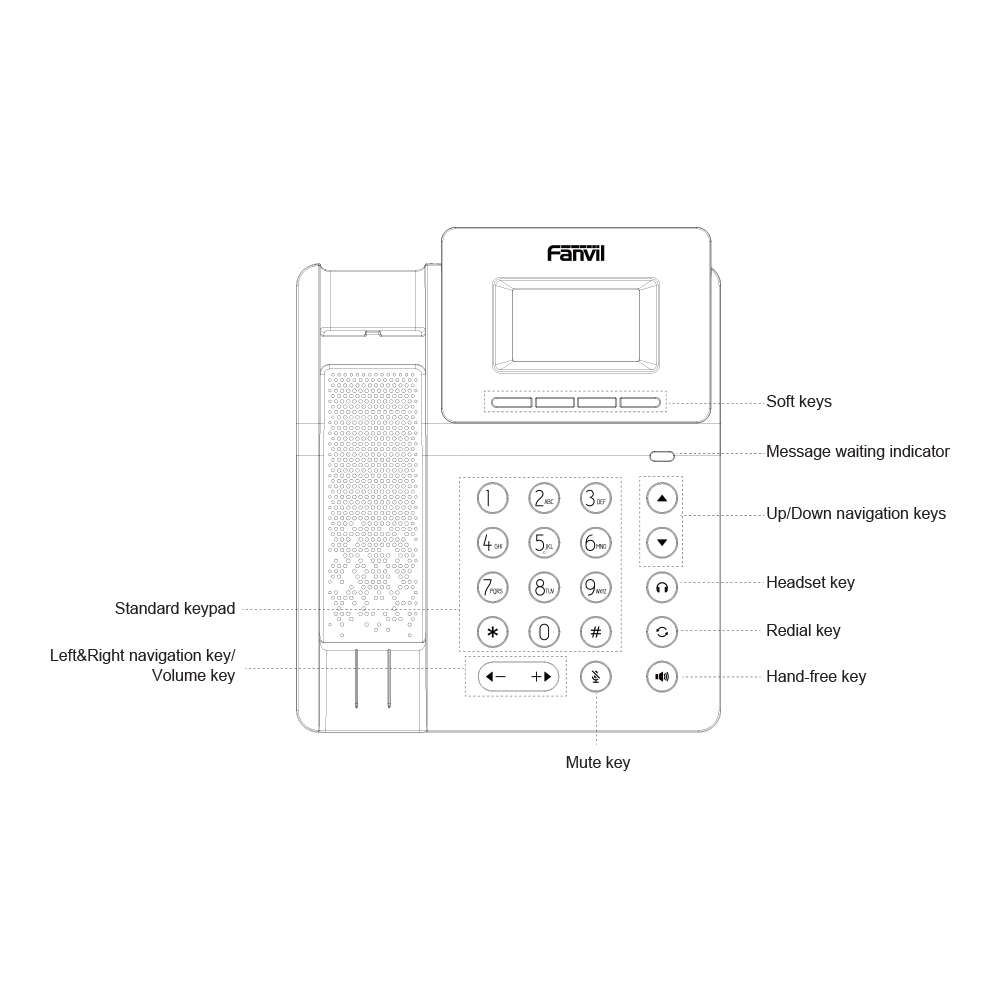

24-Key Keypad with Navigation and Soft Keys
HD Handset with Hall Switch

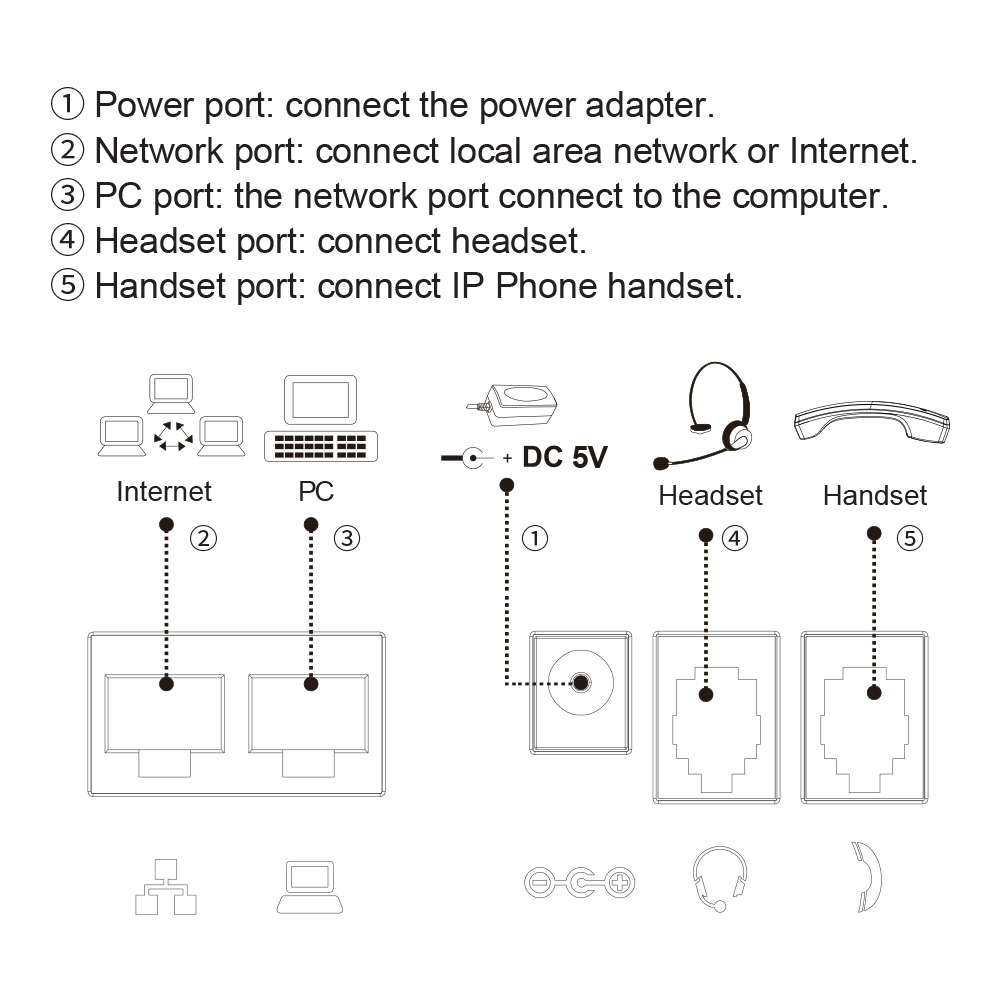

RJ9 Ports for Handset and Headset
Dual RJ45 Ports: Network + PC Passthrough
PoE: IEEE 802.3af or 5V DC Power Adapter (Optional Extra)
Power Consumption: 1.45~2.37W (PoE)
Operating Temperature: 0~45°C
Installation: Desktop Stand or Wall Mount (Optional Extra)
Dimensions: Approx. 173 × 185 × 170mm (Desktop Mode)
