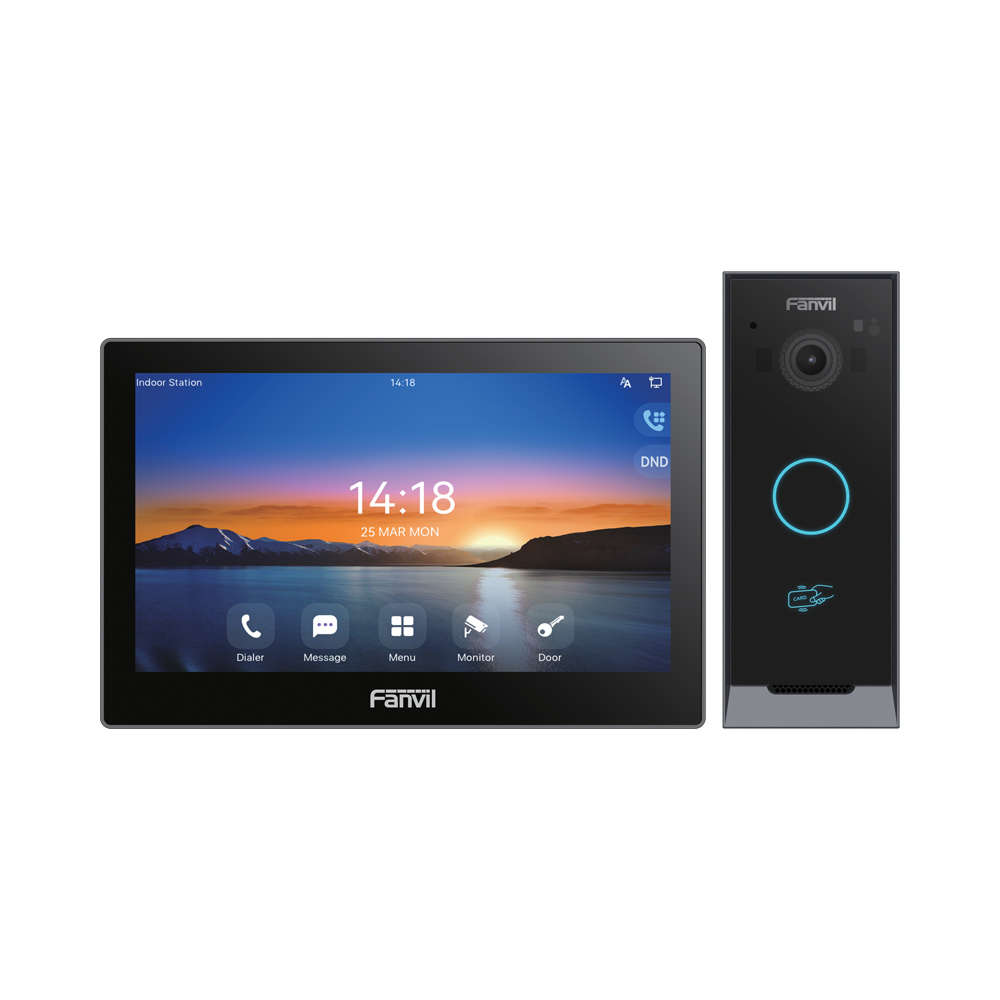

Fanvil VIK-01 Intercom Kit - 7" Colour Touch Screen Indoor Station, 2W Speaker and 2MP Video Door Phone - Dual-Band Wireless
Single-Family Smart Key: Instant Access

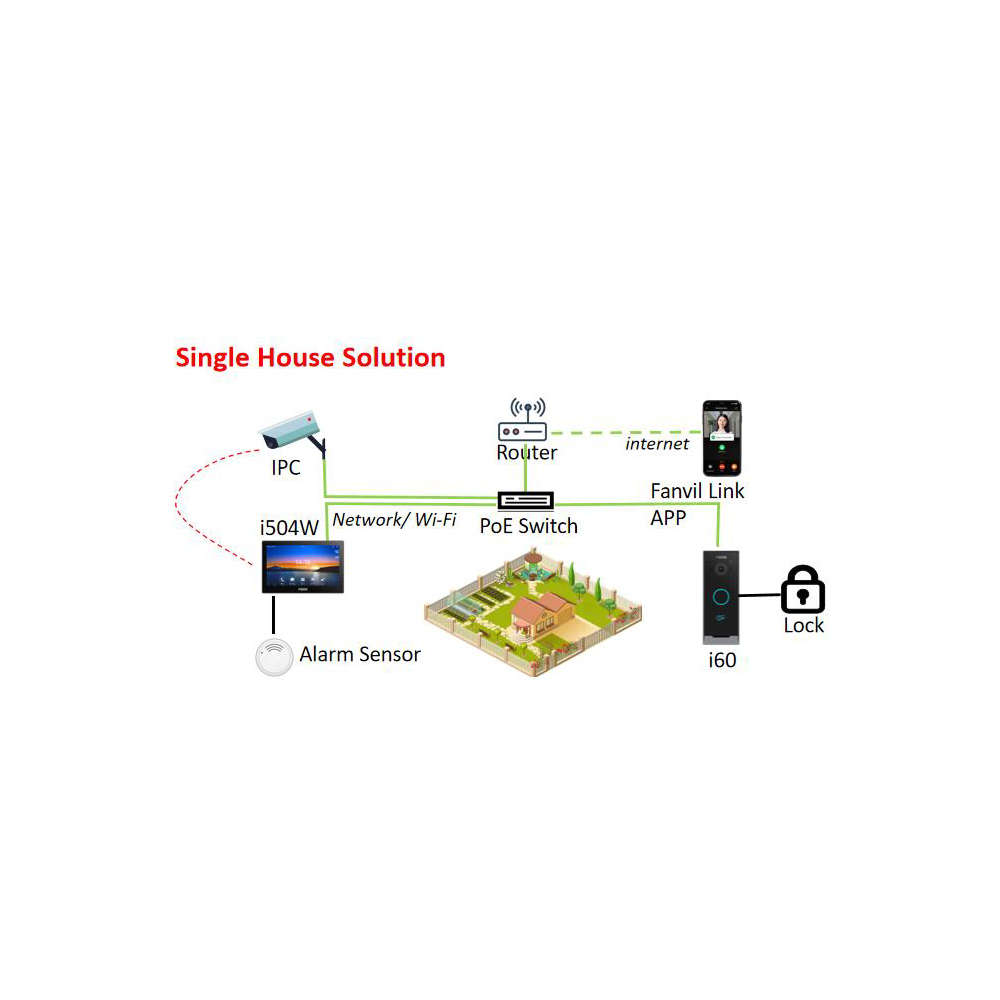

The Fanvil VIK-01 Video Intercom Kit integrates the i504W SIP Indoor Station, i60 Video Door Phone and Fanvil Link App. Users can make HD video calls and remotely unlock doors via the indoor unit or Fanvil Link App, with multiple unlocking options and 2.4GHz/5.0GHz Wi-Fi support. Achieve plug and play deployment with simple power and network connections.
FEATURES
Plug and play, quickly deployment
Flexible door access methods
Monitor door phone camera footage on both mobile and indoor station

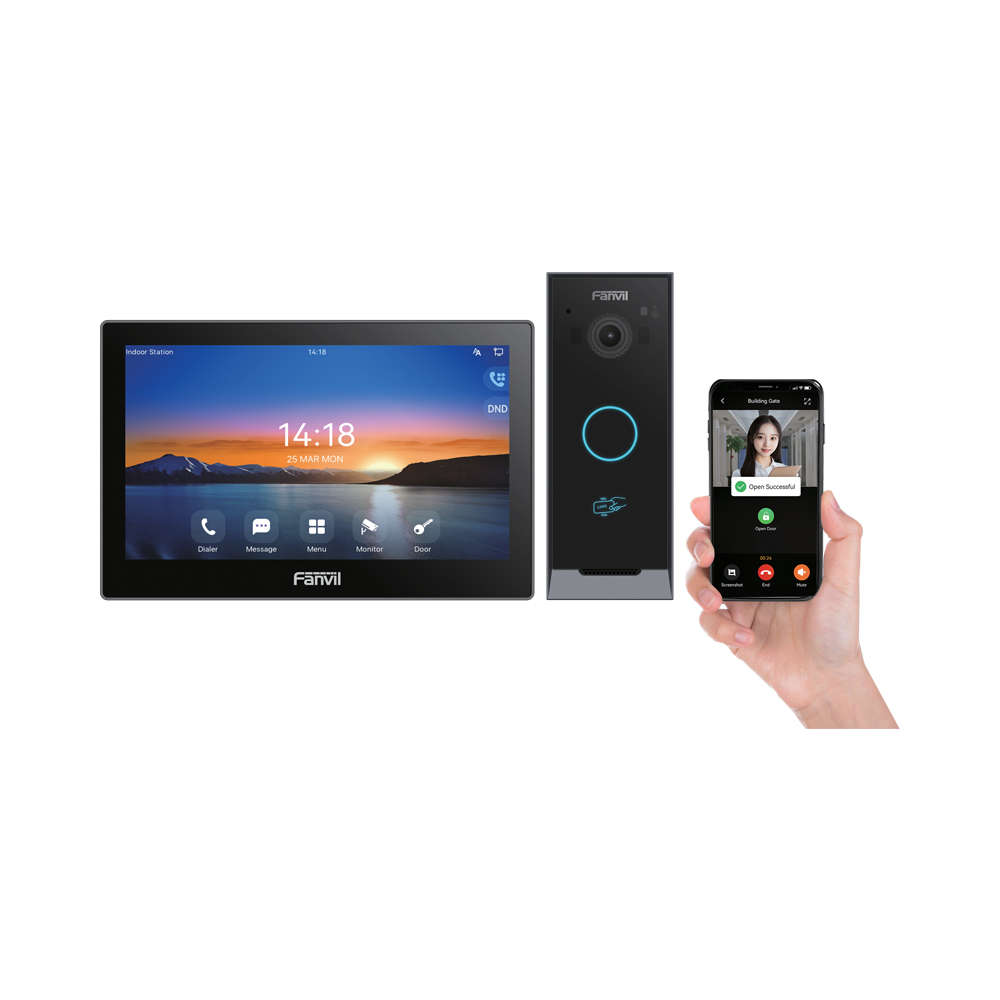

Remote door opening anytime, anywhere
Supports one-touch calling
CCTV integration
FANVIL I504W SPECIFICATIONS
Screen: 7" 1024×600 Colour Capacitive Touch Screen
Body: ABS
Speaker: 2W
Wi-Fi: 2.4GHz/5.0GHz

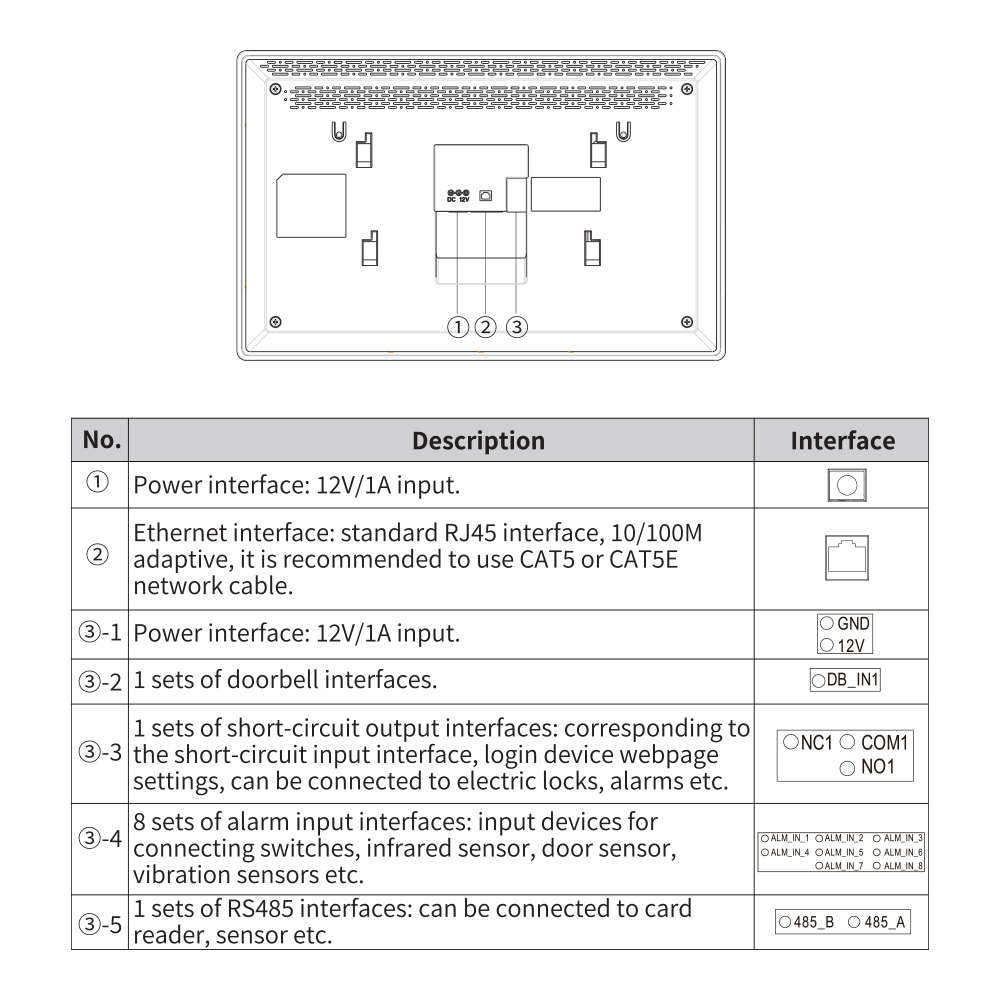

Interface: 8× Alarm Input, 1× Short -Circuit Output, 1× Doorbell input, 1× RS485 (Reserved)
Network: 10/100Mbps Adaptive
Power Supply:
DC12V 1A
PoE: 3.65~6.64W
Working Temperature: -10~50°C
Storage Temperature: -40~80°C
Working Humidity: 10~90%
Size (L × W × H): 177.38 × 113.99 × 22.5mm
Installation: Wall-Mounted
FUNCTIONAL CAPABILITIES
Supported Protocols: SIP 2.0 over UDP/TCP/TLS
Audio:
Narrowband Codec: G.711A/U, G.723.1, G.726-16 / 24 / 32 /40, G.729AB, iLBC
Broadband Codec: G.722, OPUS
Full-Duplex Hands-Free Calling, Supports Acoustic Echo Cancellation (AEC)
Video:
Hardware Decoding: H.264, H.265 (Optional)
Video Call Resolutions: QVGA / CIF / VGA / 4CIF / 720p / 1080p
DTMF:
In-Band
Out-of-Band DTMF (RFC2833)
SIP Info
Do Not Disturb (DND): Supported and the Time Can Be User-Defined
Supports:
Viewing Video from Third-Party IP Cameras
Customising Incoming Call Ringtones
Remote Door Unlocking
Sending/Receiving Messages
FANVIL I60 SPECIFICATIONS
Keyboard: 1× Speed-Dial Button
Body: ABS and PC
Colours:
Panel: Black
Housing: Gunmetal
Sensor: 1/2.9", CMOS
Camera: 2MP, Supports Infrared
Viewing Angle: 140° (FOV), 100° (Horizontal), 57° (Vertical)
Output Video: H.264 (Baseline, Main Profile)
Light Sensitivity: 0.1 Lux
Card Storage: 1,0000
Power Consumption:
PoE: 1.63~6.93W
Adapter: 1.51~6.16W
Power Supply:
DC12V 1A
PoE 802.3af Class 3
Working Temperature: -40~70°C
Storage Temperature: -40~70°C
Dimensions: 50 × 130 × 30mm
IP Level: IP65
Installation:
Wall-Mounted
Rain Cover
FUNCTIONAL CAPABILITIES
Supported: SIP 2.0 over UDP/TCP/TLS
Lock Opening:
IC Card
By DTMF Code
Remote Door Opening
BLE
Interface:
Wiegand Input / Output
Short-Circuit Input / Output
Supported Wiegand: 26, 34bit
Supported ONVIF: Profile S
Supported Standards:
IC Card
DTMF
Indoor Switch
BLE Cards 13.56 MHz
Talking Mode: Full-Duplex (High-Definition Audio)
Supports:
Built-In Relay
Motion Detection
Tamper Alarm
TF Card
Open API
