FEATURES

Plug and play, quickly deployment
Flexible door access methods
Monitor door phone camera footage on both mobile and indoor station
Remote door opening anytime, anywhere
Supports one-touch calling
CCTV integration

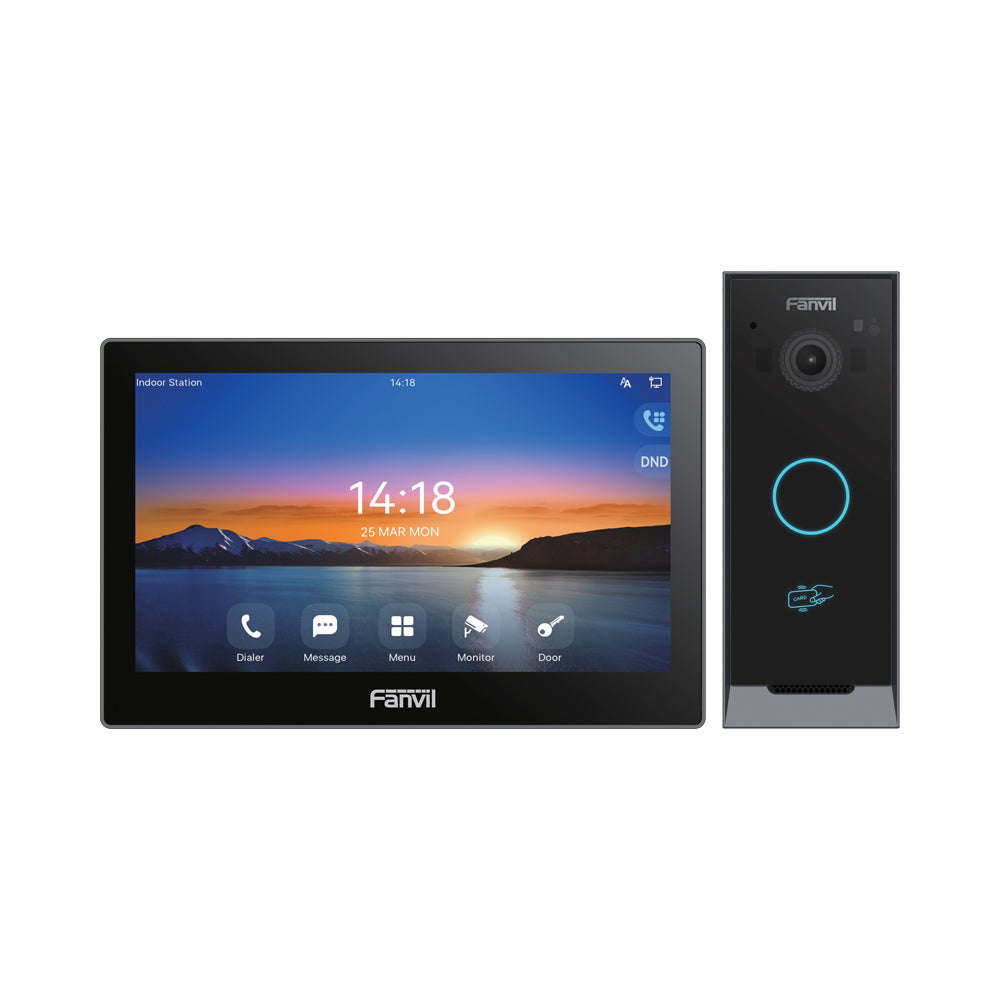

FANVIL I504W SPECIFICATIONS

Screen: 7" 1024×600 Colour Capacitive Touch Screen
Body: ABS
Speaker: 2W
Wi-Fi: 2.4GHz/5.0GHz
Interface: 8× Alarm Input, 1× Short -Circuit Output, 1× Doorbell input, 1× RS485 (Reserved)
Network: 10/100Mbps Adaptive
Power Supply:
DC12V 1A
PoE: 3.65~6.64W
Working Temperature: -10~50°C
Storage Temperature: -40~80°C
Working Humidity: 10~90%
Size (L × W × H): 177.38 × 113.99 × 22.5mm
Installation: Wall-Mounted

FUNCTIONAL CAPABILITIES
Supported Protocols: SIP 2.0 over UDP/TCP/TLS
Audio:
Narrowband Codec: G.711A/U, G.723.1, G.726-16 / 24 / 32 /40, G.729AB, iLBC
Broadband Codec: G.722, OPUS
Full-Duplex Hands-Free Calling, Supports Acoustic Echo Cancellation (AEC)
Video:
Hardware Decoding: H.264, H.265 (Optional)
Video Call Resolutions: QVGA / CIF / VGA / 4CIF / 720p / 1080p
DTMF:
In-Band
Out-of-Band DTMF (RFC2833)
SIP Info
Do Not Disturb (DND): Supported and the Time Can Be User-Defined
Supports:
Viewing Video from Third-Party IP Cameras
Customising Incoming Call Ringtones
Remote Door Unlocking
Sending/Receiving Messages

FANVIL I60 SPECIFICATIONS

Keyboard: 1× Speed-Dial Button
Body: ABS and PC
Colours:
Panel: Black
Housing: Gunmetal
Sensor: 1/2.9", CMOS
Camera: 2MP, Supports Infrared
Viewing Angle: 140° (FOV), 100° (Horizontal), 57° (Vertical)
Output Video: H.264 (Baseline, Main Profile)
Light Sensitivity: 0.1 Lux
Card Storage: 1,0000
Power Consumption:
PoE: 1.63~6.93W
Adapter: 1.51~6.16W
Power Supply:
DC12V 1A
PoE 802.3af Class 3
Working Temperature: -40~70°C
Storage Temperature: -40~70°C
Dimensions: 50 × 130 × 30mm
IP Level: IP65
Installation:
Wall-Mounted
Rain Cover

FUNCTIONAL CAPABILITIES

Supported: SIP 2.0 over UDP/TCP/TLS
Lock Opening:
IC Card
By DTMF Code
Remote Door Opening
BLE
Interface:
Wiegand Input / Output
Short-Circuit Input / Output
Supported Wiegand: 26, 34bit
Supported ONVIF: Profile S
Supported Standards:
IC Card
DTMF
Indoor Switch
BLE Cards 13.56 MHz
Talking Mode: Full-Duplex (High-Definition Audio)
Supports:
Built-In Relay
Motion Detection
Tamper Alarm
TF Card
Open API
