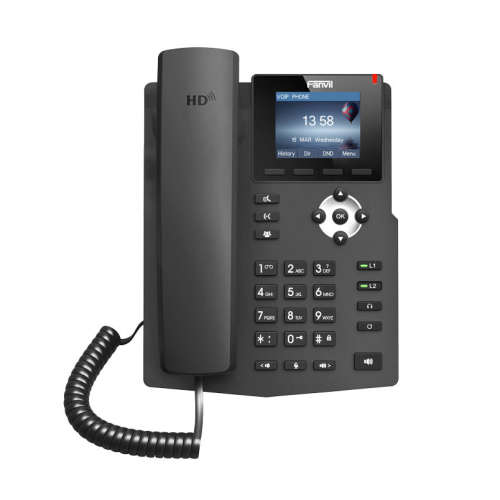

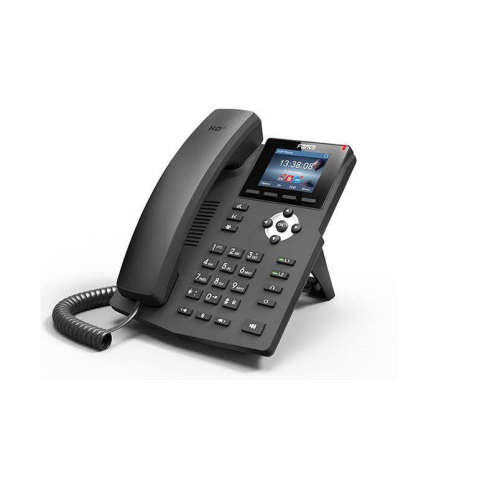

Fanvil's new X3SP take entry-level IP phones to a level never achieved before.
Making full-use of high-quality materials, plus an extra-large 320x240 2.4 inch (X3G: 2.8 inch) color LCD, it offers a smoother user experience, much more visual information at a glance, plus HD Voice characteristics.
Dual 10/100 Mbps network ports with integrated PoE are ideal for extended network use.
The X3S series supports two VoIP accounts, simple, flexible and secure installation options, Open VPN. It also operates with SRTP/ HTTPS/ TLS, 802.1x. As a very cost-effective and powerful IP solution, the X3SP maximizes productivity in both small and large office environments.
Fanvil's X3S IP Phone is an industrial masterpiece offers superior user experience and simplicity for home and office users with elegant appearance and intelligent software. X3S is positioning to be not only a telephone siting on a user's desktop for communication, but also a nice artwork in your living room or office.
Highlights:
- The finest artwork in IP telephone industry
- Economical and intelligent product concepts
- Easy installation and configuration
- Smart and friendly user interface
- Secure and complete provisioning protocols
- High Interoperability - Compatible with major platforms: 3CX, Asterisk, Broadsoft, Elastix, Zycoo, etc.
Generic:
- 2 SIP Lines
- HD Voice
- POE Enabled (X3SP, X3G)
- Handset / Hands-free / Headset mode
- Desktop / Wall-mount installation
- Optional External Power Supply (X3SP and X3G Optional)
Call Features:
- Call out / Answer / Reject
- Mute / Unmute (microphone)
- Call Hold / Resume
- Call Waiting
- Intercom
- Caller ID Display
- Speed Dial
- Anonymous Call (Hide Caller ID)
- Call Forwarding (Always/Busy/No Answer)
- Call Transfer (Attended/Unattended)
- Call Parking/Pick-up (depending on server)
- Redial/Auto-Redial
- Do-Not-Disturb
- Auto-Answering
- Voice Message (on server)
- 3-way Conference
- Hot Line
- Hot desking
Networking:
- Physical: 10/100Mbps (X3S/X3SP)
- IP Configuration: Static / DHCP / PPPoE
- Network Access Control: 802.1x
- VPN: L2TP / OpenVPN
- VLAN
- LLDP
- QoS
- RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
Protocols:
- SIP2.0 over UDP/TCP/TLS
- RTP/RTCP/SRTP
- STUN
- DHCP
- PPPoE
- LLDP
- 802.1x
- L2TP
- OpenVPN
- SNTP
- FTP/TFTP
- HTTP/HTTPS
- TR-069
Deployment & Maintenance:
- Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PnP/TR-069
- Web Management Portal
- Web-based Packet Dump
- Configuration Export / Import
Phone Features:
- Local Phonebook (500 entries)
- Remote Phonebook (XML/LDAP, 500 entries)
- Call logs ( in/out/missed, 600 entries)
- Black/White List Call Filtering
- Screen saver
- Voice Message Waiting Indication (VMWI)
- Programmable DSS/Soft keys
- Network Time Synchronization
- Support Plantronics wireless headset (Through Plantronics APD-80 EHS Cable)
- Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
- Support Recording (Through Server Recording)
- Action URL / Active URI
- uaCSTA
Audio:
- HD Voice Microphone/Speaker (Handset/Hands-free, 0~7KHz Frequency Response)
- Wideband ADC/DAC16KHz Sampling
- Narrowband CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB
- Wideband CODEC: G.722
- Full-duplex Acoustic Echo Canceller (AEC)
- Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)
- Packet Loss Concealment (PLC)
- Dynamic Adaptive Jitter Buffer up to 300ms
- DTMF: In-band, Out-of-Band - DTMF-Relay(RFC2833) / SIP INFO
- Phonebook Import/Export
- Firmware Upgrade
- Syslog
Physical Specifications:
- LCD x1: 2.4 or 2.8 inch (320x240) color-screen LCD
Keypad: 32 keys, including:
- 4 Soft-keys
- 5 Function keys(Hold, Call forward, Conference, Headset, Redial)
- 4 Navigation keys
- 1 OK key
- 2 Line keys with tri-color LED
- 12 Standard Phone Digits keys
- 3 Volume Control keys, Up/Down/Mute(Microphone)
- 1 Hands-free
HD Handset (RJ9) x1Standard RJ9 Handset Wire x11.5M CAT5 Ethernet Cable x1Back Rack x1RJ9 Port x2: Handset x1, Headset x1RJ45 Port x2: Network x1, PC x1 (Bridged to Network)DC Power Input: 5V/600mA(X3S and X3SP), 5V/1A(X3G)Power Consumption (X3S/P): Idle 1~1.3W, Peak 1.6~2.2WPower Consumption (X3G): Idle - 2.1~2.8W, Peak - 2.7~4.1WWorking Temperature: 0~40Working Humidity: 10~95%Installation: Desktop Stand or Wall-mountColor: Black
Device Dimensions:
- Desktop Stand: 159x173.3x170.4mm
- Wall-mount: 159x85.4x214.2mm
- Gift Box Dimensions: 275x215x62mm
What's in the box
1 x X3SP Phone
1 x Handset
1 x RJ9 Cable
1 x RJ45 Cable
