Fanvil X5U Enterprise IP Phone with 3.5" Main Colour Screen and 2.4" Extended Colour Screen
Professional Communication. Smarter Control.
The Fanvil X5U Enterprise IP Phone delivers a powerful dual-screen design with a 3.5-inch colour display and DSS screen for enhanced productivity. Supporting up to 16× SIP lines, it enables efficient call handling and streamlined business communication. HD voice quality and 6-way audio conferencing ensure clear, professional conversations at all times. Dual Gigabit ports with PoE provide fast, reliable connectivity with Bluetooth and optional Wi-Fi for flexibility. Programmable DSS keys, EHS headset support and an adjustable stand make it ideal for modern office environments.
FEATURES
Dual-Screen Design - 3.5-inch main colour display with 2.4-inch DSS screen for enhanced control
16× SIP Lines - Supports high call capacity for enterprise environments
HD Voice Quality - Crystal-clear audio on handset and speakerphone
6-Way Audio Conference - Efficient multi-party communication
Dual Gigabit Ports with PoE - High-speed connectivity and simplified deployment
Built-in Bluetooth 4.2 - Supports Bluetooth headsets and Wi-Fi dongle connectivity
EHS Headset Support - Compatible with wireless headsets for hands-free operation
SPECIFICATIONS
PHONE FUNCTIONS
Phonebook: Local (2,000 Entries), Remote XML/LDAP (2,000 Entries)
Call Logs: 1,000 Entries (Incoming/Outgoing/Missed)
DSS-Keys: Programmable with Multi-Page Support (up to 30× DSS-Keys)
Bluetooth 4.2: Supports Headsets and Mobile Device Pairing
Wi-Fi Support: via Optional USB Dongle
USB Port: Supports Call Recording and Storage
CALL FUNCTIONS
Call Handling: Call Out, Answer, Reject, Hold, Resume
Call Forwarding: Always, Busy, No Answer
Call Transfer: Attended and Unattended
Conferencing: 6-Way Audio Conference
DND: Do-Not-Disturb with Scheduling
Speed Dial & Redial: Quick Call Access Features
AUDIO
HD Voice: Handset and Speakerphone
Wideband Codecs: G.722, Opus
Narrowband Codecs: G.711a/u, G.729, G.726, iLBC
Echo Cancellation: Full-Duplex AEC
Noise Processing: VAD, CNG, NR, AGC
Jitter Buffer: Dynamic Adaptive
NETWORK
Interfaces: Dual 10/100/1000Mbps RJ45 Ports (Bridged PC Port)
IP Mode: IPv4 / IPv6 / Dual Stack
VLAN & QoS: 802.1p/Q, Traffic Prioritisation
VPN: L2TP, OpenVPN
Network Access Control: IEEE 802.1x
PROTOCOLS
SIP: SIP v1 (RFC2543), SIP v2 (RFC3261)
Transport: UDP, TCP, TLS
Media: RTP, RTCP, SRTP
Provisioning: DHCP, FTP, TFTP, HTTP, HTTPS
Time Sync: SNTP
DEPLOYMENT & MANAGEMENT
Auto-Provisioning: FTP/TFTP/HTTP/HTTPS/DHCP/TR-069/SIP PnP
Management: Web Interface, Syslog, Packet Capture
Configuration: Import/Export, Firmware Upgrade
Security: HTTPS, AES128/256 Encryption
Remote Management: TR-069 Support
PHYSICAL
Display: 3.5" Main Screen (480 × 320), 2.4" DSS Screen (240 × 320)
Keypad: 42-Keys Including DSS, Line and Function Keys

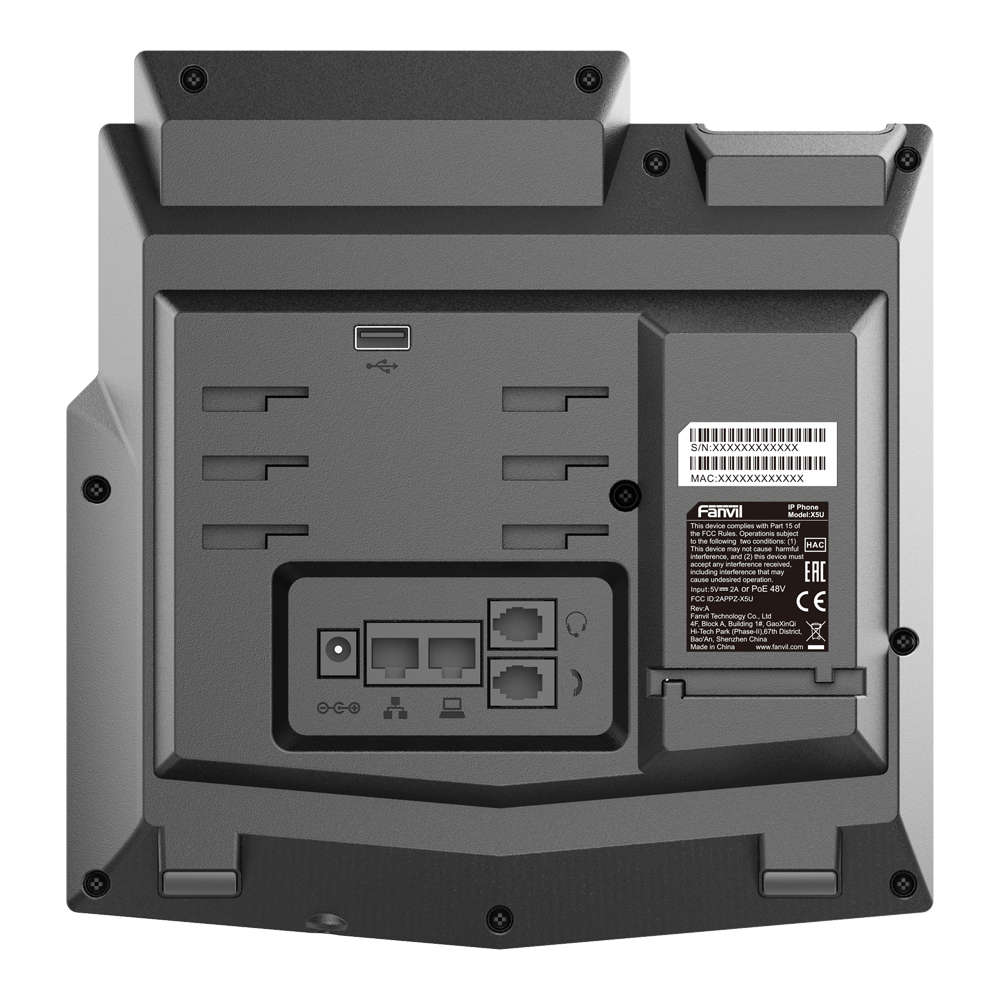

Ports: 2× RJ45, 2× RJ9, 1× USB2.0, 1× DC Power
Power: DC 5V 2A or PoE (IEEE 802.3af)
Installation: Desktop Stand (45° / 50°) or Wall-Mount (Optional Extra)
Operating Temperature: 0~45°C
