FBT - DLM-260 DIGITAL SPEAKER MANAGEMENT SYSTEM

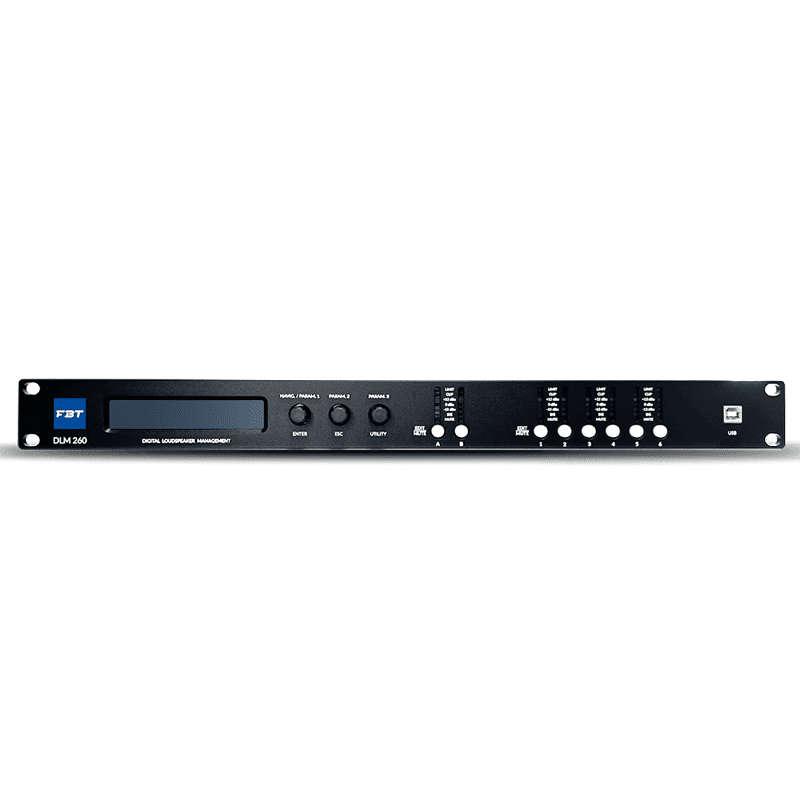

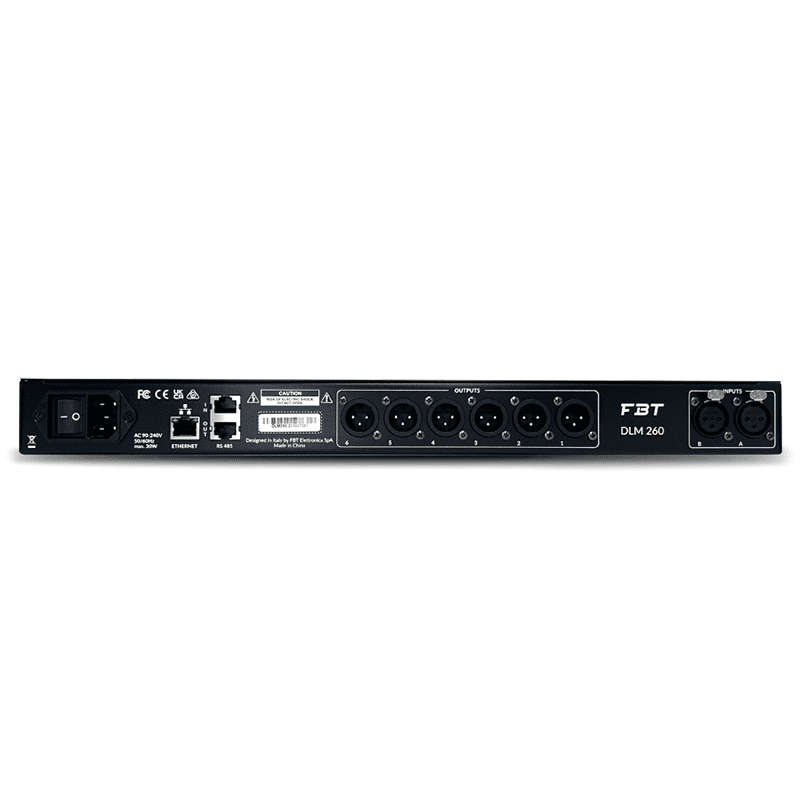

The DLM 260 is a DSP based 2 inputs x6 output digital loudspeaker management processor, ideally suited for fixed installation and live events. The front panel control with LCD display offers users an intuitive interface designed for ease of use and efficiency. The menu system allows for seamless navigation through various settings and options, providing users with a user-friendly experience. When it comes to networking options for DLM 260, users can choose between Ethernet or RS 485 for larger systems. It combines the functions of many conventional products in a compact 1 U unit with extensive PC remote control capabilities. Routing is freely assignable from the two inputs to the six outputs. Input-output equalization is available with a choice of 16 filter options.

Input Impedance : 20K Ohm balanced

Output Impedance : 100 Ohm

Max. Input Level: +20dBu

Max. Output Level: +18dBu

Crosstalk : < -95dB

Sample Rate : 48kHz

Signal to Noise Ratio: > 116dB (A weighted)

Noise Floor : < -95dB (A weighted)

Common Mode Rejection Ratio: 60dB

Frequency Response : 20Hz - 20kHz +0.3dB

THD (+4dBu 1kHz) : < 0.003%

Mains Voltage Range: 90 - 240Vac / 50-60Hz

Nominal Power Consumption : 30W
