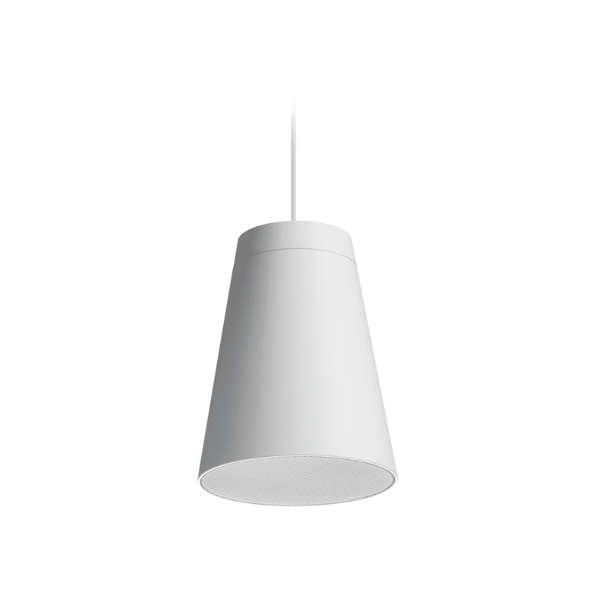

FBT – LIBRA5CTW 5in PASSIVE CONICAL SPEAKER 120W RMS WHITE 100V

The LIBRA 5CT is a 2-way pendant loudspeaker featuring a coaxial mono-magnet transducer with a 5'' LF woofer and 1'' HF dome tweeter. The particular designed LF cone profile function as a waveguide for the tweeter delivering high sensitivity and consistent high-performance audio coverage as well as excellent off-axis performance.

The LIBRA 5CT incorporates a six-position selectable tap switch for 70 V and 100 V from 3.5 to 60W as well as an LoZ 16Ohm position.

Ported high-quality polypropylene enclosure delivers an effective low-frequency response to 80Hz. The rear cover of the speaker can be placed after installation and hides the connection and suspension on the speaker end. The ceiling end connections are covered through a cable cover.

Like air, like sound

In nature, the sound spreads effortlessly in all directions, whereas in standard speakers its propagation offers a narrow angle. Inspired by this and the various architectural needs, we chose to design a family of loudspeakers that could reproduce the same natural sound feeling, combining the classic modern aesthetic with performance.

SPECIFICATIONS:

• Speaker type: 2-way coaxial
• Recommended amplifier: 120W RMS
• Long-term power: 60 W
• Short-term power: 240 W
• Nominal impedance: 16 Ohm
• Frequency response: 80Hz - 20KHz, -6dB
• Woofer: 5" - 1.5" voice coil
• Tweeter: 1" - 1" coil
• Max. SPL CONT/PEAK: 114 / 117 dB
• Sensitivity (@1W/1M): 93dB
• Dispersion: 90° HxV
• Crossover frequency: 3 kHz
• Recommended HP filter: 70 Hz - 24 dboct
• Recommended external filter: Digital management with presents
• Input connector: Euroblock in & thru
• Net dimensions (WxH): bottom diameter 215 x height 275 mm
• Net weight: 3.9 kg

FEATURES:

• Nominal Impedance: 16
• Sensitivity: 93dB
• Recommended Amplifier: 120W RMS
• Power (Continuous): 60W
• Power Selector: 3.5W - 60W
• Recommended High-Pass Filter: 70Hz, 24dB/oct
• Recommended External Filter: FBT DSP Processor
• Available designs: black, white
