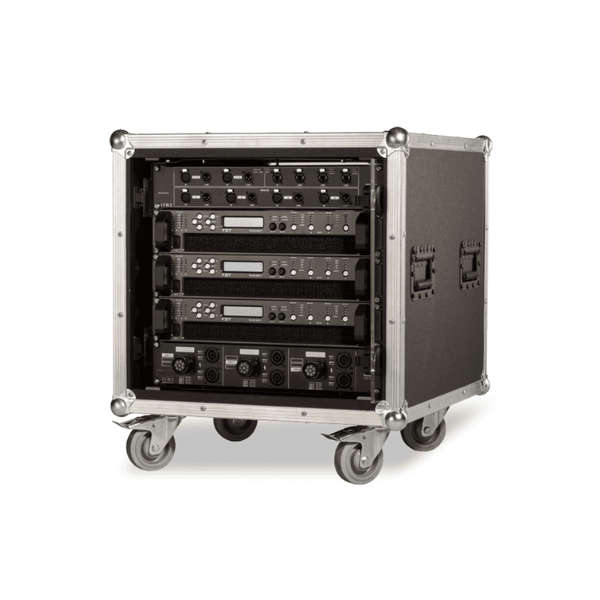

FBT – MYRA MYRACK PREBUILT AMPLIFIER FOR MYRA

MYRACK is our new, powerful rack. We have designed and built it to professional touring industry standards and have taken great care to ensure that it's rugged enough to handle whatever comes your way. As an acoustic engineer or technician, MYRACK will ensure that you have all the tools necessary for a successful event every time, as it gives you more power and control over all of your gear.

Designed as a closed system rack, MYRACK provides mains power distribution and connector interface for 3 x TALOS 20K4T amplifiers each.

This Touring rack is equipped with a mains power distribution device, which also serves as a loudspeaker connector panel. Also incorporated is an I/O panel which serves as a connector interface for both analog and digital audio signals as well as four network connectors for Ethernet remote capabilities.

Designed for workgroups and departments a Managed Switch with 24 RJ 45 ports that provides wire-speed performance is included.

SPECIFICATIONS:

• Both channel driven 8 ohm 1% thd continous/impulsive: 3000w
• Both channel driven 4 ohm 1% thd continous/impulsive: 1500w
• Bridge 8ohm 1% thd: 6000w
• Input impedance: 20k ohm
• Signal to noise ratio s/n: >113db (a-weighted)
• Total harmonic dist. (1khz-4ohm) : <0.05%
• Frequency response: 5hz - 20khz (-0.5db , 3db below rated power)
• Damping factor: >500
• Class: class d - pwm modulator with ultra low distortion
• Maximum power consuption: 6000w
• Power supply voltage: universal main voltage 100 - 240 vac @ 50/60hz
• Protections: short circuit, over temperature, over/under voltage, overload
• Connectors: neutrik xlr input, neutrik speakon output, neutrik 32a powercon mains
• Net dimensions (wxhxd) : 652x558x675mm

FEATURES:

• 8 x MYRA 214L Full range variable curvature 3-way line
• 4 x MYRA 218S Dual 18" subwoofer modules
• 1 x MR-F214 Array frame
• 2 x MR-T214 Chariot for 8 MYRA 214L
• 2 x MR-T218 Chariot for transport of 2 MYRA 218S
• 1 x MYRACK Touring rack 10U
• 6 x Loudspeaker cables 4 poles with Neutrik speakon connectors
• 3 x Adaptor CA-COM to Neutrik Speakon
• 3 x Speaker cable CA-COM male - female
