FBT - STAGEMAXX12MA ACTIVE STAGE MONITOR 12in 400W + 100W RMS

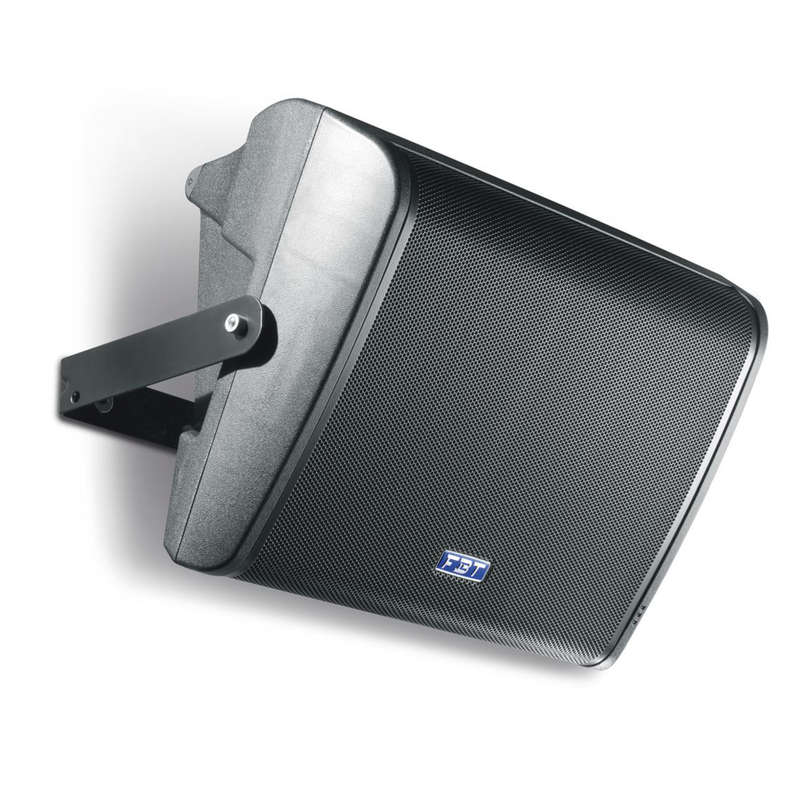

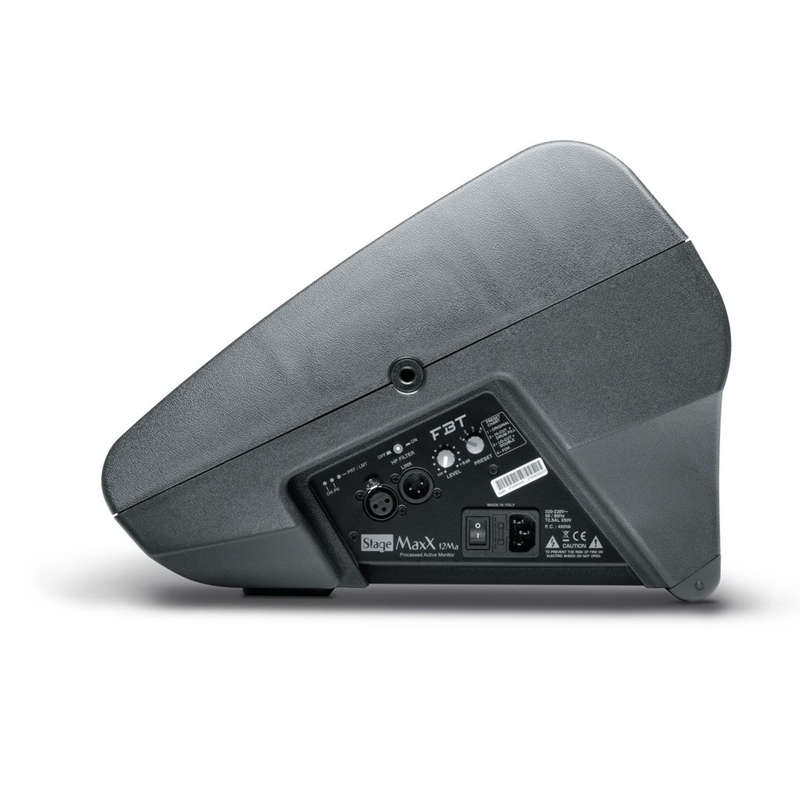

The StageMaxX processed active reinforcement monitor features sturdy gas-injected polypropylene construction cabinet with 12" B&C loudspeaker custom made for FBT and coaxially mounted with a B&C 1" exit throat compression driver. The internal Class D amplification, 400W + 100W RMS, and the digital signal processor with 4 factory equalization presets provides unexpected dynamics in the system; the FOH preset allows the use in suspended installation through two M10 rigging points and wall mounting bracket. The StageMaxX has 35° or 55° tilted front panel for an optimal listening distance for single user (35°) or for more users (55°). The control panel features: XLR/Jack input and XLR link out, Volume, Preset, HP Filter. With a frequency range from 60Hz to 20kHz the StageMaxX provides hi fidelity sound for both speech and music applications with a maximum SPLof 130dB. The coaxial configuration allows perfect alignment of the acoustic centers of the transducers. Aheavy duty perforated steel grille provides protection for the coaxial speaker. Three ergonomic integrated carrying handles providing easy transportability.

Configuration: 2 way

Built-in amplifier LF/HF: 400/100 W RMS

Built-in amplifier peak LF/HF: 800/200 W

Frequency response: 60Hz - 20kHz -6dB

Low Frequency woofer: 300 - bobina 64 inch

High Frequency driver: 25,4 - bobina 44 inch

Maximum SPL cont/peak: 124 / 130 dB

Dispersion: 90° HxV

Input impedance: 22 Kohm

Crossover Frequency: 1,8 KHz

AC Power requirements: 450 VA

Input connector: XLR con loop

Power cord: 5 m

Net Dimension (WxHxD) : 550 x 289 x 392 mm

Net Weight: 13,6 kg

Transport Dimension (WxHxD) : 670 x 430 x 500 mm

Transport Weight: 16,4 kg
