DESCRIPTION:

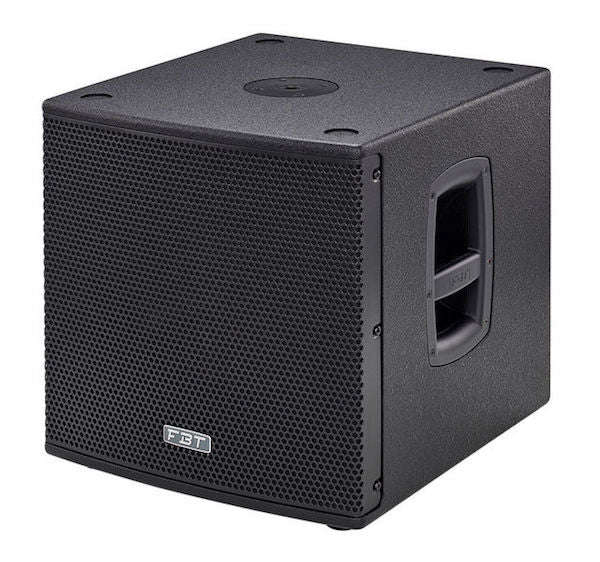

The FBT SUBLINE 112SA is an extremely compact bass-reflex design subwoofer with high SPL and punch. The FBT SUBLINE 112SA feature 0,59 birch plywood construction covered in a scratch resistant black paint with two aluminum carrying handles; an M20 top mounted stand adapter allows satellite speakers, such as the FBT speaker series and others, to placed above the subwoofer cab. The FBT SUBLINE 112SA features a 12in high excursion magnet woofer with 3in voice coil. The 112SA provides an FBT's new Digital Signal Processor with 8 presets, 2 equalization with 2 LPF crossover settings, cardioid configuration. The FBT SUBLINE 112SA shall meet the following performance criteria: frequency response of 40Hz to 140Hz, max. SPL of 133dB peak, 700W RMS Class D power amplifier with switch mode power supply. The control panel features stereo XLR in/outs, livello, EQ presets, 8 steps delay, phase reversal switch, 3 status led indicators.
SPECIFICATIONS:
- Built-in amplifier LF/HF: 700w
- Built-in amplifier peak LF/HF: 1400w
- Frequency response: 40Hz - 140Hz
- Low Frequency woofer: 12in (3in VC)
- Maximum SPL cont/peak: 130/133dB SPL
- Dispersion: Omnidirectional
- Input connector: Stereo XLR In/Out (High Pass/Link Out)
- Power cord: 5m IEC
- Net Dimension (WxHxD): 430 x 447 x 480mm
- Net Weight: 23 kg
- Transport Dimension (WxHxD): 530 x 547 x 580mm
- Transport Weight: 27 kg
FEATURES:
- Bass-reflex design with high SPL and punch
- 320mm (12") high excursion magnet woofer with 75mm (3") voice coil
- Frequency response from 40Hz to 140Hz
- New amplifier engineered and manufactured by FBT, 700W RMS LF in Class D
- Digital Signal processor with 8 presets, 2 equalization with 2 LPF Crossover settings, cardioid configuration
- Control panel with Stereo XLR in/outs, Volume, EQ presets, 8 steps Delay from 0.25m to 3.5m, Phase Reversal Switch 0°-180°, 3 status LED indicators
- 15 mm (0.59") birch plywood scratch resistant enclosure with internal bracing
- M20 (20mm) top mount speaker stand socket and two aluminum ergonomic FBT handles
