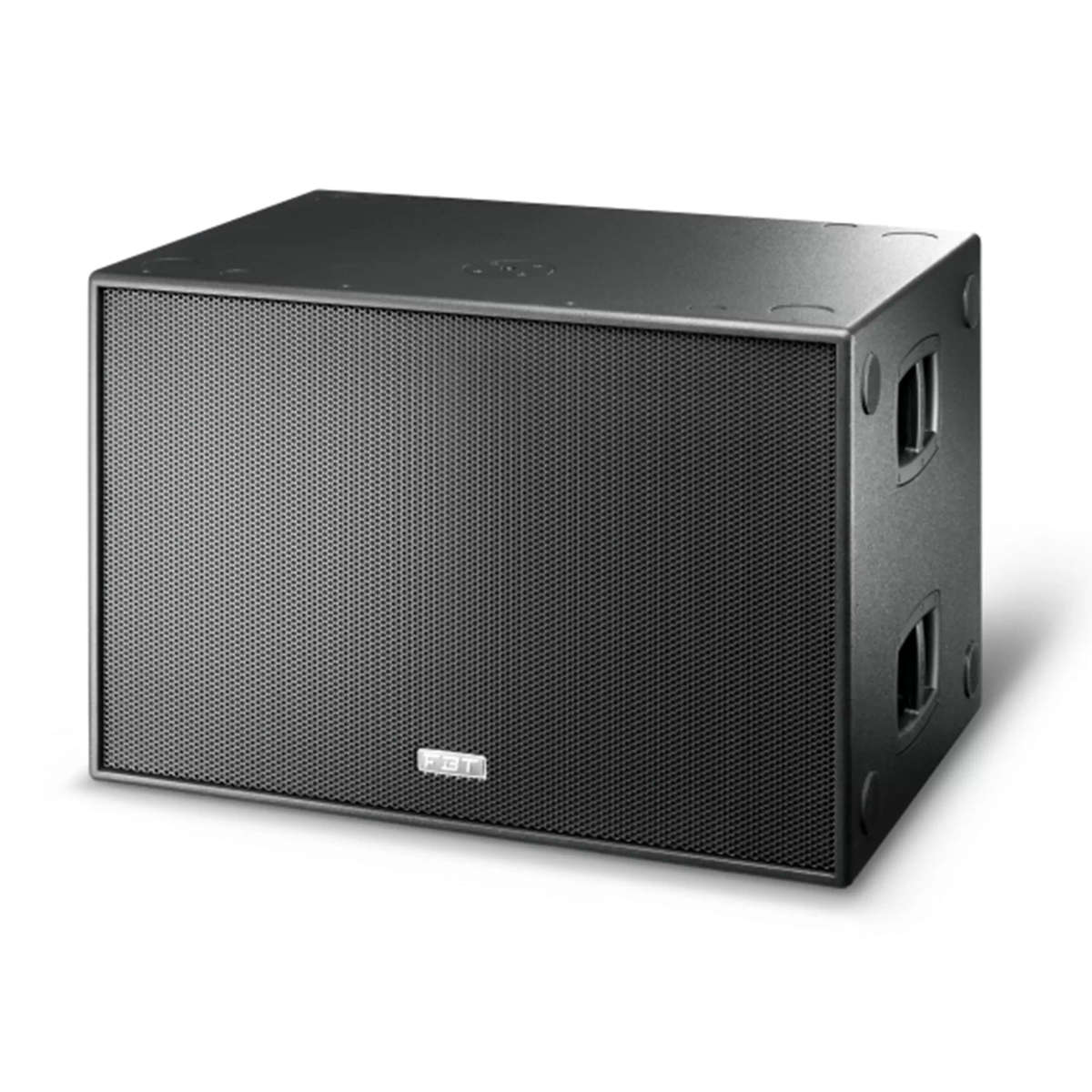

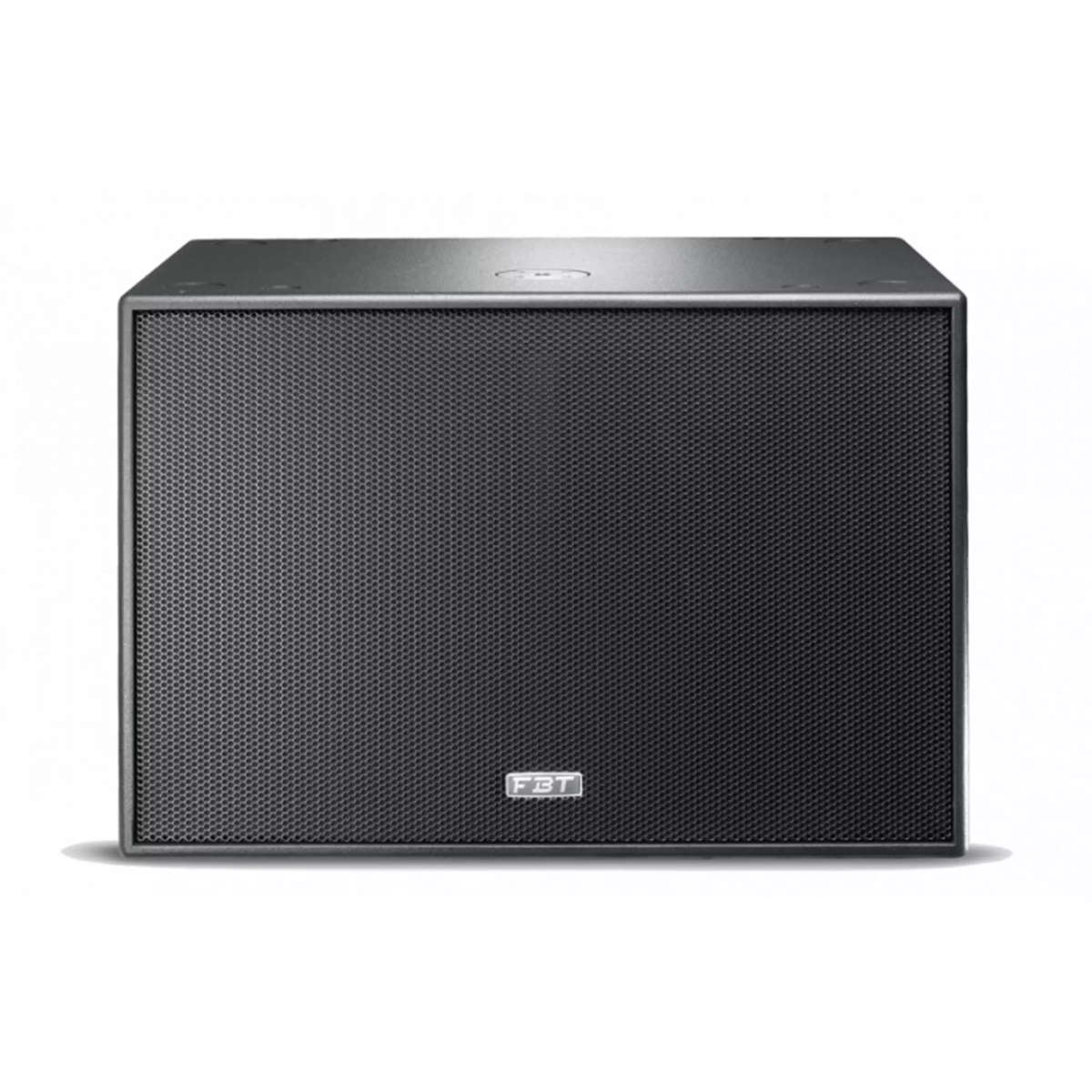

FBT - SUBLINE218SA ACTIVE SUB 2x 18in 1200W

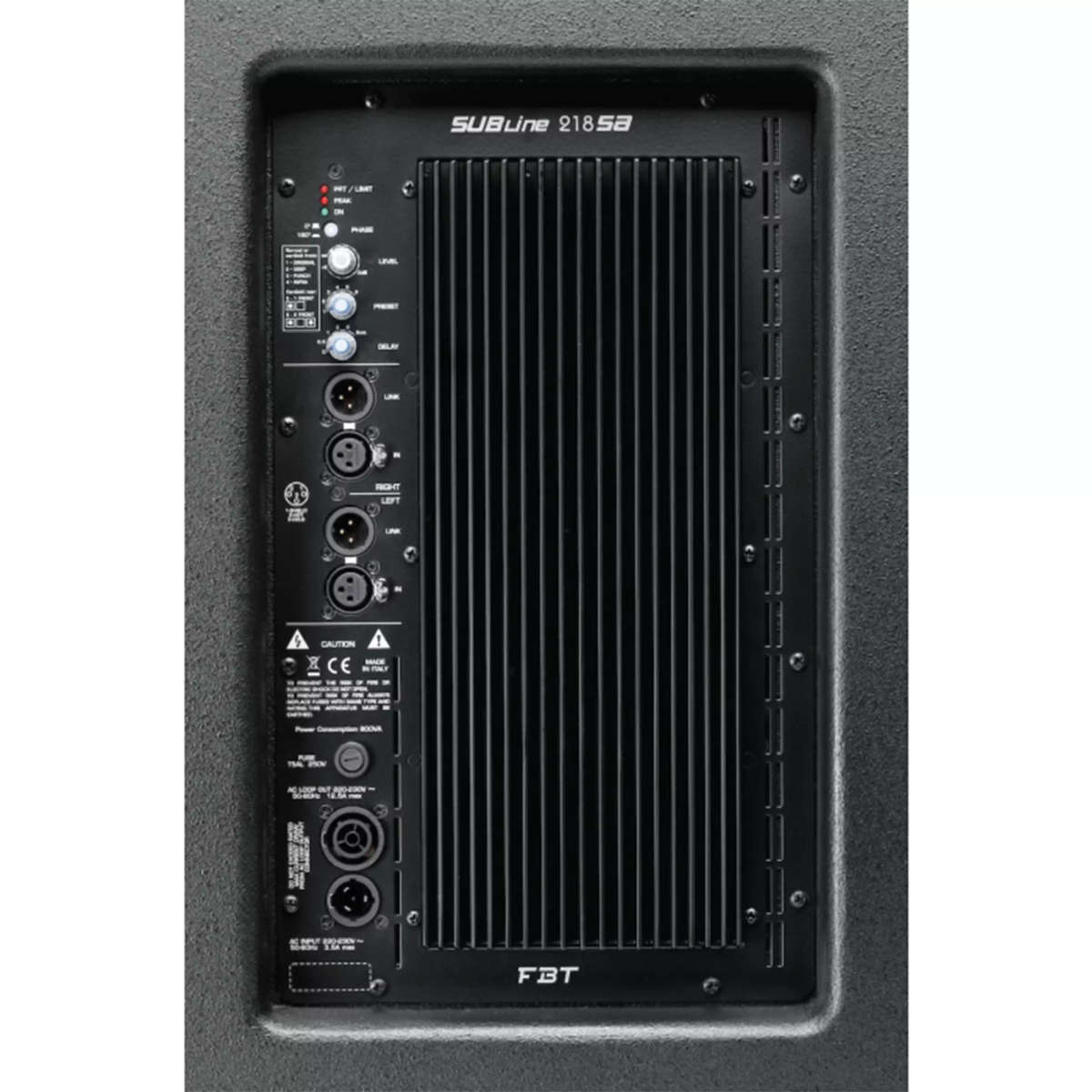

The FBT SUBLINE 218SA, 2 x 18" bass reflex design subwoofer, is the perfect low-frequency extension and the ideal companion for the FBT MUSE 210LAline array or ground stack applications with optional metal base. The FBT SUBLINE 218SAshall meet the following performance criteria: Frequency response of 30Hz to 120Hz, Maximum SPLof 140dB peak,Class D amplifier 1200W RMS. The FBTSUBLINE 218SAprovides a DSP with 6 presets-cardioid and infra configurations. The FBTSUBLINE 218SA feature 0.70" Baltic birch plywood construction covered in a scratch resistant black paint with 2 x M20 top-mounted stand adapter and four FBT design aluminium handles. The control panel provides stereo XLR in &out, volume control, preset, delay, phase 0°-180°, 3 status led indicators.

FEATURES:

• Bass-reflex design Subwoofer
• 2 x 460mm (18") high excursion woofer with 75mm (3") voice coil, custom made for FBT by B&C
• Frequency response from 30Hz to 120Hz
• 1200W RMS Class D power amplifier with switch mode power supply
• DSP with 6 presets, 3 x EQ with 2 x LPF crossover settings, 6-step digital delay line
• Control panel with stereo XLR in/out, Volume. EQ presets, Delay, Phase reversal switch 0°-180°, 3 status LED indicators
• 18mm Baltic birch plywood enclosure with heavy duty coating
• 2 x M20 threads for stand pole mount and 4 x aluminum ergonomic FBT handles, optional wheels
• Provides additional low frequency extension when used along with MUSE 210LA active line array system
• MSA220BK TELESCOPIC SPEAKER POLE WITH M20 THREAD (393.300FB)

SPECIFICATIONS:

• Configuration: 1 way
• Built-in amplifier LF/HF: 1200 W RMS
• Built-in amplifier peak LF/HF: 2400 W
• Frequency response: 30Hz - 120Hz -6dB
• Low Frequency woofer: 2 x 460 - bobina 75 inch
• Maximum SPL cont/peak: 136 / 140 dB
• Dispersion: omnidirezionale HxV
• Input impedance: 22 Kohm
• AC Power requirements: 1000 VA
• Input connector: XLR con loop
• Power cord: 5 m
• Net Dimension (WxHxD): 970 x 661 x 670 mm
• Net Weight: 81 kg
• Transport Dimension (WxHxD): 1150 x 780 x 800 mm
• Transport Weight: 94 Kg
