Comprising four versatile loudspeaker enclosures for either portable use or fixed installation, FBT is debuting the VENTIS range at Pro Light + Sound 2016. Available in either passive or bi-amplified versions, each of the models — the VENTIS 115, 112, 110, and 206 — has been designed to meet the highest standards in both performance and aesthetic appeal.
For the VENTIS range, quality and flexibility are the watchwords. Based on a powerful combination of B&C compression drivers and FBT's own custom, long excursion woofers, the 115, 112 and 110 models are two-way, bass reflex designs housed in 15mm birch plywood. A full-grille design backed by specially treated acoustic cloth delivers the characteristic style for which FBT is known, while fully rotatable constant directivity horns ensure accurate coverage.

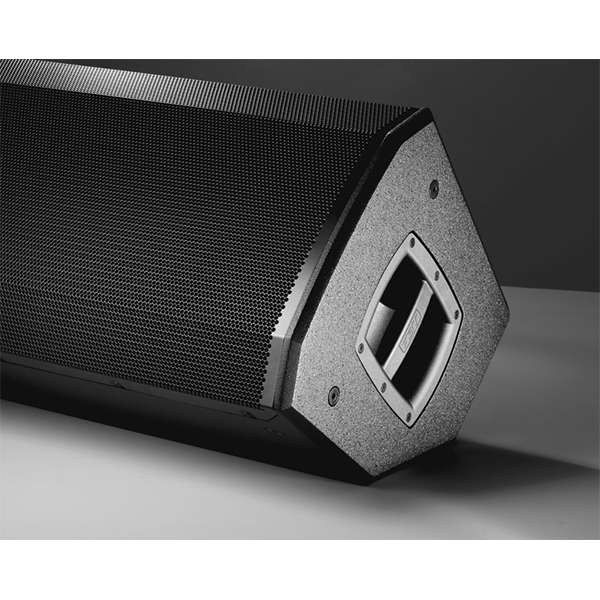

The three enclosures are as suitable for fixed installation as they are for use on the stage. M10 points are included as standard while an optional U-bracket can be used for wall-mounting. For use on the road, the VENTIS models include aluminum handles with rubber inserts, a 35mm polemount socket, and a 45° sloped profile for unobtrusive placement on-stage as a monitor.
Meanwhile the multi-purpose VENTIS 206 can be deployed as a front fill, an under-balcony fill, as a main providing pristine speech intelligibility or simply as the full-range companion of a subwoofer. Constructed in 12mm birch plywood, the 206 has an integrated rear handle, an optional mounting bracket and, most importantly, an astonishing size to SPL ratio.
Configuration: 2 way
Built-in amplifier LF/HF: 700/200 W RMS
Built-in amplifier peak LF/HF: 1400/400 W
Frequency response: 42Hz - 20KHz -6dB
Low Frequency woofer: 15 - 2.5 coil inch
High Frequency driver: 1 - 1.7 coil inch
Maximum SPL cont/peak: 127/133 dB
Dispersion: 80° x 50° rotatable HxV
Input impedance: 22 Kohm
AC Power requirements: 640 VA

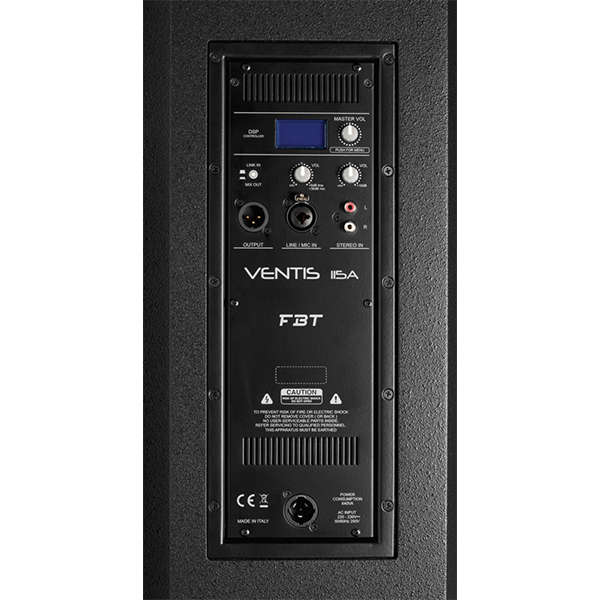

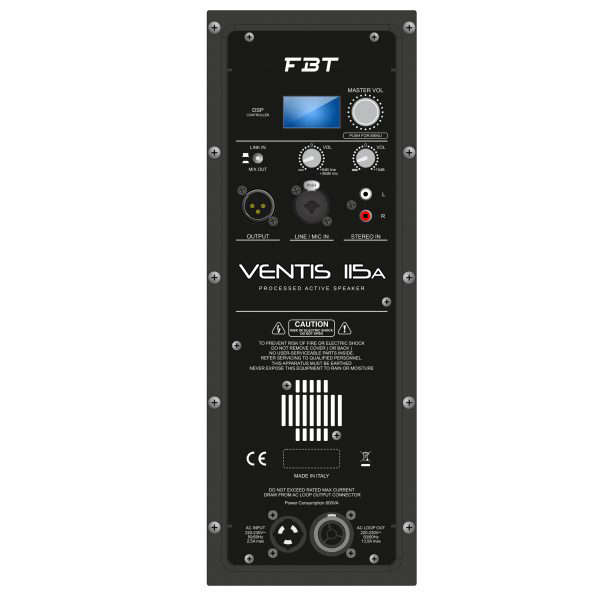

Input connector: XLR with loop, RCA ST
Power cord: 5 m
Net Dimension (WxHxD) : 427x765x420 mm
Net Weight: 25 Kg
Transport Dimension (WxHxD) : 600x865x520 mm
Transport Weight: 29 Kg
