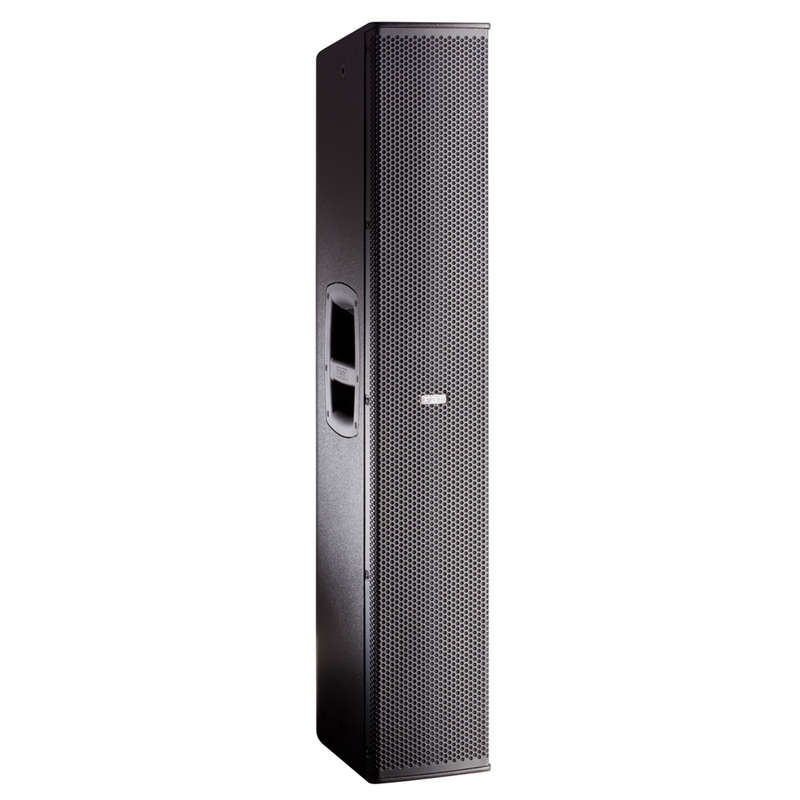

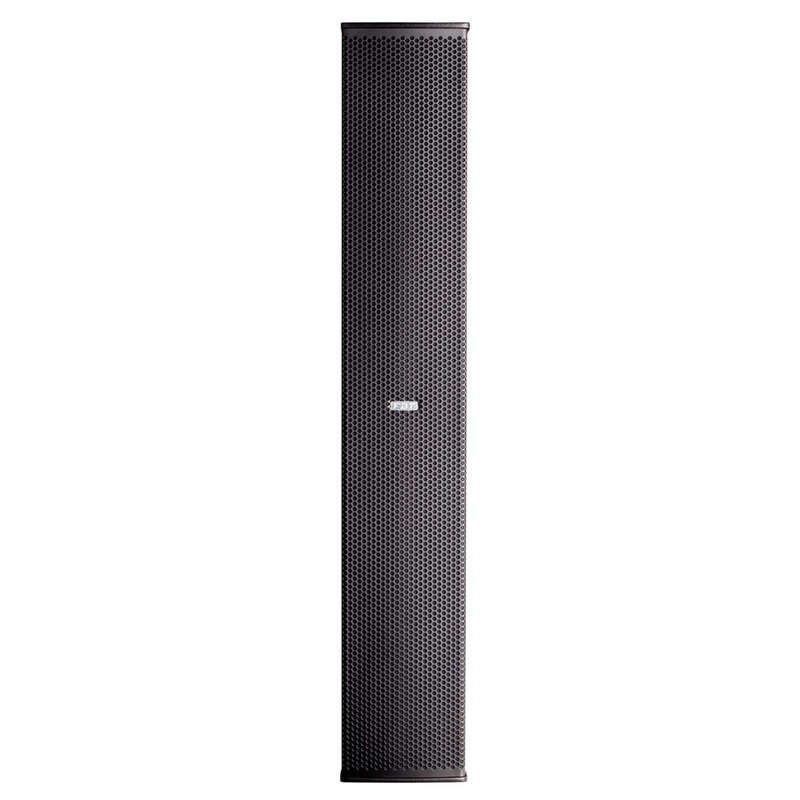

FBT - VERTUSCLA4062A ACTIVE COLUMN LINE ARRAY

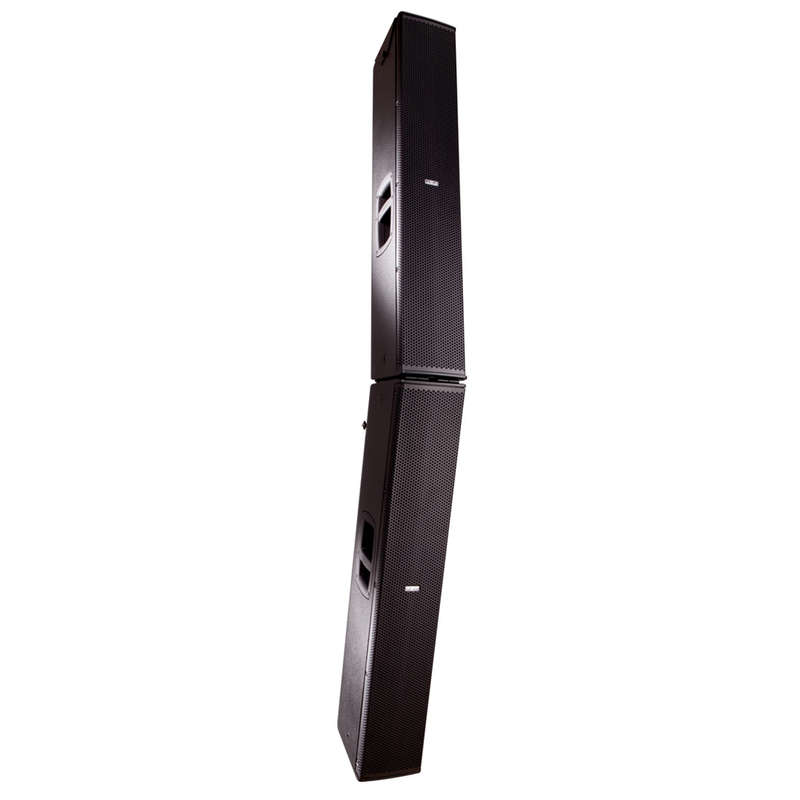

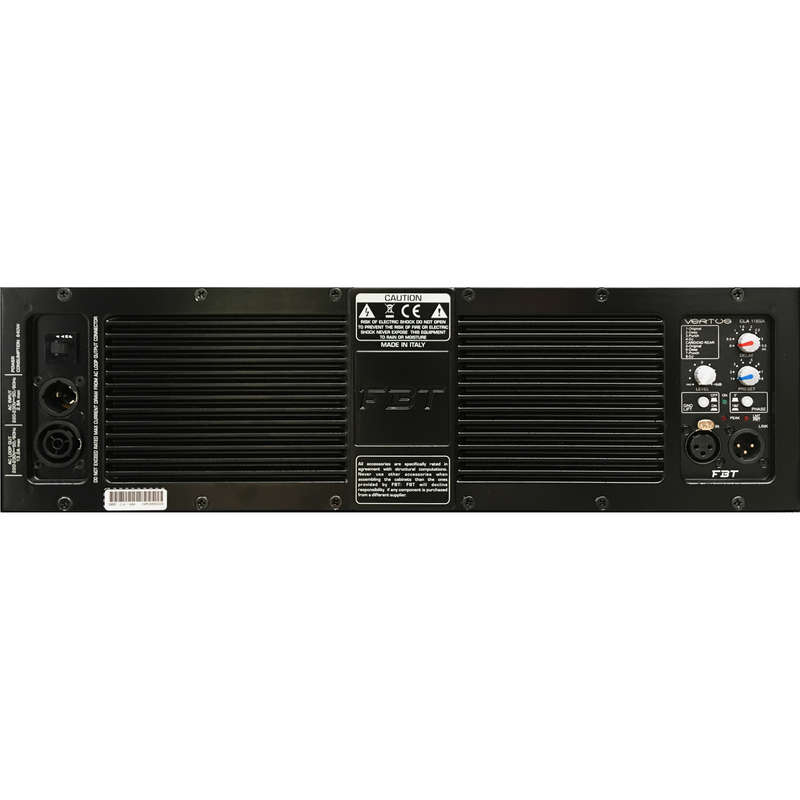

The FBTVERTUS CLA406A two-way bi-amplified speaker system incorporates 4 x 6,5" custom woofer with 1,5" voice coil and 1 x 1,4" B&C HF neodymium driver with 2,5 voice coil. The internal Class D amplifier module constructed in die-cast aluminum delivers 600W for LF, 300W for HF and DSP processor with 8 equalization presets provide unexpected dynamics in a system of these dimensions. The FBT VERTUS CLA 406A shall meet the following performance criteria: frequency response from 65Hz to 20kHz, maximum SPL of 133dB. The FBT VERTUS CLA 406A feature a 0,47" birch plywood with internal metal bracing and the front shall be protected by a heavy duty metal grille. The control panel provides Level control, HF level, Preset, HPfilter, Gnd lift, 3 status led ( on, peak, prt/limit ), XLR input & link and Neutrik Powercon Cable Duplex for power supply. Via optional hardware it is possible to couple two systems with angles of 0°, 10°, 20° and additional accessories are available for system suspension. It can be integrated elegantly and with minimal intrusion into any environment; it is ideal for live applications, assisted by sub CLA118SA, which for fixed installations.

Built-in amplifier LF/HF: 600/300 W RMS

Built-in amplifier peak LF/HF: 1200/600 W

Frequency response: 65Hz - 20KHz -6dB

Low frequency woofer: 4x6.5 - 1.5 coil inch

High frequency driver: 1x1.4 - 2.5 coil - neodymium inch

Maximum SPL cont/peak: 133 dB

Dispersion: 100°x25° H x V

Input impedance: 22 Kohm

Crossover frequency: 1.2 KHz

Ac power requirements: 640 VA

Input connector: XLR with loop

Power cord: 5 mm

Net Dimension (WxHxD) : 190x1235x290 mm

Net weight: 27 kg

Transport Dimension (WxHxD) : 290x1235x390 mm

Transport weight: 32 kg
