Fbt - Vertuscla4062A Active Column Line Array

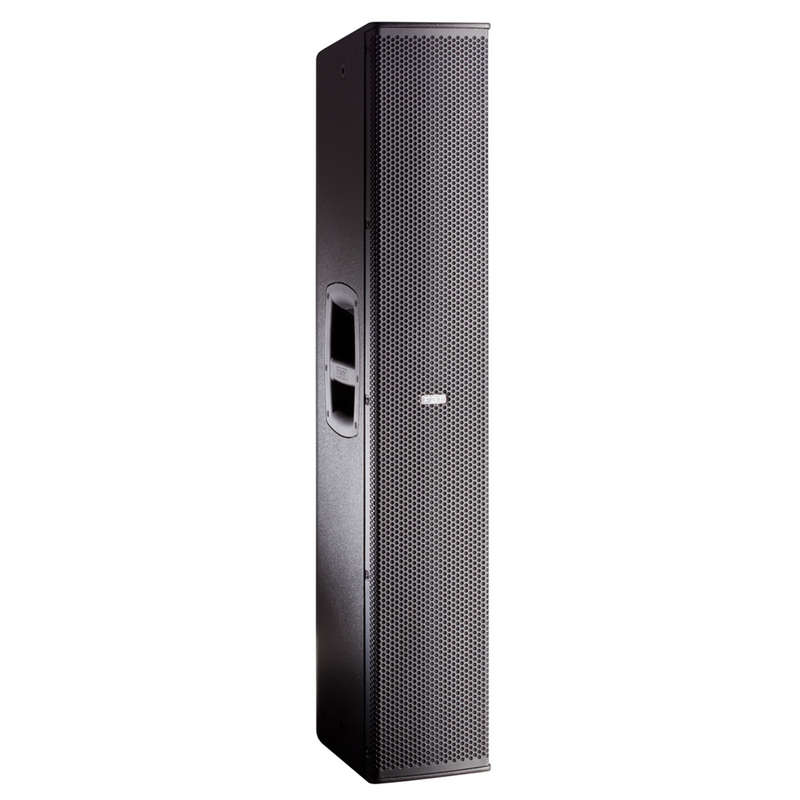

The FBTVERTUS CLA406A two-way bi-amplified speaker system incorporates 4 x 6,5ￂﾔ custom woofer with 1,5ￂﾔ voice coil and 1 x 1,4? B&C HF neodymium driver with 2,5 voice coil. The internal Class D amplifier module constructed in die-cast aluminum delivers 600W for LF, 300W for HF and DSP processor with 8 equalization presets provide unexpected dynamics in a system of these dimensions. The FBT VERTUS CLA 406A shall meet the following performance criteria: frequency response from 65Hz to 20kHz, maximum SPL of 133dB. The FBT VERTUS CLA 406A feature a 0,47? birch plywood with internal metal bracing and the front shall be protected by a heavy duty metal grille. The control panel provides Level control, HF level, Preset, HPfilter, Gnd lift, 3 status led ( on, peak, prt/limit ), XLR input & link and Neutrik Powercon Cable Duplex for power supply. Via optional hardware it is possible to couple two systems with angles of 0ￂﾰ, 10ￂﾰ, 20ￂﾰ and additional accessories are available for system suspension. It can be integrated elegantly and with minimal intrusion into any environment; it is ideal for live applications, assisted by sub CLA118SA, which for fixed installations.

FEATURES:

• 2-way bi-amplified line array column system
• 4 x 165mm (6.5ￂﾔ) custom woofer voice coil 38mm (1.5ￂﾔ)
• B&C HF neodymium driver with 36mm (1.4ￂﾔ) exit and 64mm (2.5ￂﾔ) voice coil
• Waveguide FBT large format with dispersion 100 ￂﾰ H x 25 ￂﾰ V
• Frequency response from 65Hz to 20KHz
• Amplifiers Class D 600Wrms for LF and HF 300Wrms with switching power supply
• Processor DSP with 8 EQ presets
• Control Panel with XLR input and link, volume, presets, filter-HP, ground-lift
• Neutrik powerCON power IN and LINK connectors
• 12mm (1/2ￂﾔ) birch plywood with scratch-resistant coating
• 12 attachment points above and below for the optional hardware that allows the installation of hanging or pair two CLA406A with angle of 0 ￂﾰ - 10 ￂﾰ - 20 ￂﾰ in the vertical plane
• Top side tilted 10 ￂﾰ for the inclination of two columns without damaging gap between the waveguides for a wavefront extremely consistent over the 18kHz
• 35mm (1.3/8ￂﾔ) top hat for stand mount facility
• It is ideal for live applications, assisted by sub CLA 118SA, which for fixed installations

SPECIFICATIONS:

• Built-in amplifier LF/HF: 600/300 W RMS
• Built-in amplifier peak LF/HF: 1200/600 W
• Frequency response: 65Hz - 20KHz -6dB
• Low frequency woofer: 4x6.5 - 1.5 coil inch
• High frequency driver: 1x1.4 - 2.5 coil - neodymium inch
• Maximum SPL cont/peak: 133 dB
• Dispersion: 100ￂﾰx25ￂﾰ H x V
• Input impedance: 22 Kohm
• Crossover frequency: 1.2 KHz
• Ac power requirements: 640 VA
• Input connector: XLR with loop
• Power cord: 5 mm
• Net Dimension (WxHxD) : 190x1235x290 mm
• Net weight: 27 kg
• Transport Dimension (WxHxD) : 290x1235x390 mm
• Transport weight: 32 kg
• :
