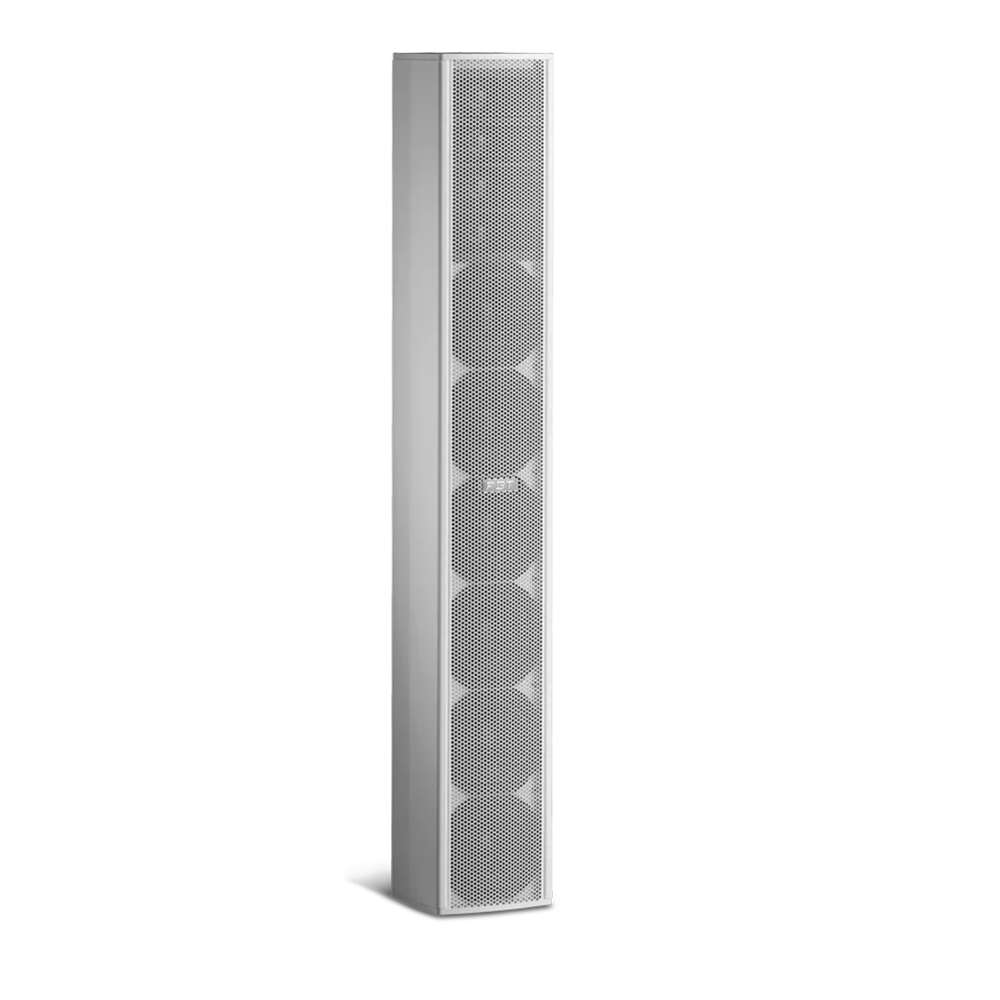

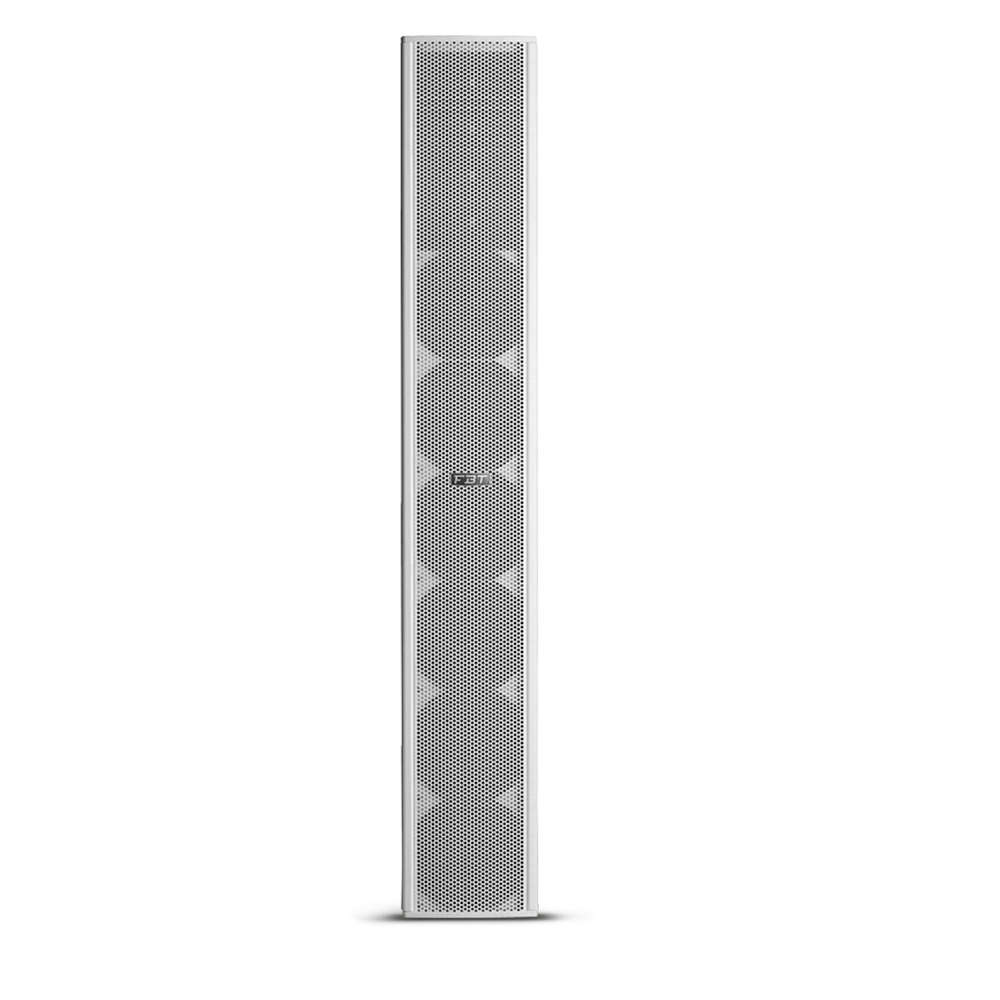

FBT VERTUSCLA604 6X4" + 4X1." PASSIVE COLUMN LINE ARRAY 250 RMS WHITE

VERTUS CLA 604 is a passive 2-way column line array speaker designed for fixed installations in reverberant indoor environments. It incorporates six 4 custom woofers with 1 voice coils and four 1 neodymium dome tweeters mounted on a waveguide, offering controlled vertical dispersion and exceptionally wide horizontal coverage for improved voice and music intelligibility. The enclosure is constructed from extruded aluminum with a perforated steel grille and features an integrated fire-resistant cable. The CLA 604 supports both low-impedance (8 Ohm) and 100V operation with optional transformer taps at 100W and 50W. Connection is via a 4-wire through-terminal, and mounting is simplified with included wall bars. The unit is EN 54-24 certified for voice alarm systems. Available in black or white, it is ideal for conference spaces, auditoriums, churches, and meeting venues requiring full-range performance with compact form factor.

FEATURES:

• Configuration: 2-way
• Low Frequency Woofer: 6 x 4
• High Frequency Driver: 4 x 1— 1.4 VC
• Recommended Amplifier: 250W RMS
• Maximum SPL: 110 dB
• Material: Birch plywood extruded aluminum with perforated steel grille

SPECIFICATIONS:

• Configuration: 2 ways
• Recommended amplifier: 250W RMS
• Long Term power: 100W
• Short term power: 500W
• Nominal impedance: 8 Ohm
• Frequency response: 140Hz — 20kHz @ -6dB
• Low Frequency woofer: 6 × 4" — 1" VC
• High frequency driver: 4 × 1" — 1" VC
• Maximum SPL cont./peak: 110dB (100W, 1m)
• Dispersion: 200° × 70° (500Hz) H×V
• Dispersion: 190° × 40° (1kHz) H×V
• Dispersion: 120° × 15° (2kHz) H×V
• Dispersion: 110° × 30° (4kHz) H×V
• Input connector: Cable, 4 connectors
• Net Dimensions (W × H × D): 130 × 849 × 133 mm
• Net Weight: 10.5kg
• Transport Dimensions (W × H × D): 245 × 930 × 220 mm
• Transport Weight: 12kg
