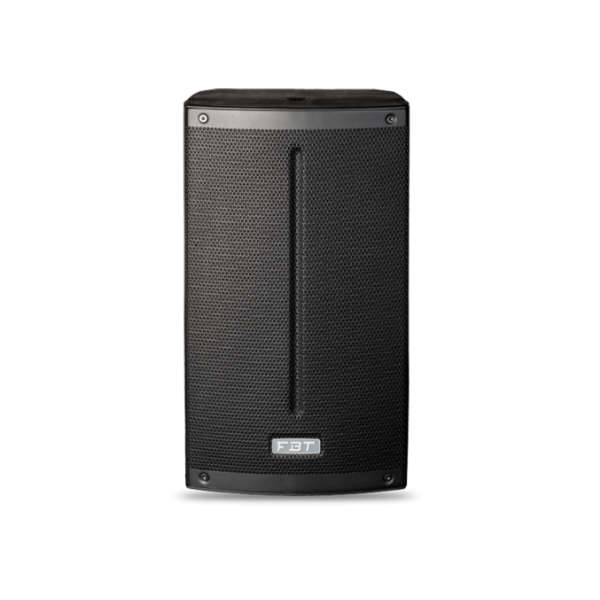

FBT – X-LITE112 12″ PASSIVE SPEAKER 400W RMS

The FBT X-LITE 112 series speakers feature lightweight, yet rugged gas injected molded polypropylene cabinet construction. Available in black finish the FBT X-LITE 112 series speakers modern cabinet appearance provides fixed installations with an elegant design that blends into any decor.

The asymmetrical shape of the FBT X-LITE 112 cabinet also allows use as a floor stage monitor. The FBT X-LITE 112 is two way design incorporating an 12 low frequency woofer and 1 HF compression driver coupled to a 90°H x 60°V constant directivity horn. With a frequency range of 55Hz — 20kHz the FBT X-LITE 112 speakers provide high fidelity sound for both speech and music applications with a maximum SPL of 126.5dB.

Ideal for small fixed installations the FBT X-LITE 112 speaker have an impedance of 8 Ohm and the internal crossover is at a fixed frequency of 1.8kHz. The control panel features 2 x NL4 Neutrik speakon. 4 x M10 rigging points built into the cabinet along with the optional mounting brackets allow the FBT X-LITE 112 speaker to be surface mounted on walls or ceilings. A standard 1,38 speaker stand socket allows the FBT X-LITE 112 to be mounted on speaker stand. A front face steel grille protects the speaker from external damage.

SPECIFICATIONS:

• CONFIGURATION: 2
• RECOMMENDED AMPLIFIER: 400W RMS
• LONG TERM POWER: 200W
• SHORT TERM POWER: 800W
• NOMINAL IMPEDANCE: 8Ohm
• FREQUENCY RESPONSE: 55Hz - 20kHz
• LOW FREQUENCY WOOFER: 12 - 2.5 coil inch
• HIGH FREQUENCY DRIVER: 1 - 1.4 coil inch
• SENSITIVITY (@1W/1M): 97dB
• MAXIMUM SPL CONT/PEAK: 123.5 / 126.5dB
• DISPERSION: 90° x 60° HxV
• CROSSOVER FREQUENCY: 1.8kHz
• RECOMMENDED HP FILTER: HP 45Hz - 12/24dB oct
• RECOMMENDED EXTERNAL FILTER: FBT DSP Processor
• INPUT CONNECTOR: 2 x Speakon
• NET DIMENSION (WXHXD): 356 x 619 x 357 mm
• NET WEIGHT: 16.4 Kg
